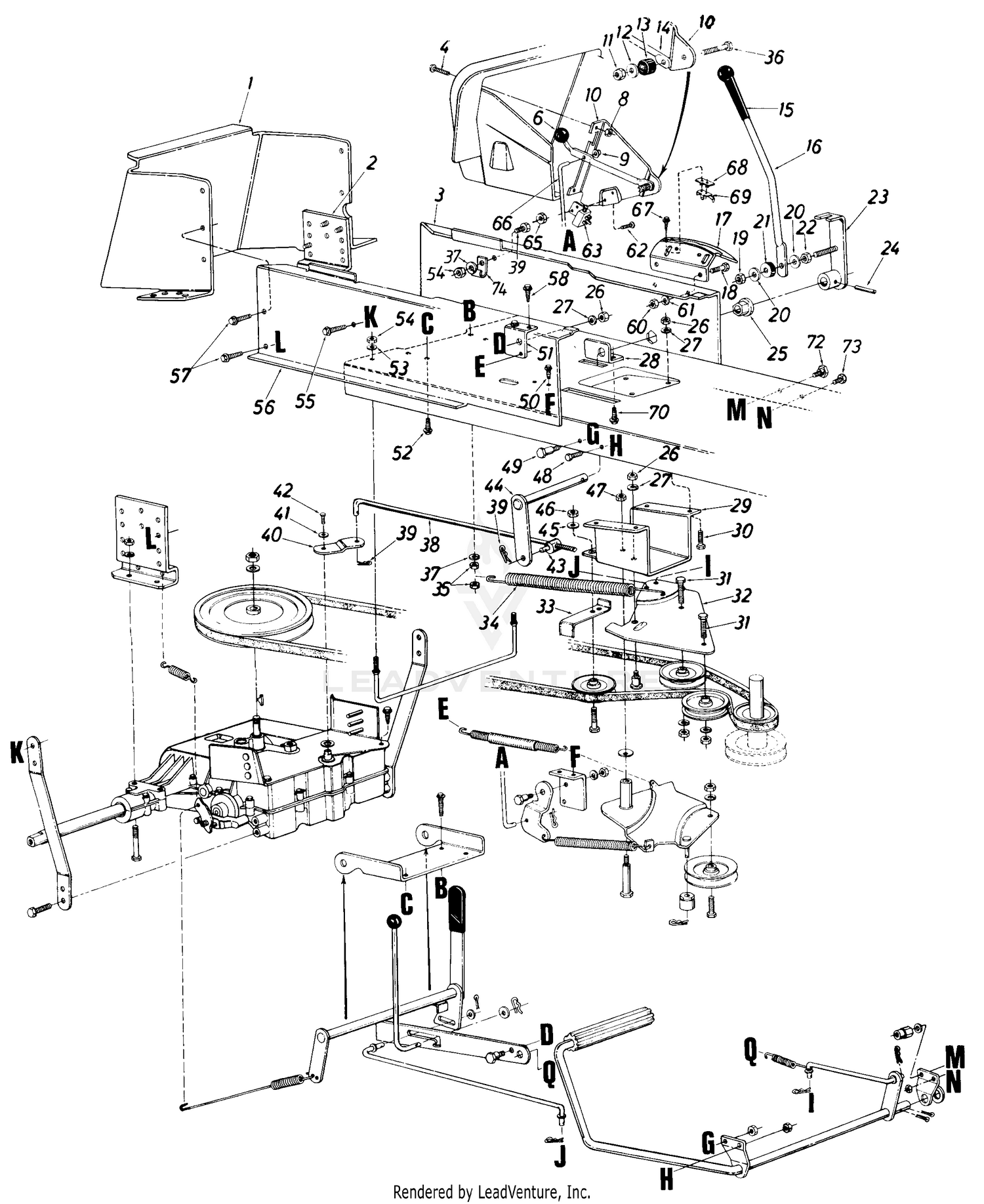

| Ref | Part Number | Description |
|---|
| 1 |
13813B |
HITCH PLATE Not Available Price: |
| 2 |
14067 |
Transaxle Support Bracket Price: Call Us |
| 3 |
16445A |
Side Panel Upper Frame L. H. Price: Call Us |
| 4 |
710-0286 |
Truss. Mach. Scr. 1/4-20 x .50" Lg. Price: $3.86 |
| 8 |
712-0271 |
Hex Sems Nut 1/4 20 Thd Price: $3.78 |
| 9 |
726-0106 |
PUSH NUT This part replaces 7260106. Price: $3.37 |
| 10 |
13950A |
BRACKET-CL Not Available Price: |
| 11 |
912-0107 |
Hex L-Nut 1/4-20 Thd This part replaces 712-0107. Price: $4.06 |
| 12 |
736-0173 |
Fl-Wash .281" I.D. x .734" O.D. x .063 Thk. Price: $3.76 |
| 13 |
735-0126A |
RUBBER WASHER Not Available This part replaces 735-0126. Price: |
| 14 |
747-0513 |
BLADE CLUTCH LEVER Not Available Price: |
| 15 |
720-0223 |
Grip Price: $12.89 |
| 16 |
747-0317 |
Shift Lever Price: Call Us |
| 17 |
17313 |
SHIFT BRACKET Not Available Price: |
| 18 |
710-0118 |
Hex Bolt 5/16-18 x .75" Lg. Price: $3.76 |
| 19 |
912-0158 |
Hex Cent. L.-Nut 5/16-18 Thd. This part replaces 712-0158. Price: $2.83 |
| 20 |
736-0159 |
Fl-Wash. .344" I.D. x .875" O.D. x .063 Thk. Price: $3.71 |
| 21 |
735-0126A |
RUBBER WASHER Not Available This part replaces 735-0126. Price: |
| 22 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 24 |
715-0114 |
Spring Pin Spiral 1/4" Dia. x 1.5" Lg. Price: $8.68 |
| 25 |
941-0225 |
FLANGE BEARING This part replaces 741-0225. Price: $6.55 |
| 26 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 27 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 28 |
14035 |
Speed Control Shaft Brkt. Price: Call Us |
| 29 |
14063 |
BRACKET-CL Not Available Price: |
| 30 |
710-0376 |
Hex Bolt 5/16-18 x 1.0" Lg. Price: $3.66 |
| 31 |
710-0459A |
Hex Cap Screw 3/8-24 x 1.5 This part replaces 710-0459. Price: $6.50 |
| 32 |
17311 |
Idler Bracket Ass'y. Price: Call Us |
| 33 |
13819 |
BEL GUARD Not Available Price: |
| 34 |
932-0307A |
EXTENSION SPRING Not Available This part replaces 732-0307A. Price: |
| 35 |
712-0291 |
Hex Cent. L-Nut 1/4-20 Thd. Price: $3.93 |
| 36 |
710-0258 |
Hex Bolt 1/4-20 x .625" Lg. Price: $3.63 |
| 37 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 38 |
747-0341 |
Shift Link Price: Call Us |
| 39 |
714-0145 |
Hairpin Cotter 3/8" Price: $4.42 |
| 40 |
14192 |
Shifter Bracket Price: Call Us |
| 41 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 43 |
911-0198 |
Ferrule This part replaces 711-0198. Price: $12.05 |
| 44 |
14034 |
SHAFT ASSEMBLY Not Available Price: |
| 45 |
736-0300 |
Fl-Wash. .385" I.D. x .87" O.D. x .060 Thk. Price: $3.93 |
| 46 |
712-0214 |
Hex Cent. L-Nut 3/8-24 Thd. Price: $5.94 |
| 47 |
712-0375 |
Hex Cent. L-Nut 3/8-16 Thd. Price: $4.02 |
| 48 |
710-0201 |
HEX SCREW 3/8-16 x .625 GR5 Not Available Price: |
| 49 |
738-0143 |
SHOULDER SCREW .498 DIA x .340 Price: $3.93 |
| 50 |
710-0599 |
Hex Thd. Rolling Scr. 1/4-20 x.50" Lg. Price: $3.86 |
| 51 |
13833 |
PARKING BRAKE CAM MTG. BRKT. Not Available Price: |
| 52 |
710-0599 |
Hex Thd. Rolling Scr. 1/4-20 x.50" Lg. Price: $3.86 |
| 53 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 54 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 55 |
710-0773 |
Hex Wash. Hd. TT-Tap Scr. 3/8-16 x .5" Lg. Price: $6.23 |
| 56 |
13848D |
Side Panel Upper Frame-R.H. Price: Call Us |
| 57 |
710-0600 |
SCREW 5/16-24 x .500 Not Available Price: |
| 58 |
710-0599 |
Hex Thd. Rolling Scr. 1/4-20 x.50" Lg. Price: $3.86 |
| 60 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 61 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 62 |
710-0473 |
Truss Mach. Scr. #10-24 x .50" Lg. Price: $3.90 |
| 63 |
925-0465A |
Safety Switch This part replaces 725-0465A. Price: $26.56 |
| 65 |
712-0121 |
Hex Nut #10-24 Thd. Price: $3.75 |
| 66 |
747-0307 |
DECK CONTROL ROD Not Available Price: |
| 67 |
710-0227 |
Hex Wash. Hd. Scr. #8 x .50" Lg. Price: $3.90 |
| 68 |
926-0320 |
Insulatop Nut Plate This part replaces 726-0222. Price: $6.01 |
| 69 |
753-0580 |
KIT-SAFETY SWITCH Not Available This part replaces 725-0758. Price: |
| 70 |
710-0726 |
Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg. Price: $3.82 |
| 72 |
738-0143 |
SHOULDER SCREW .498 DIA x .340 Price: $3.93 |
| 73 |
710-0201 |
HEX SCREW 3/8-16 x .625 GR5 Not Available Price: |
| 74 |
726-0175 |
CLAMP Not Available Price: |
