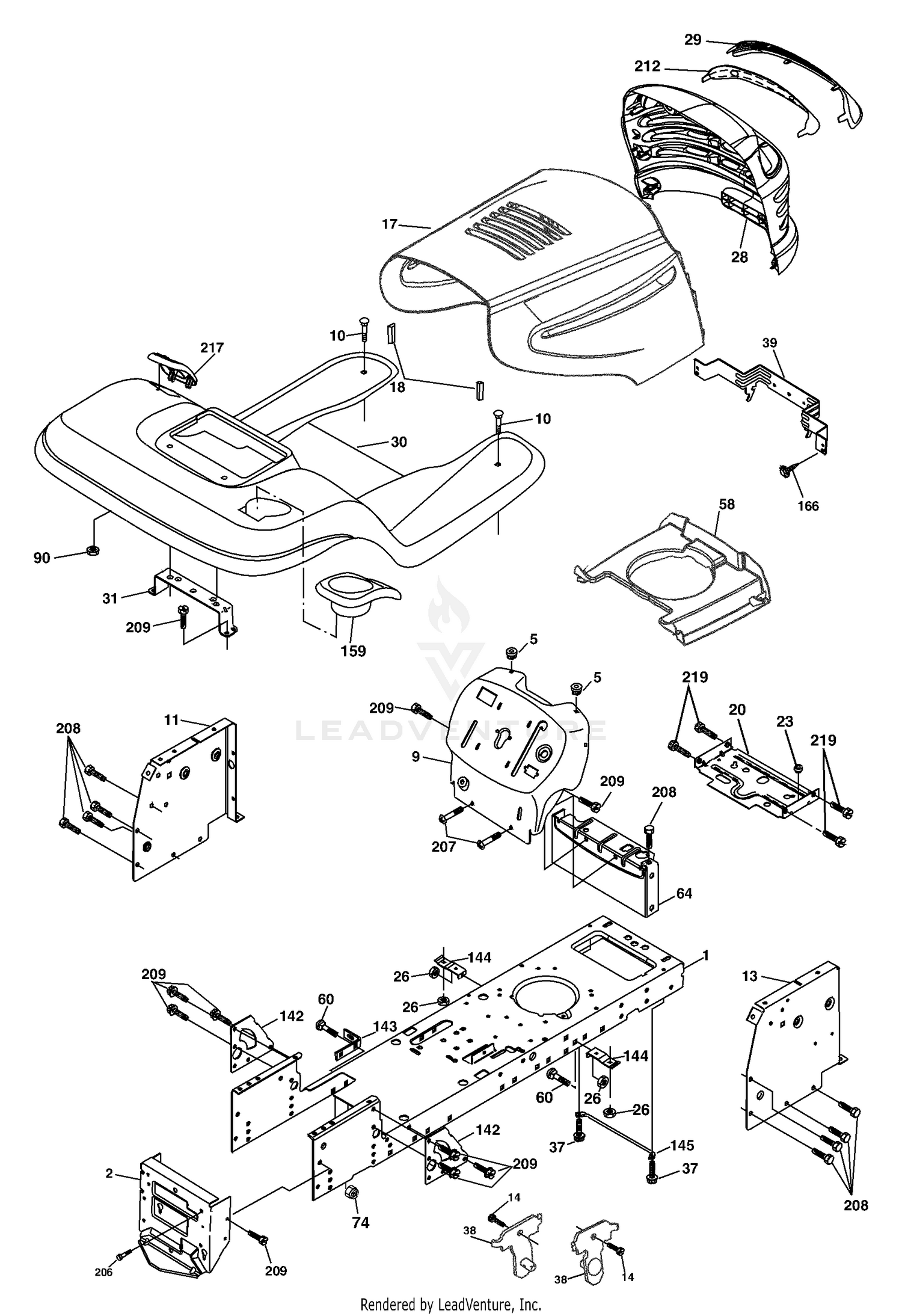

| Ref | Part Number | Description |
|---|
| 1 |
174619 |
Chassis Price: Call Us |
| 1 |
42559 |
STORAGE TUBE - MANUAL Price: $13.47 |
| 2 |
176554 |
Drawbar Price: Call Us |
| 2 |
42560 |
CLAMP-R Price: $18.20 |
| 3 |
322-3 |
SCREW-HH This part replaces 20-24-AGD. Price: $0.79 |
| 4 |
3256-23 |
WASHER-PLAIN This part replaces 24-10-BD. Price: $0.28 |
| 5 |
104-4620 |
SEAT This part replaces 92-1180. Price: $273.15 |
| 5 |
155272 |
Bumper Hood/Dash Price: Call Us |
| 6 |
HY3225 |
DISCONTINUED This part replaces 20-26-AGD. Price: Call Us |
| 7 |
94-8534 |
CONSOLE ASM Price: $391.72 |
| 8 |
94-7134 |
DECAL Price: $57.57 |
| 9 |
168337X012 |
Dash P/L Price: Call Us |
| 9 |
94-8535 |
PANEL ASM Price: $149.31 |
| 10 |
72140608 |
Bolt Carriage 3/8-16 x 1 Price: Call Us |
| 10 |
94-7204 |
ROD-PROP, SEAT Price: $37.74 |
| 11 |
174996 |
Panel Dash Lh Price: Call Us |
| 11 |
94-7203 |
BRACKET Price: $30.73 |
| 12 |
3230-2 |
BOLT-CARR This part replaces 25-25-AGD. Price: $0.47 |
| 13 |
175255 |
Panel Dash Rh Price: Call Us |
| 13 |
321-32 |
SCREW-HH This part replaces 20-2-AGD. Price: $0.25 |
| 14 |
17490608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 14 |
41230 |
R-Clamp Price: Call Us |
| 15 |
95-2164-03 |
DISCONTINUED This part replaces 95-2164. Price: Call Us |
| 16 |
117-7940-03 |
ANGLE-BOX, SEAT This part replaces 94-7090. Price: $96.21 |
| 17 |
183394X505 |
Hood Price: Call Us |
| 17 |
95-2166-01 |
ACCESS PANEL ASM This part replaces 95-2166. Price: $43.45 |
| 18 |
126938X |
Bumper Hood Price: Call Us |
| 18 |
74-5950 |
LATCH-SWELL Price: $21.28 |
| 19 |
95-2178 |
TRIM Price: $28.99 |
| 20 |
180679 |
Plate Battery Price: Call Us |
| 20 |
94-7056 |
DISCONTINUED Price: Call Us |
| 21 |
356303 |
WASHER Price: $13.44 |
| 22 |
94-7046-03 |
HIP RESTRAINT ASM This part replaces 94-7046. Price: $399.72 |
| 23 |
124028X |
Bushing Price: Call Us |
| 23 |
93-6498 |
FENDER-REAR Price: $312.87 |
| 24 |
94-8532 |
RH FENDER ASM Price: $511.87 |
| 25 |
94-7074 |
FLARE-FENDER, RH Price: $111.01 |
| 26 |
21-98-AGOD |
Mech. Screw, No.10 NC x 5/8" Price: Call Us |
| 26 |
73800600 |
Nut Lock Hex W/Ins 3/8-16 unc Price: Call Us |
| 27 |
95-2163-03 |
PANEL-RH SEAT BOX This part replaces 95-2163. Price: $117.52 |
| 28 |
2412-104 |
CLAMP-R Price: $2.37 |
| 29 |
183549X599 |
Lens Grille Price: Call Us |
| 29 |
3217-6 |
NUT-HEX This part replaces 22-12-AJD. Price: $1.19 |
| 30 |
179131X505 |
Fender Footrest STLT Pnt Price: Call Us |
| 30 |
95-2162 |
DISCONTINUED Price: Call Us |
| 31 |
139976 |
Bracket Fender Price: Call Us |
| 31 |
94-7135 |
DISCONTINUED Price: Call Us |
| 32 |
322-1 |
SCREW-HH This part replaces 20-22-AGD. Price: $0.22 |
| 33 |
94-7042 |
DISCONTINUED Price: Call Us |
| 34 |
42611 |
DISCONTINUED Price: Call Us |
| 35 |
3296-42 |
NUT-LOCK, NI This part replaces 32146-17. Price: $0.28 |
| 36 |
94-7059-03 |
LH SEAT PANEL ASM This part replaces 94-7059. Price: $244.73 |
| 37 |
17490508 |
Screw Thdrol 6/16-18 x 1/2 TYT Price: Call Us |
| 37 |
94-7078 |
DISCONTINUED Price: Call Us |
| 38 |
175710 |
Bracket Asm Pivot Mower Rear Price: Call Us |
| 38 |
94-8533 |
DISCONTINUED Price: Call Us |
| 39 |
174714 |
Bracket Pivot Price: Call Us |
| 39 |
92-3911 |
SCREW-HSBH Price: $6.00 |
| 40 |
62-5550 |
DECAL Price: $9.32 |
| 41 |
94-8530 |
DISCONTINUED Price: Call Us |
| 42 |
94-7133 |
DECAL Price: $44.18 |
| 43 |
87-2120 |
HEADLIGHT Price: $118.33 |
| 44 |
94-7143 |
SCREW Price: $0.76 |
| 58 |
184462 |
Duct Air Price: Call Us |
| 60 |
72140606 |
Bolt RDHD Sqnk 3/8-16 unc x 3/4 Price: Call Us |
| 64 |
154798 |
Dash Lower STLT Price: Call Us |
| 74 |
73680600 |
Nut Crownlock 3/8-16 unc Price: Call Us |
| 90 |
124346X |
Nut Self Thd Wsh - HD 1/4 Zinc Price: Call Us |
| 142 |
175702 |
Plate Reinforcement STLT Price: Call Us |
| 143 |
186689 |
Bracket Swaybar Chassis Price: Call Us |
| 144 |
175582 |
Bracket Footrest Step-thru Price: Call Us |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 159 |
179950X428 |
Cupholder Price: Call Us |
| 166 |
171875 |
Screw Hwhd Hi-Lo #13-16 x 3/4 Price: Call Us |
| 206 |
170165 |
Bolt Shoulder 5/16-18 Price: Call Us |
| 207 |
17670508 |
Screw Thdrol 5/16-18 x 1/2 Price: Call Us |
| 208 |
17670608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 209 |
17000612 |
Screw Hexwsh Thdr 3/8-16 x 3/4 Price: Call Us |
| 212 |
183550 |
Insert Lens Refl. Price: Call Us |
| 217 |
179132X428 |
Console Fuel Window Price: Call Us |
