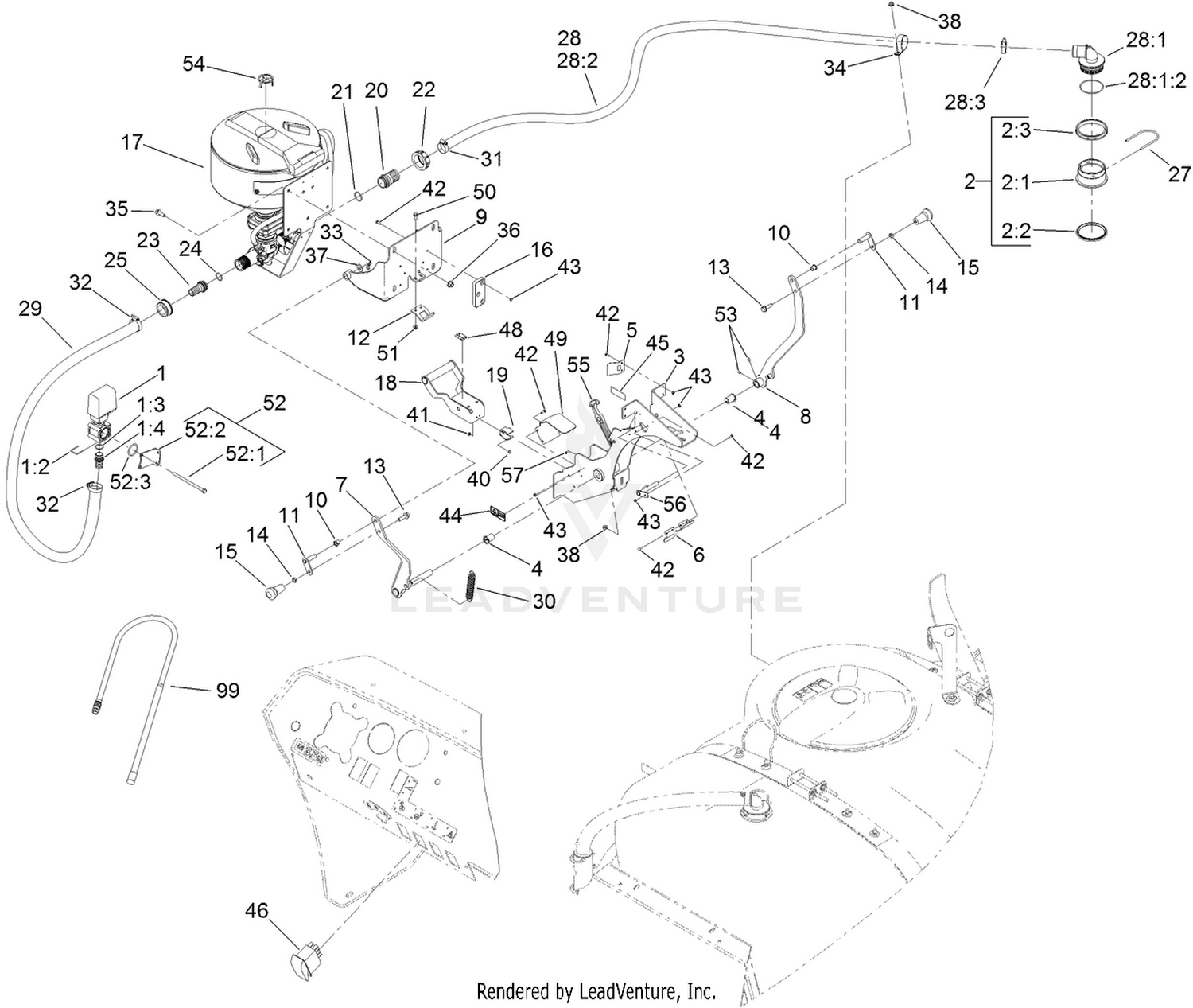

Eductor Kit
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 119-0488 | VALVE ASM Price: $807.79 |
| 2 | 117-7851 | BULKHEAD ASM Price: $108.56 |
| 3 | 120-8643-03 | EDUCTOR-MOUNT Price: $291.38 |
| 4 | 100-8541 | BUSHING-A ARM Price: $3.49 |
| 5 | 119-4951 | TAB-SPRING Price: $34.92 |
| 6 | 119-4962 | PLATE-STRIKE Price: $27.19 |
| 7 | 119-4907-03 | ARM-PIVOT, LH Price: $115.48 |
| 8 | 119-4908-03 | ARM-PIVOT, RH Price: $115.48 |
| 9 | 119-4912-03 | PLATE-PIVOT Price: $150.18 |
| 10 | 256-257 | BUSHING-NYLINER Price: $3.19 |
| 11 | 120-0718 | PIVOT-PIN Price: $26.04 |
| 12 | 119-4928 | BRACKET-LATCH Price: $15.02 |
| 13 | 3234-24 | SCREW-HHF Price: $3.19 |
| 14 | 3218-3 | NUT-JAM Price: $0.25 |
| 15 | 99-7981 | KNOB-GRIP, SOFT Price: $41.72 |
| 16 | 119-4963 | PAD-WEAR Price: $42.68 |
| 17 | 119-0477 | CLEANLOAD ASM Price: $2,390.05 |
| 18 | 120-8689-03 | HANDLE-ASM Price: $92.28 |
| 19 | 119-4937 | CLIP-SPRING Price: $21.31 |
| 20 | 117-7877 | HOSEBARB Price: $9.93 |
| 22 | 117-7879 | NUT-FLY Price: $8.69 |
| 23 | 117-7973 | HOSEBARB Price: $7.44 |
| 24 | 110-5239 | O-RING Price: $5.60 |
| 25 | 110-5247 | DISCONTINUED Price: Call Us |
| 27 | 117-7996 | FORK Price: $9.74 |
| 29 | 119-0473 | HOSE-SUPPLY Price: $119.63 |
| 30 | 120-0722 | SPRING-EXTENSION Price: $21.48 |
| 31 | 41327 | CLAMP-HOSE Price: $3.12 |
| 32 | 2412-34 | CLAMP-HOSE Price: $2.14 |
| 33 | 3290-467 | PIN-HAIR Price: $0.27 |
| 34 | 2412-96 | CLAMP-R Price: $3.46 |
| 35 | 3234-11 | SCREW-HHF Price: $1.23 |
| 36 | 32128-43 | NUT-FLANGE Price: $0.94 |
| 37 | 106-9888 | WASHER-FLAT Price: $0.49 |
| 38 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 40 | 3250-12 | SCREW-PPH Price: $0.25 |
| 41 | 3296-2 | NUT-LOCK, NI Price: $1.89 |
| 42 | 1-807533 | BOLT-CARR Price: $0.99 |
| 43 | 3296-12 | NUT-LOCK, NI Price: $1.29 |
| 44 | 93-6674 | DECAL-WARNING Price: $6.59 |
| 45 | 119-4986 | DECAL-REGULATORY Price: $4.16 |
| 46 | 100-8490 | SWITCH-ROCKER, ON-NONE-ON Price: $33.76 |
| 48 | 119-4988 | DECAL-LOCK Price: $24.30 |
| 49 | 120-8637 | PLATE-GUIDE Price: $26.56 |
| 50 | 3234-4 | SCREW-HHF Price: $0.50 |
| 51 | 32128-33 | NUT-HF Price: $0.25 |
| 53 | 3245-41 | SCREW-HSH Price: $2.09 |
| 54 | 120-0765 | STRAINER-EDUCTOR Price: $27.38 |
| 55 | 115-8215 | DRAW LATCH ASM Price: $63.51 |
| 56 | 120-8640 | LATCH-ROD Price: $75.26 |
| 57 | 115-9830 | SCREW-HSBH Price: $0.42 |
