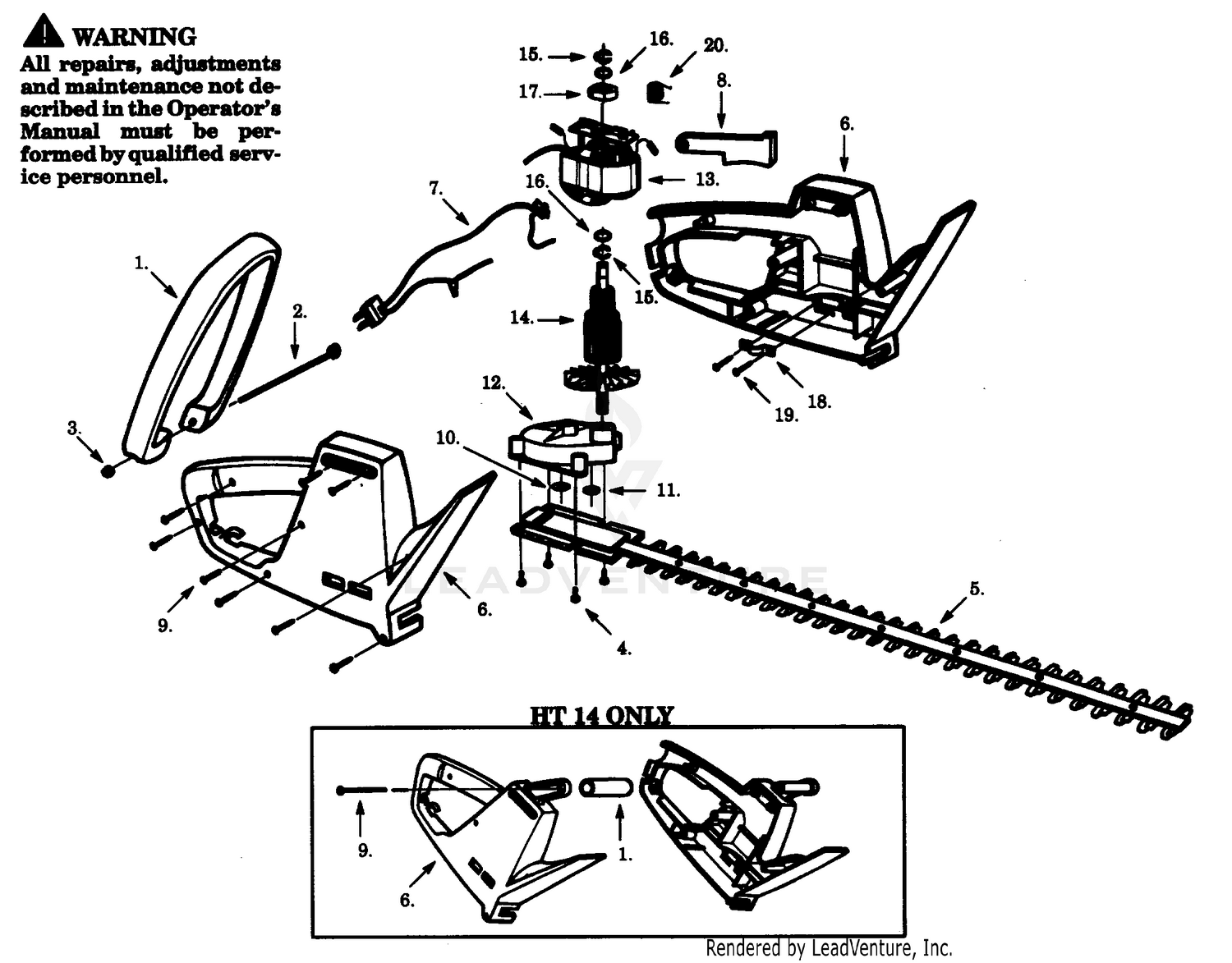

ASSEMBLY
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530401058 | MODELS HT17, HT19, HT22 Price: $6.99 |
| 1 | 534101430 | MODEL HT14 Price: $1.99 |
| 2 | 534101450 | Screw-Handle Price: $1.99 |
| 3 | 534235800 | Locknut-Handle Price: $3.33 |
| 4 | 534101640 | Screw-Blade Price: $0.99 |
| 5 | 530036312 | Blade Ass'y. - 14" Price: $44.99 |
| 5 | 530036313 | Blade Ass'y. - 17" Price: $44.99 |
| 5 | 530036316 | Blade Ass'y. - 19" Price: $20.88 |
| 5 | 530036317 | Blade Ass'y. - 22" Price: $49.99 |
| 6 | 534101210 | MODEL HT14 Price: $3.33 |
| 7 | 530402073 | Switch/Plug Ass'y. Price: $3.33 |
| 8 | 534101380 | Trigger Switch Price: $1.99 |
| 9 | 534184700 | Screw-Housing Price: $1.99 |
| 11 | 534812100 | Drive Washer Price: $1.99 |
| 13 | 534100680 | Field Ass'y. Price: $3.33 |
| 14 | 530036407 | Armature Ass'y. Price: $3.33 |
| 15 | 530036314 | Retaining Ring Price: $0.99 |
| 16 | 534228804 | Washer Price: $0.99 |
| 17 | 534101130 | Bearing Price: $3.33 |
| 18 | 534101120 | Clamp Price: $0.99 |
| 19 | 530015476 | Screw Price: $1.99 |
| 20 | 534036198 | Spring-Brush Price: $1.99 |
| 89 | X-80-1 | Nut-Hex. Price: Call Us |
| 90 | X45-3 | Key, Woodruff Price: Call Us |
| 91 | 277595 | Nut-Lock Price: Call Us |
| 92 | 4802514 | Flywheel (Includes Magnets Ring Gear) Price: Call Us |
