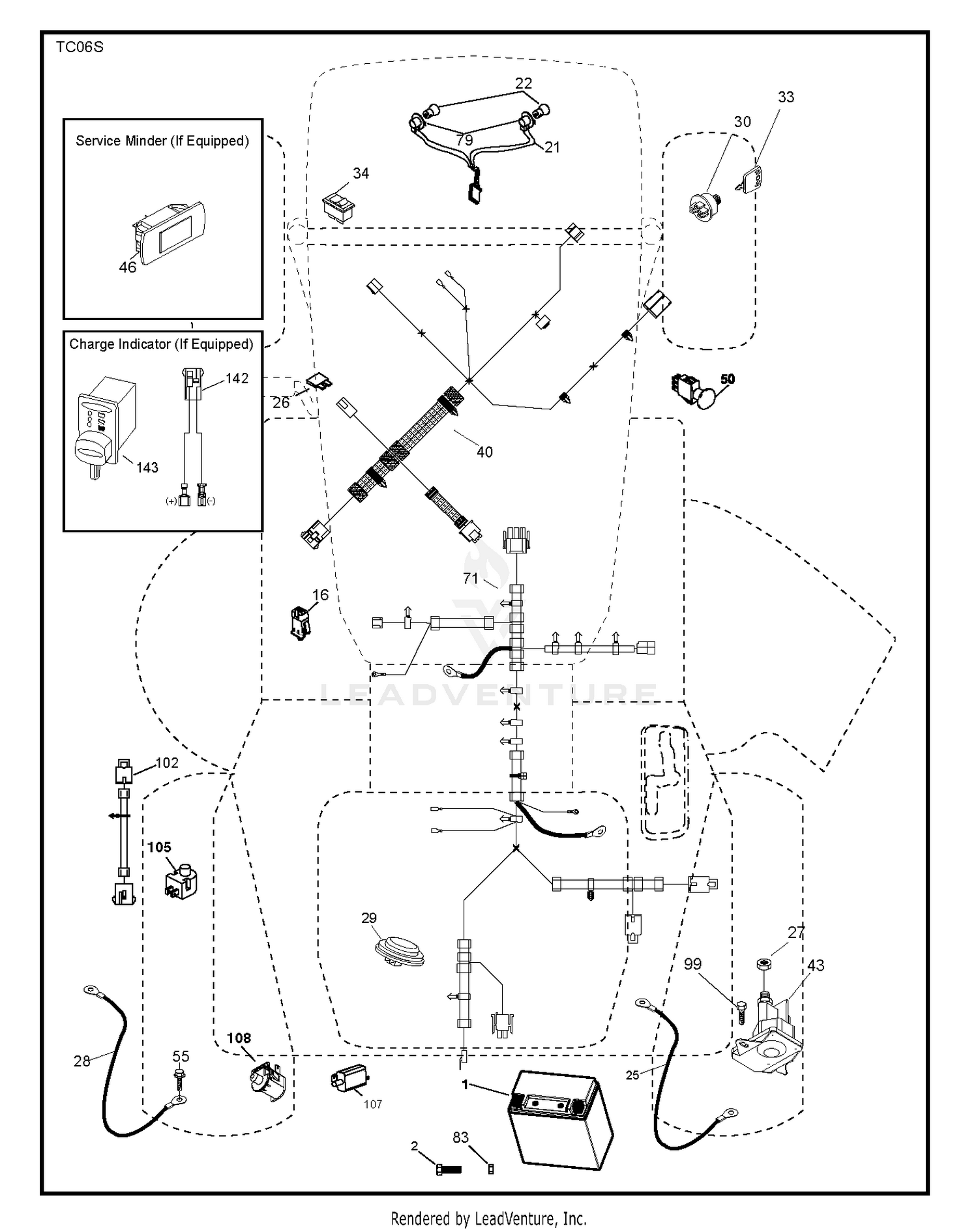

| Ref | Part Number | Description |
|---|
| 1 |
536147701 |
AGM BATTERY This part replaces 532437157. Price: $119.99 |
| 1 |
61-8140-01 |
SEAT SUPP.COVER WA This part replaces 61-8140. Price: $296.26 |
| 2 |
46-8560 |
SCREW-HHFTF Price: $1.79 |
| 2 |
596320101 |
Bolts This part replaces 532440923. Price: $1.99 |
| 3 |
68-7320 |
DISCONTINUED Price: Call Us |
| 4 |
67-1710 |
DECAL-WARNING Price: $7.83 |
| 6 |
38-4020 |
SEAT MTG WA Price: $170.51 |
| 7 |
27-4720 |
SHAFT-PIVOT, SEAT Price: $32.27 |
| 8 |
43-8480 |
DECAL-DANGER Price: $6.49 |
| 9 |
68-7330 |
DECAL - CAUTION Price: $16.56 |
| 10 |
27-7310 |
DECAL-REFUELING Price: $27.52 |
| 11 |
3290-54 |
RIVET-BLIND This part replaces 3269-16. Price: $0.25 |
| 12 |
59-9740 |
FLEX DRAW LATCH ASM This part replaces 249-39. Price: $36.89 |
| 13 |
2412-42 |
CLAMP-HOSE Price: $2.65 |
| 14 |
44-9050 |
HOSE Price: $70.98 |
| 15 |
3217-6 |
NUT-HEX Price: $1.19 |
| 16 |
20-4840 |
CLAMP-MUFFLER Price: $15.06 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 17 |
27-7180 |
CAP Price: $70.51 |
| 18 |
44-8950-03 |
AIR CLEANER TUBE This part replaces 44-8950. Price: $53.15 |
| 19 |
27-7160 |
DECAL-INSTALLATION Price: $19.89 |
| 20 |
27-7100 |
AIR CLEANER ASM Price: $323.10 |
| 21 |
32107-11 |
NUT-SQUARE Price: $0.22 |
| 21 |
532400252 |
HARNESS.LIGHT W/4152J BULBS Price: $19.99 |
| 22 |
3258-19 |
SCREW Price: $0.42 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 23 |
27-7170 |
MOUNTING BAND ASM Price: $48.11 |
| 24 |
322-3 |
SCREW-HH Price: $0.79 |
| 25 |
108-3833 |
FILTER-AIR This part replaces 27-7110. Price: $26.73 |
| 25 |
583556401 |
CABLE.RED.20.8AWG.M6.CRD This part replaces 532441382. Price: $14.99 |
| 26 |
27-7120 |
NUT AND GASKET ASM Price: $15.55 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
27-7140 |
SKIRT-BAFFLE Price: $85.92 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
27-7130 |
CLAMP ASM Price: $49.80 |
| 29 |
27-7150 |
A/C CUP ASM Price: $82.89 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 30 |
32128-20 |
NUT-HF Price: $0.99 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 31 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 32 |
37-9770 |
DISCONTINUED Price: Call Us |
| 33 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 33 |
532411935 |
KEY.CHAIN.BLISTER.PACK.GEN.INT Price: $8.99 |
| 34 |
38-3170 |
DISCONTINUED Price: Call Us |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 35 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 38 |
32128-33 |
NUT-HF Price: $0.25 |
| 39 |
29-6930 |
DISCONTINUED-SEE PB#936 Price: Call Us |
| 40 |
3-6685 |
SPRING Price: $10.99 |
| 40 |
587268901 |
HARNESS.DASH.EL.SRD.CRD.RDY.ST Price: $109.99 |
| 41 |
27-9870 |
PIN-SWITCH, SEAT Price: $31.55 |
| 42 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 43 |
32121-4 |
PIN-ROLL, SLOTTED Price: $3.49 |
| 43 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 44 |
37-9590 |
DISCONTINUED Price: Call Us |
| 45 |
32121-18 |
PIN-ROLL, SLOT Price: $0.25 |
| 46 |
28-6180 |
PIN-PEDAL Price: $5.05 |
| 46 |
594919101 |
GUAGE.SRVCMNDR.HRMTR. This part replaces 586161801. Price: $19.99 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532174651. Price: $24.99 |
| 55 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 71 |
587268701 |
HARNESS.CHASS.CRD.TEX.RDY.STRT Price: $99.99 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $8.99 |
| 83 |
594086501 |
NUT SQUARE M6, 11X8.5 ZPB This part replaces 532436774. Price: $1.99 |
| 99 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 102 |
583555601 |
HARNESS.JUMPER.TT.TEXCRD This part replaces 532441262. Price: $11.99 |
| 105 |
532407568 |
REVERSE SWITCH Price: $12.99 |
| 107 |
583100701 |
SWITCH.FBI.CRD This part replaces 532180379. Price: $11.99 |
| 108 |
532421062 |
SWITCH.SNAPMOUNT.NC Price: $12.99 |
| 142 |
583593501 |
CTEK CHARGE PORT W/HARNESS This part replaces 583857801. Price: $27.99 |
| 143 |
583593501 |
CTEK CHARGE PORT W/HARNESS This part replaces 532448059. Price: $27.99 |
