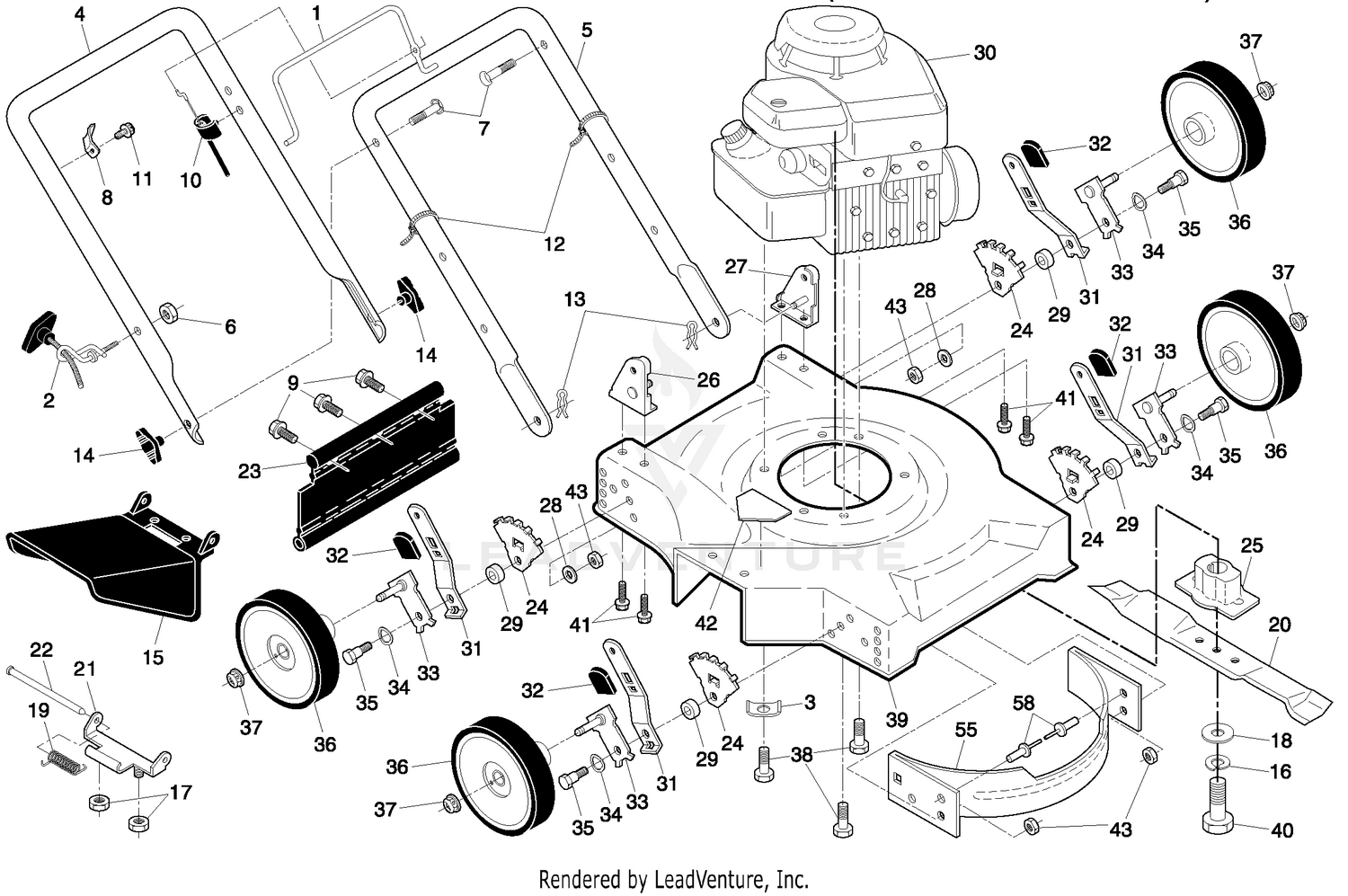

| Ref | Part Number | Description |
|---|
| 1 |
194176X428 |
Control Bar Price: Call Us |
| 1 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 2 |
106-9208 |
SHORT CYLINDER PIN ASM Price: $83.12 |
| 2 |
194788 |
Rope Guide Price: Call Us |
| 3 |
104-0059 |
HYD HOSE ASM Price: $139.13 |
| 3 |
851201X004 |
Engine Washer Price: Call Us |
| 4 |
110-9709 |
HYD CYLINDER ASM This part replaces 99-6986. Price: $743.86 |
| 4 |
194180X479 |
Upper Handle Price: Call Us |
| 5 |
151590X479 |
Lower Handle Price: Call Us |
| 5 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 6 |
132004 |
Nut, Hex Price: Call Us |
| 6 |
32120-93 |
RING-RETAINING Price: $2.49 |
| 7 |
191574 |
Handle Bolt 5/16-18 x 1-3/4 Price: Call Us |
| 7 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 8 |
104-0046 |
PIN-SLIDE, CYLINDER Price: $10.19 |
| 8 |
86899X004 |
Up-Stop Bracket Price: Call Us |
| 9 |
189241 |
Hex Washer Head Screw #10-24 x 1/2 Price: Call Us |
| 9 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 10 |
100-1270 |
SWITCH-PROXIMITY Price: $96.57 |
| 10 |
162778 |
Engine Zone Control Cable Price: Call Us |
| 11 |
125-1906 |
PIN-CYLINDER This part replaces 105-9889. Price: $27.84 |
| 11 |
750634 |
Screw Price: Call Us |
| 12 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 12 |
664-26 |
Wire Tie Price: Call Us |
| 13 |
108-4435 |
CYLINDER-LIFT, HYD This part replaces 99-6987. Price: $791.42 |
| 13 |
51793 |
Hairpin Cotter Price: Call Us |
| 14 |
189713X428 |
Knob, Handle Price: Call Us |
| 14 |
321-24 |
SCREW-HH This part replaces 321-23. Price: $2.31 |
| 15 |
106-5954 |
BRACKET-SWITCH Price: $16.74 |
| 15 |
412277X428 |
Discharge Guard Price: Call Us |
| 16 |
100-4872 |
PLATE-SWITCH, NEUTRAL Price: $11.84 |
| 16 |
850263 |
Helical Lock Washer 3/8 Price: Call Us |
| 17 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 17 |
73800400 |
Locknut, Hex 1/4-20 Price: Call Us |
| 18 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 18 |
851074 |
Hardened Washer Price: Call Us |
| 19 |
112-6562 |
FLOW DIVIDER ASM This part replaces 105-3303. Price: $819.62 |
| 19 |
411832 |
Torsion Spring Price: Call Us |
| 20 |
104-1450 |
BOLT-CARR Price: $0.25 |
| 20 |
145106 |
Blade, 20" Price: Call Us |
| 21 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 21 |
88602 |
Hinge Deflector Price: Call Us |
| 22 |
150215 |
Hinge Rod Price: Call Us |
| 22 |
93-6687 |
DECAL-NO STEP Price: $14.45 |
| 23 |
189240 |
Rear Deflector Price: Call Us |
| 23 |
32149-7 |
NUT-KEPS Price: $0.27 |
| 24 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 24 |
407494X005 |
Wheel Adjusting Bracket Price: Call Us |
| 25 |
850977 |
Blade Adapter Price: Call Us |
| 26 |
170345X479 |
Handle Bracket Assembly, RH Price: Call Us |
| 27 |
170346X479 |
Handle Bracket Assembly, LH Price: Call Us |
| 28 |
61537 |
Washer, Flat Price: Call Us |
| 29 |
401629 |
Spacer Price: Call Us |
| 31 |
401621X004 |
Selector Spring Price: Call Us |
| 32 |
87877 |
Selector Knob Price: Call Us |
| 33 |
401179X004 |
Axle Arm Assembly Price: Call Us |
| 34 |
401630 |
Washer, Curved, Cylindrical Price: Call Us |
| 35 |
401638 |
Shoulder Bolt Price: Call Us |
| 36 |
189168 |
Wheel and Tire Assembly Price: Call Us |
| 37 |
409148 |
Nut, Hex Price: Call Us |
| 38 |
150406 |
Hex Head Thread Rolling Screw 3/8-16 x 1-1/8 Price: Call Us |
| 39 |
414790 |
Lawn Mower Housing Price: Call Us |
| 40 |
851084 |
Hex Head Screw 3/8-24 x 1-3/8 Grade 8 Price: Call Us |
| 41 |
149741 |
Thread Cutting Screw 5/16-18 x 3/4 Price: Call Us |
| 42 |
404763 |
Danger Decal Price: Call Us |
| 43 |
73930500 |
Locknut, Hex 3/8-16 Price: Call Us |
| 55 |
700839X479 |
Baffl e, Front Price: Call Us |
| 58 |
128415 |
Pop Rivet Price: Call Us |
