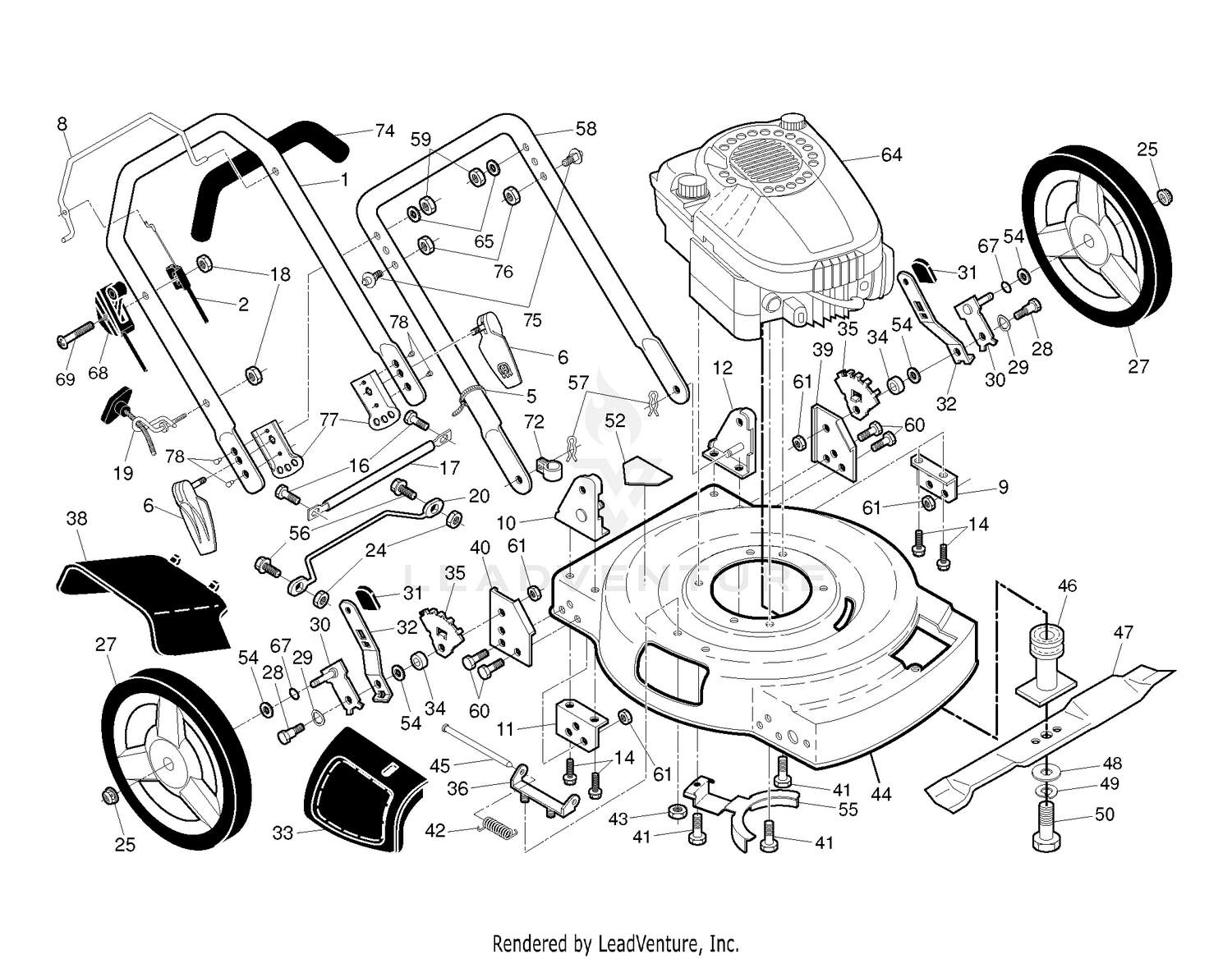

| Ref | Part Number | Description |
|---|
| 1 |
532420835 |
Upper Handle Price: Call Us |
| 2 |
532149293 |
ENGINE ZONE CONTROL CABLE Price: $17.99 |
| 5 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $7.99 |
| 6 |
532430679 |
QUICK.ASM.RELEASE.BLACK Price: $12.99 |
| 8 |
532190527 |
BAIL.COMF.FWGD.668.ORANGE.WALK Price: $12.99 |
| 9 |
583686402 |
GUARD.BELT.TILLER.RT.BLACK This part replaces 532195800. Price: $32.99 |
| 11 |
532195799 |
Support Bracket, Handle, RH Price: Call Us |
| 12 |
532424446 |
Handle Bracket Assembly, LH Price: Call Us |
| 14 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 532149741. Price: $4.99 |
| 16 |
817060410 |
SCREW 14-20 X 5/8 Price: $3.99 |
| 17 |
532165175 |
ROD, SUPPORT This part replaces 532177141. Price: $8.99 |
| 18 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532132004. Price: $1.99 |
| 19 |
586122501 |
KIT.ROPE.GUIDE.T-KNOB This part replaces 532194788. Price: $7.99 |
| 20 |
532154147 |
PROTECTOR Price: $22.99 |
| 24 |
532069180 |
LOCKNUT Price: $2.99 |
| 25 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT Price: $3.99 |
| 27 |
585911001 |
WHEEL.12X1.75.CF H3SPK.RAD3.BB This part replaces 532410815. Price: $22.99 |
| 28 |
532174719 |
BOLT SHOULDER 3/8 -16X1 Price: $7.99 |
| 29 |
532401630 |
WASHER.CURVED.CYLINDRICAL Price: $3.99 |
| 30 |
532406582 |
ARM.ASM.AXLE.5/9.POS.BZP Price: $5.99 |
| 31 |
532701037 |
SELECTOR KNOB This part replaces 532132800. Price: $4.99 |
| 32 |
532401621 |
SPRING.SELECTOR.5POS.BZP This part replaces 532406428. Price: $4.99 |
| 33 |
532196010 |
DOOR.MULCH.22.EZ.MULCH.GREY Price: $12.99 |
| 34 |
532401629 |
SPACER.HEIGHT.ADJUSTER Price: $3.99 |
| 35 |
532410807 |
BRACKET.ADJ.WHEEL.5POS.ADS Price: $3.99 |
| 36 |
532154132 |
BRACKET.ASM.HOUSING.EZ.MUL Price: $5.99 |
| 38 |
532196011 |
DEFLECTOR.GUARD.22..EZ.MULCH Price: $11.99 |
| 39 |
532419362 |
BRACKET.SUPPORT.LT.12.WHL.ORNG Price: $5.99 |
| 40 |
532419361 |
BRACKET.SUPPORT.RT.12.WHL.ORNG Price: $5.99 |
| 41 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 42 |
532152124 |
TORSION SPRING Price: $5.99 |
| 43 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 44 |
532400660 |
Kit, Mower Housing Price: Call Us |
| 45 |
532147286 |
ROD.HINGE.COMBI-C Price: $6.99 |
| 46 |
532421176 |
ADAPTER.BLADE/PULLEY.25M Price: $24.99 |
| 47 |
532199379 |
Blade, 22" Price: Call Us |
| 48 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 49 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 50 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 52 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532182166. Price: $3.99 |
| 54 |
532088348 |
WASHER.FLAT.1/2 Price: $3.99 |
| 55 |
532429001 |
BRACKET.ENG/BELTKEEPER.BZP Price: $5.99 |
| 56 |
817021008 |
SCREW This part replaces 532085825. Price: $3.99 |
| 57 |
532051793 |
HAIRPIN COTTER Price: $5.99 |
| 58 |
532419363 |
HANDLE LOWER EZ 2POS GRAY Price: $19.99 |
| 59 |
532400413 |
Locknut, Hex 1/4-20 Price: Call Us |
| 60 |
874760612 |
BOLT Price: $3.99 |
| 61 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 65 |
532155415 |
WASHER.20X8.5 Price: $4.99 |
| 67 |
532197480 |
O-RING..070X.487.NEOPRENE Price: $3.99 |
| 68 |
532420611 |
Control Throttle Price: Call Us |
| 69 |
532183365 |
SCREW Price: $4.99 |
| 72 |
532197991 |
CLIP.CABLE.BLK Price: $3.99 |
| 74 |
585161003 |
GRIP.HANDLE.FOAM.438MM This part replaces 532164265. Price: $4.99 |
| 75 |
532199255 |
STUD.QUICK.ADJUST Price: $2.99 |
| 76 |
532751153 |
NUT.LOCK.5/16-18 Price: $2.99 |
| 77 |
532413534 |
BRACKET.ADJ.3POS.GREY Price: $6.99 |
| 78 |
532199697 |
RIVET Price: $3.99 |
