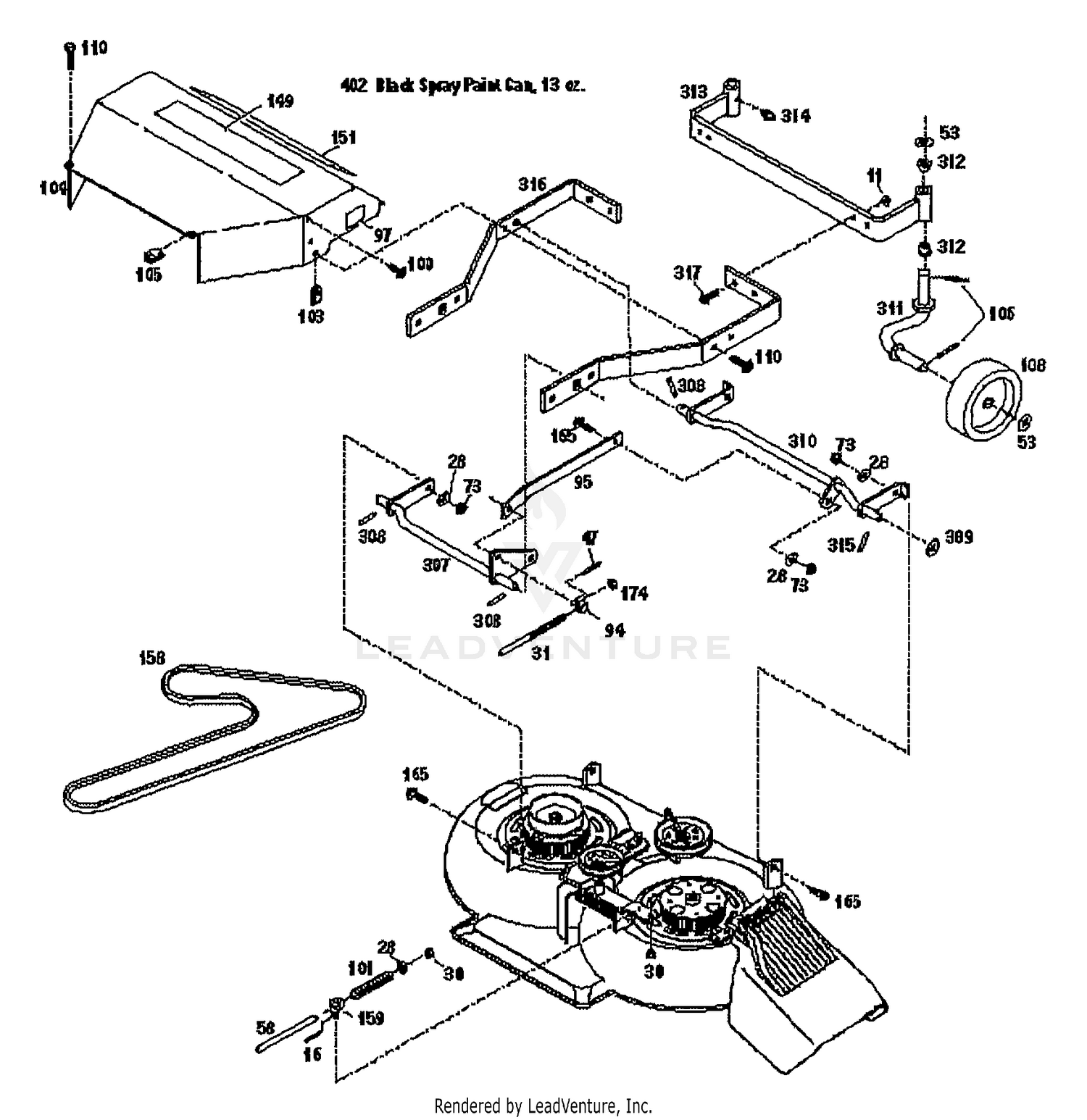

| Ref | Part Number | Description |
|---|
| 11 |
1186393 |
NUT-HFLK 3/8-16 ZP Price: $2.63 |
| 16 |
714-0111 |
Cotter Pin This part replaces 1185147. Price: $4.20 |
| 28 |
736-3050 |
Washer, Plain (flat) 3/8, S.A.E. This part replaces 1107383. Price: $3.90 |
| 30 |
712-3000 |
Hex Lock Nut, 3/8-16 This part replaces 1733398. Price: $3.90 |
| 31 |
1915831 |
CRANK-DECK LIFT {34342,34343} This part replaces 1769895. Price: $23.33 |
| 47 |
714-0474 |
Cotter Pin This part replaces 1100349. Price: $4.08 |
| 53 |
1701447 |
WASHER-1.25X.765X.049 Price: $3.93 |
| 58 |
1770247 |
LOWER BLADE ROD Not Available Price: |
| 73 |
712-0375 |
Hex Cent. L-Nut 3/8-16 Thd. This part replaces 1185506. Price: $4.02 |
| 94 |
1768231 |
TRUNION MACH ZP Not Available Price: |
| 95 |
1769521001 |
BAR-LEVELER Not Available Price: |
| 97 |
777I00006 |
LABEL-CUTTING HEIG Not Available This part replaces 1769889. Price: |
| 100 |
710-0227 |
HEX SCREW WASHER HD #8-18 x 0.500 This part replaces 1769344. Price: $3.90 |
| 101 |
1769007 |
COMPRESSION SPRING Not Available Price: |
| 103 |
1185498 |
SPPED U-NUT TYP Not Available Price: |
| 104 |
787-01018-0637 |
BELT GUARD Not Available This part replaces 1764996010. Price: |
| 105 |
926-04006 |
U-TYPE SPEED NUT Not Available This part replaces 1185873. Price: |
| 108 |
734-04005 |
CASTER WHEEL Not Available This part replaces 1743891. Price: |
| 110 |
710-04043 |
SCREW 5/16-18 This part replaces 1186329. Price: $3.96 |
| 149 |
777D06078 |
LABEL-DECK LOGO Not Available This part replaces 1768385. Price: |
| 151 |
777D06077 |
LABEL-DECK Not Available This part replaces 1773585. Price: |
| 158 |
1769767 |
BELT-V Price: $41.55 |
| 159 |
1769038 |
EYE-BOLT/ Not Available Price: |
| 165 |
1754125 |
SCR-SHLDR 3/8-16X.25 Not Available Price: |
| 174 |
712-0290 |
Toplock Nut This part replaces 1770355. Price: $4.05 |
| 308 |
715-04034 |
ROLL PIN This part replaces 1185469. Price: $6.01 |
| 309 |
736-0237 |
Washer, Flat, .65 x 1.25 x .075 This part replaces 1107386. Price: $3.90 |
| 310 |
1770248001 |
LIFT ASSEM Not Available Price: |
| 311 |
1768477001 |
SPINDLE ASSEMBLY Not Available Price: |
| 312 |
1764140 |
BUSHING Price: $4.40 |
| 313 |
687-02003-0637 |
WHEEL SUPPORT ASSEMBLY (POWEDER BLACK) Not Available This part replaces 1769897001. Price: |
| 314 |
937-0146 |
Grease Fitting This part replaces 1185976. Price: $4.80 |
| 315 |
1185759 |
PIN DRIVE 1/4-3" Not Available Price: |
| 315 |
787-01003-0637 |
SUPPORT BRACKET Not Available This part replaces 1769899. Price: |
| 317 |
710-04042 |
Hex Flange Screw, 3/8-16 This part replaces 1186347. Price: $4.05 |
