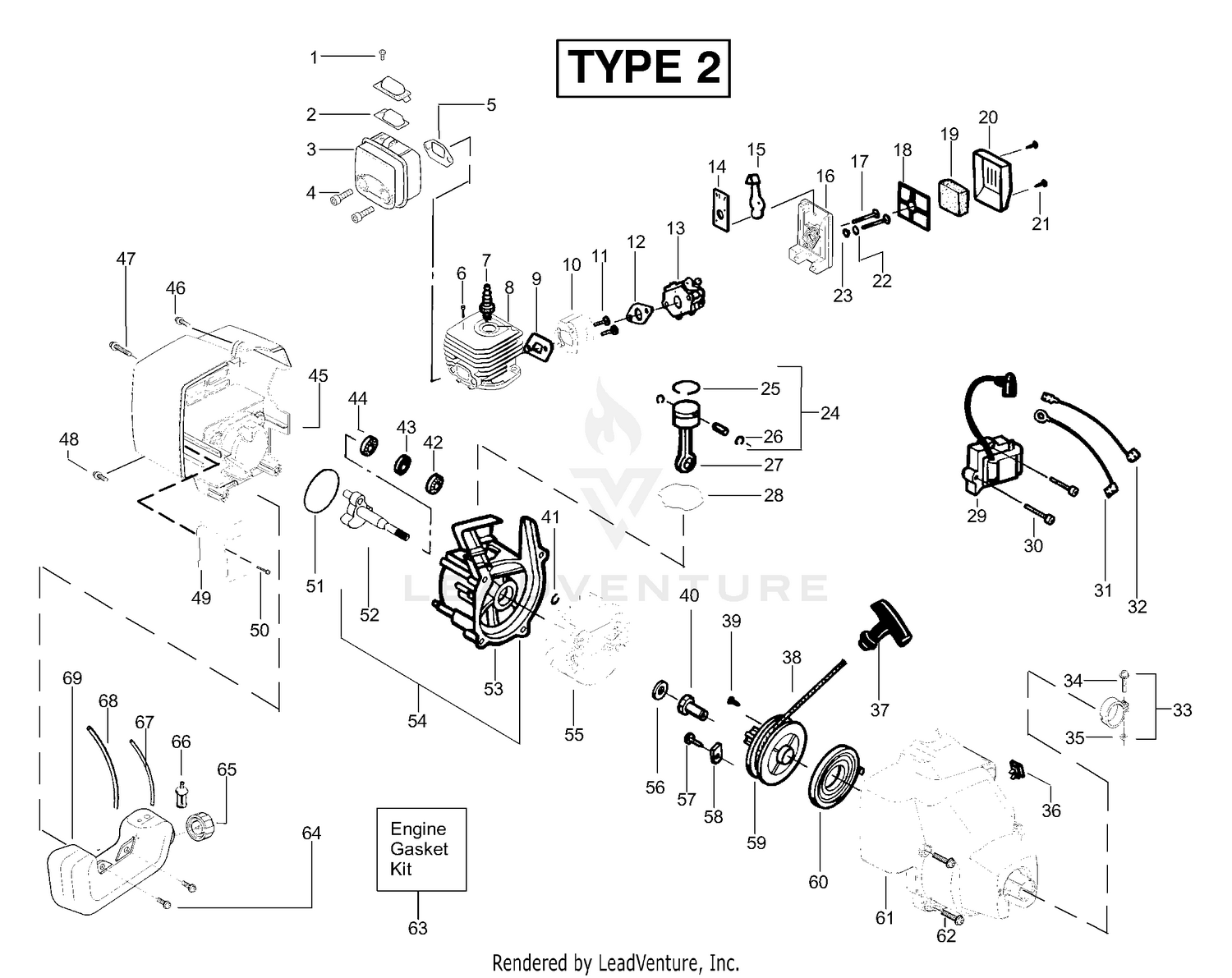

Engine Assembly Type 2
Parts (64)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3218-5 | NUT-JAM Price: $0.27 |
| 1 | 530015241 | Screw-Screen Price: $1.99 |
| 2 | 3253-7 | WASHER-LOCK Price: $0.27 |
| 2 | 530071544 | Kit-Spark Arrestor Price: $6.99 |
| 3 | 325-14 | SCREW-HH Price: $2.64 |
| 4 | 530016338 | Bolt-Muffler Price: $1.99 |
| 5 | 530071363 | Gasket-Muffler (kit) Price: $5.99 |
| 6 | 530015953 | Screw-Cylinder Price: $1.99 |
| 7 | 952030249 | Spark Plug (RCJ 6Y) Price: $3.99 |
| 8 | 530071668 | Kit - Cylinder Price: Call Us |
| 9 | 530071363 | Gasket-Cyl./Carb.(kit) Price: $5.99 |
| 10 | 530057634 | Adapter-Carb. Price: $8.99 |
| 11 | 530016309 | Screw Price: $1.99 |
| 12 | 530071363 | Gasket-Carb. (kit) Price: $5.99 |
| 13 | 530071628 | Kit-Carb.(C1Q-W10B) Price: $34.99 |
| 14 | 530038747 | Choke Plate Mounting Price: $1.99 |
| 15 | 530038686 | Shutter-Choke Price: $1.99 |
| 16 | 530052431 | Air Box Price: $1.99 |
| 17 | 530016393 | Screw Price: $3.33 |
| 18 | 530036569 | Plate - Filter Support Price: $1.99 |
| 19 | 530036575 | Foam-Air Filter Price: $1.99 |
| 20 | 530054414 | Cover-Air Filter Price: $3.99 |
| 21 | 530015892 | Screw Price: $1.99 |
| 22 | 530015852 | Spacer-Choke Price: $1.99 |
| 23 | 530015254 | Washer Price: $1.99 |
| 25 | 545154001 | RING PISTON This part replaces 530055120. Price: $1.99 |
| 26 | 530015162 | Retainer-Piston Pin Price: $1.99 |
| 27 | 530049817 | CONNECTING ROD ASSY This part replaces 530069945. Price: $6.99 |
| 28 | 530071363 | Seal-Cylinder (kit) Price: $5.99 |
| 29 | 530055160 | Ignition Module Price: $34.99 |
| 30 | 530016357 | Screw Price: $1.99 |
| 31 | 581425901 | SWITCH, GROUND WIRE This part replaces 530014662. Price: $1.99 |
| 32 | 530014663 | Assy-Leadwire Price: $5.99 |
| 34 | 530016381 | Screw-Nose Cone Price: $2.99 |
| 35 | 530016382 | Nut-Nose Cone Price: $2.99 |
| 36 | 530071356 | Kit-On/Off Switch Price: $4.99 |
| 37 | 530027569 | Handle-Starter Price: $1.99 |
| 38 | 530069232 | Kit - Rope Price: $3.99 |
| 39 | 530016080 | Screw Price: $1.99 |
| 40 | 530038604 | Coupling-Drive Price: $1.99 |
| 41 | 530015941 | Retain. Ring-C'shaft Price: $1.99 |
| 42 | 530055728 | Outer Bearing Price: $6.99 |
| 43 | 530071615 | Kit-C'case Seal Price: $4.99 |
| 44 | 530032125 | Inner Bearing Price: $11.99 |
| 45 | 530056710 | Shroud-Rear Price: $14.99 |
| 46 | 530016349 | Screw Price: $1.99 |
| 47 | 530016386 | SCREW This part replaces 530015810. Price: $5.99 |
| 48 | 530016349 | Screw Price: $1.99 |
| 49 | 530055351 | Shield-Heat Price: $2.99 |
| 50 | 530015805 | Screw Price: $1.99 |
| 51 | 530071363 | O-Ring-C'case (kit) Price: $5.99 |
| 52 | 530054753 | Assy-Crankshaft Price: $27.99 |
| 55 | 545221701 | FLYWHEEL ASSY This part replaces 530069886. Price: $8.99 |
| 56 | 530015828 | Washer-Flat Price: $1.99 |
| 57 | 530015775 | Screw Price: $1.99 |
| 58 | 530027523 | Retainer-Can Price: $2.99 |
| 60 | 545008010 | STARTER SPRING This part replaces 530042085. Price: $3.99 |
| 61 | 530056706 | Assy.-Fan Hsg Price: $17.99 |
| 62 | 530016386 | SCREW This part replaces 530015810. Price: $5.99 |
| 64 | 530016379 | Screw Price: $2.99 |
| 65 | 530014347 | Assy-Fuel Cap Price: $4.99 |
| 66 | 530095646 | Assy-Fuel Pickup Price: $2.99 |
| 67 | 530069247 | Kit-Fuel Line (Small) Price: $3.99 |
| 68 | 530069216 | Kit-Fuel Line (Large) Price: $3.99 |
