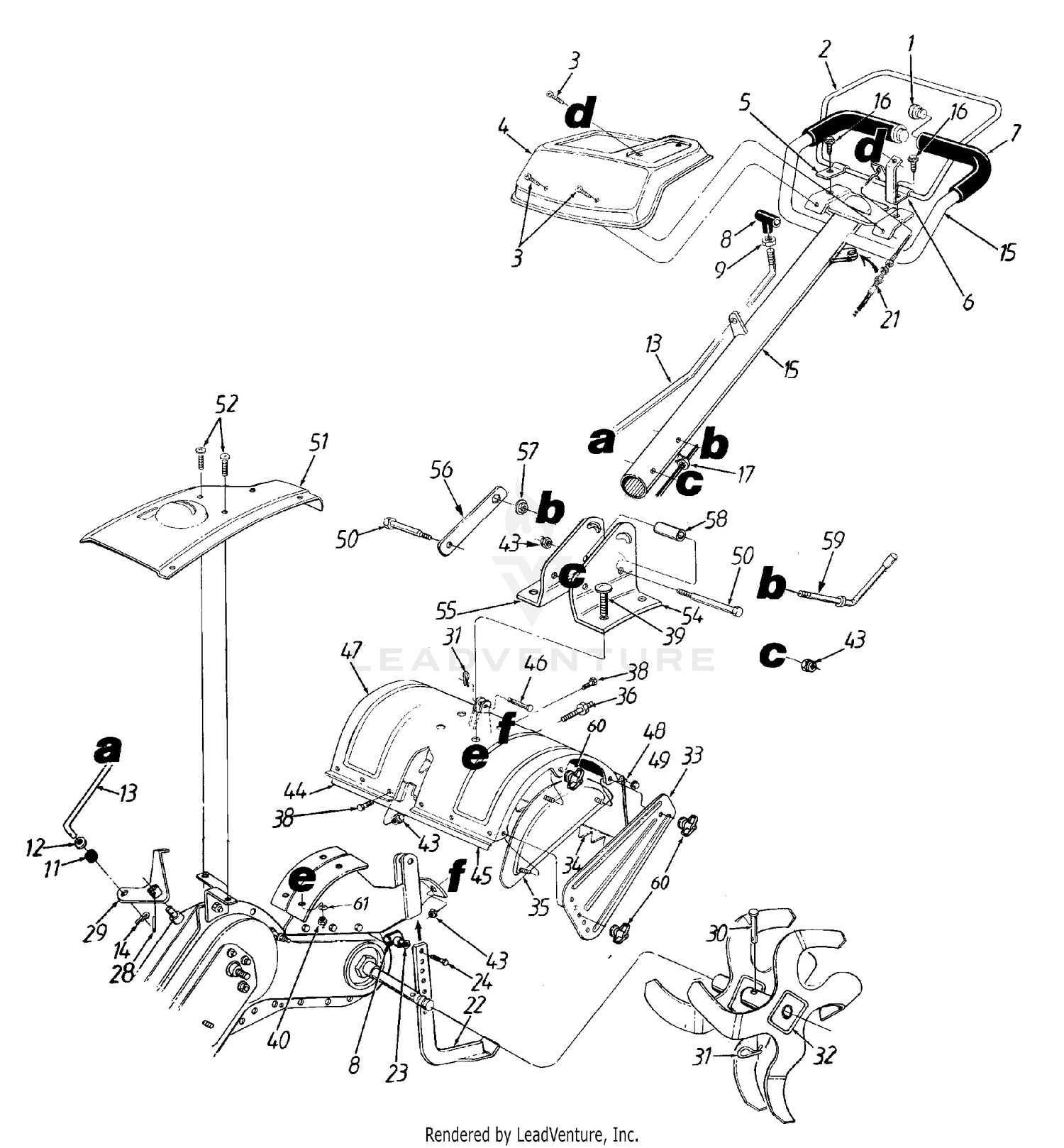

| Ref | Part Number | Description |
|---|
| 1 |
735-0246A |
END PLUG This part replaces 735-0246. Price: $5.01 |
| 2 |
647-0014 |
CLUTCH CONTROL ASSEMBLY Not Available Price: |
| 3 |
710-1017 |
Torx Mach. AB-Tap Scr. 1/4 x .62" Lg. Price: $7.26 |
| 4 |
786-0131 |
HANDLE COVER Not Available Price: |
| 5 |
786-0098-0637 |
RETAINING BRACKET Not Available This part replaces 786-0098. Price: |
| 6 |
786-0118-0637 |
RETAINING BRACKET Not Available This part replaces 786-0118. Price: |
| 7 |
720-0278A |
Grip This part replaces 720-0278. Price: $20.10 |
| 8 |
720-0210A |
Knob Price: $13.38 |
| 9 |
712-3008 |
HEX JAM NUT 3/8-16 GR5 Price: $4.08 |
| 11 |
735-0127 |
Rubber Washer Price: $5.94 |
| 12 |
736-0204 |
Fl-Wash. .344" I.D. x .6" O.D. Price: $3.89 |
| 13 |
747-0902 |
GEAR SHIFT ROD Not Available Price: |
| 14 |
714-0104 |
Hairpin Clip Price: $3.90 |
| 15 |
649-0017 |
HANDLE ASSEMBLY Not Available Price: |
| 16 |
710-0896 |
Tap Scr. 1/4-14 x 5/8" Lg. Price: $3.86 |
| 17 |
726-0330 |
CABLE CLIP Not Available Price: |
| 21 |
946-0916 |
Clutch Cable This part replaces 746-0916. Price: $50.92 |
| 22 |
786-0120-0637 |
Depth Bar This part replaces 786-0120. Price: $58.29 |
| 23 |
936-0117 |
Fl-Wash. This part replaces 736-0117. Price: $6.20 |
| 28 |
715-0120 |
Spiral Pin 3/16" x 1" Price: $9.14 |
| 29 |
686-0095 |
CRANK SHIFT ASSEMBLY Not Available Price: |
| 30 |
711-0415 |
Clevis Pin Price: $4.04 |
| 31 |
714-0149B |
Hairpin Clip Price: $3.95 |
| 32 |
642-0015-0637 |
Tine Ass'y. - L.H. Not Available This part replaces 642-0015. Price: |
| 33 |
786-0090A |
Side Shield This part replaces 786-0090. Price: $25.90 |
| 34 |
786-0113 |
Rear Tine Shield Price: $60.57 |
| 36 |
938-0849 |
Screw, Hex, 5/16-18 x .75 This part replaces 738-0849. Price: $8.82 |
| 38 |
710-0376 |
Hex Bolt 5/16-18 x 1" Lg. (Gr. 5) This part replaces 710-3002. Price: $3.66 |
| 39 |
710-3097 |
Carriage Bolt 3/8-16 x 1" Lg. Price: $5.79 |
| 40 |
712-0798 |
Hex Ins. L-Nut 3/8-16 Thd. Price: $3.86 |
| 43 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 44 |
786-0076-0637 |
TINE SHIELD BRACKET (RH) Not Available This part replaces 786-0076. Price: |
| 45 |
786-0077-0637 |
TINE SHIELD BRACKET (LH) Not Available This part replaces 786-0077. Price: |
| 46 |
711-0415 |
Clevis Pin .375" Dia. Price: $4.04 |
| 47 |
786-0085A |
TINE SHIELD Not Available This part replaces 786-0085. Price: |
| 48 |
747-0432 |
Tiller Flap Rod Price: $12.08 |
| 49 |
726-0106 |
PUSH NUT This part replaces 7260106. Price: $3.37 |
| 50 |
710-0189 |
Hex Bolt 5/16-18 x 3" Lg. Price: $5.30 |
| 52 |
710-1017 |
Torx Mach. AB-Tap Scr. 1/4 x Price: $7.26 |
| 54 |
786-0109 |
HANDLE BRACKET (LH) Not Available Price: |
| 55 |
786-0108 |
HANDLE BRACKET (RH) Not Available Price: |
| 56 |
784-0191 |
Hex Nut Retainer Brkt. Price: $6.84 |
| 57 |
712-0379 |
Hex Flange Nut 3/8-24 Thd. Price: $4.02 |
| 58 |
750-0885A |
Spacer .322 Dia. This part replaces 750-0885. Price: $10.02 |
| 59 |
784-0190 |
Handle Adjustment Crank Price: $21.49 |
| 60 |
712-0421 |
Knob 5/16-18 Thd. Price: $5.99 |
