| Ref | Part Number | Description |
|---|
| 1 |
165892 |

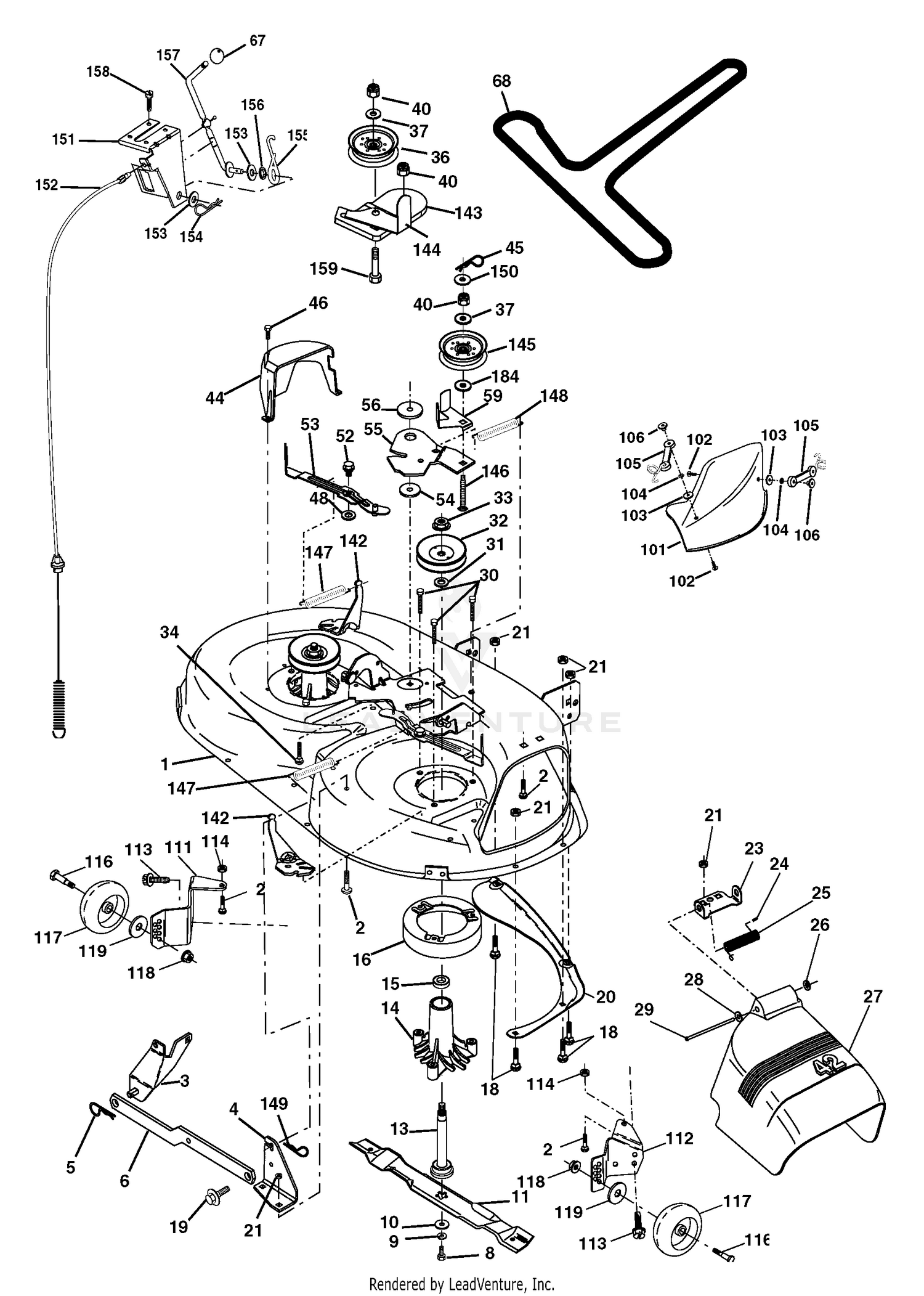

Mower Deck Assembly, 42" Price: Call Us |
| 1 |
60-3820 |
SPINDLE Price: $1,516.53 |
| 2 |
60-3830 |
SEAL Price: $60.55 |
| 2 |
72140506 |
Bolt Price: Call Us |
| 3 |
138017 |
Bracket Assembly,Sway Bar, Front Price: Call Us |
| 3 |
60-3880 |
CONE Price: $179.96 |
| 4 |
165460 |
Bracket Sway Bar 38/42" eck Price: Call Us |
| 4 |
60-3850 |
CUP Price: $109.74 |
| 5 |
60-3840 |
CONE Price: $163.95 |
| 5 |
STD624008 |
Retainer Spring Price: Call Us |
| 6 |
178024 |
Bar Sway Deck Price: Call Us |
| 6 |
62-6450 |
RETAINING RING KIT Price: $152.42 |
| 7 |
107-4341 |
BOLT-WHEEL Price: $21.71 |
| 8 |
850857 |
Bolt, Hex 3/8-24 x 1.25 Gr. 8 Price: Call Us |
| 9 |
10030600 |
Washer, Lock Price: Call Us |
| 9 |
98-8270 |
BOLT Price: $1.59 |
| 10 |
107-4345 |
COVER Price: $545.42 |
| 10 |
140296 |
Washer, Hardened Price: Call Us |
| 11 |
108-1445 |
RING-RETAINING Price: $1.97 |
| 12 |
62-6430 |
GEAR Price: $142.98 |
| 13 |
137645 |
Shaft Assembly, Mandrel, Vented Price: Call Us |
| 13 |
60-3990 |
WASHER-THRUST Price: $10.52 |
| 14 |
107-4346 |
O-RING Price: $4.76 |
| 14 |
128774 |
Housing, Mandrel, Vented Price: Call Us |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 15 |
60-4060 |
COVER Price: $9.99 |
| 16 |
107-4347 |
PLUNGER Price: $25.56 |
| 16 |
174493 |
Stripper, Mower Deck Price: Call Us |
| 17 |
322-1 |
SCREW-HH Price: $0.22 |
| 18 |
60-4040 |
PLUG Price: $11.10 |
| 18 |
72140505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 19 |
108-1443 |
PRIMARY CARRIER ASM Price: $1,365.47 |
| 19 |
132827 |
Bolt, Shoulder Price: Call Us |
| 20 |
159770 |
Baffle, Vortex Price: Call Us |
| 20 |
60-3900 |
GEAR Price: $1,114.65 |
| 21 |
108-1444 |
SECONDARY CARRIER ASM Price: $1,524.37 |
| 21 |
73680500 |
Nut Crownlock 5/16-18 Unc Price: Call Us |
| 22 |
82-8700 |
RING Price: $1.97 |
| 23 |
177563 |
Bracket, Deflector Price: Call Us |
| 23 |
60-3950 |
SPRING Price: $8.11 |
| 24 |
105304X |
Cap, Sleeve Price: Call Us |
| 24 |
60-3940 |
WASHER Price: $4.07 |
| 25 |
107-4342 |
HUB Price: $1,742.44 |
| 25 |
123713X |
Spring, Torsion, Deflector Price: Call Us |
| 26 |
110452X |
Nut, Push Price: Call Us |
| 26 |
60-3910 |
WASHER Price: $1.35 |
| 27 |
130968X428 |
Shield, Deflector Price: Call Us |
| 27 |
60-3890 |
BOLT Price: $3.11 |
| 28 |
107-4340 |
SHAFT-INPUT Price: $281.87 |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: Call Us |
| 29 |
131491 |
Rod, Hinge Price: Call Us |
| 30 |
173984 |
Screw Thdrol DOD PT Hex Price: Call Us |
| 30 |
60-3800 |
COUPLING Price: $131.07 |
| 31 |
129963 |
Washer, Spacer Price: Call Us |
| 32 |
153535 |
Pulley, Mandrel Price: Call Us |
| 33 |
178342 |
Nut, Toplock, Flanged Price: Call Us |
| 34 |
72110614 |
Bolt Price: Call Us |
| 36 |
131494 |
Pulley, Idler, Flat Price: Call Us |
| 37 |
19131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: Call Us |
| 40 |
73680600 |
Nut Crownlock 3/8-16 Unc Price: Call Us |
| 44 |
140088 |
Guard, Mandrel, L.H. Price: Call Us |
| 45 |
4497H |
Retainer Price: Call Us |
| 46 |
137729 |
Screw, Thd. Roll 1/4-20 x 5/8 Price: Call Us |
| 48 |
133944 |
Washer, Hardened Price: Call Us |
| 52 |
139888 |
Bolt, Shoulder 5/16-18 Unc Price: Call Us |
| 53 |
184907 |
Arm Assembly, Pad, Brake Price: Call Us |
| 54 |
178515 |
Washer, Hardened Price: Call Us |
| 55 |
155046 |
Arm, Idler Price: Call Us |
| 56 |
165723 |
Spacer, Retainer Price: Call Us |
| 59 |
141043 |
Guard, TUV Idler Price: Call Us |
| 67 |
106932X |
Knob Price: Call Us |
| 68 |
144959 |
V-Belt Price: Call Us |
| 101 |
136420 |
Mulcher Cover Price: Call Us |
| 102 |
71081010 |
Screw Pan Hd Phillips 10-24 x 5/8 Price: Call Us |
| 103 |
19061216 |
Washer #10 Price: Call Us |
| 104 |
10071000 |
Washer, Lock #10 Price: Call Us |
| 105 |
160793 |
Latch Assembly, Bagger Price: Call Us |
| 106 |
2029J |
Nut, Weld Price: Call Us |
| 111 |
179292 |
Bracket Wheel Guage LH Price: Call Us |
| 112 |
179293 |
Bracket Wheel Guage RH Price: Call Us |
| 113 |
17060510 |
Screw 3/8-16 x .625 Price: Call Us |
| 114 |
73510500 |
Nut Keps 5/16-18 Unc Price: Call Us |
| 115 |
72110505 |
Bolt 5/16-18 x 5/8 Price: Call Us |
| 142 |
165890 |
Arm Spring Brake Mower Price: Call Us |
| 143 |
157109 |
Bracket Arm Idler 42" Price: Call Us |
| 144 |
158634 |
Keeper Belt 42" Clutch Cable Price: Call Us |
| 145 |
165888 |
Pulley Idler Flat Price: Call Us |
| 146 |
171977 |
Bolt Carriage Idler Price: Call Us |
| 147 |
131335 |
Spring Extension Price: Call Us |
| 148 |
169022 |
Spring Return Idler Price: Call Us |
| 149 |
165898 |
Retainer Spring Yellow Zinc Price: Call Us |
| 150 |
19091216 |
Washer 9/32 x 3/4 x 16 Ga. Price: Call Us |
| 151 |
169670 |
Bracket Clutch Price: Call Us |
| 152 |
169676 |
Cable Clutch 42 In Price: Call Us |
| 153 |
169674 |
Washer Flat 3/8" Type B Price: Call Us |
| 154 |
169675 |
Spring Retainer Price: Call Us |
| 155 |
169671 |
Spring Retention Lever Price: Call Us |
| 156 |
169672 |
Spacer Price: Call Us |
| 157 |
169669 |
Rod Clutch Price: Call Us |
| 158 |
17720408 |
Screw Hex Thd Cut 1/4-20 x 5/8 Price: Call Us |
| 159 |
72140614 |
Bolt Rdhd Sqn 3/8-16 Unc x 1-3/4 Price: Call Us |
| 184 |
19131410 |
Washer 13/32 x 7/8 x 10 Ga. Price: Call Us |
