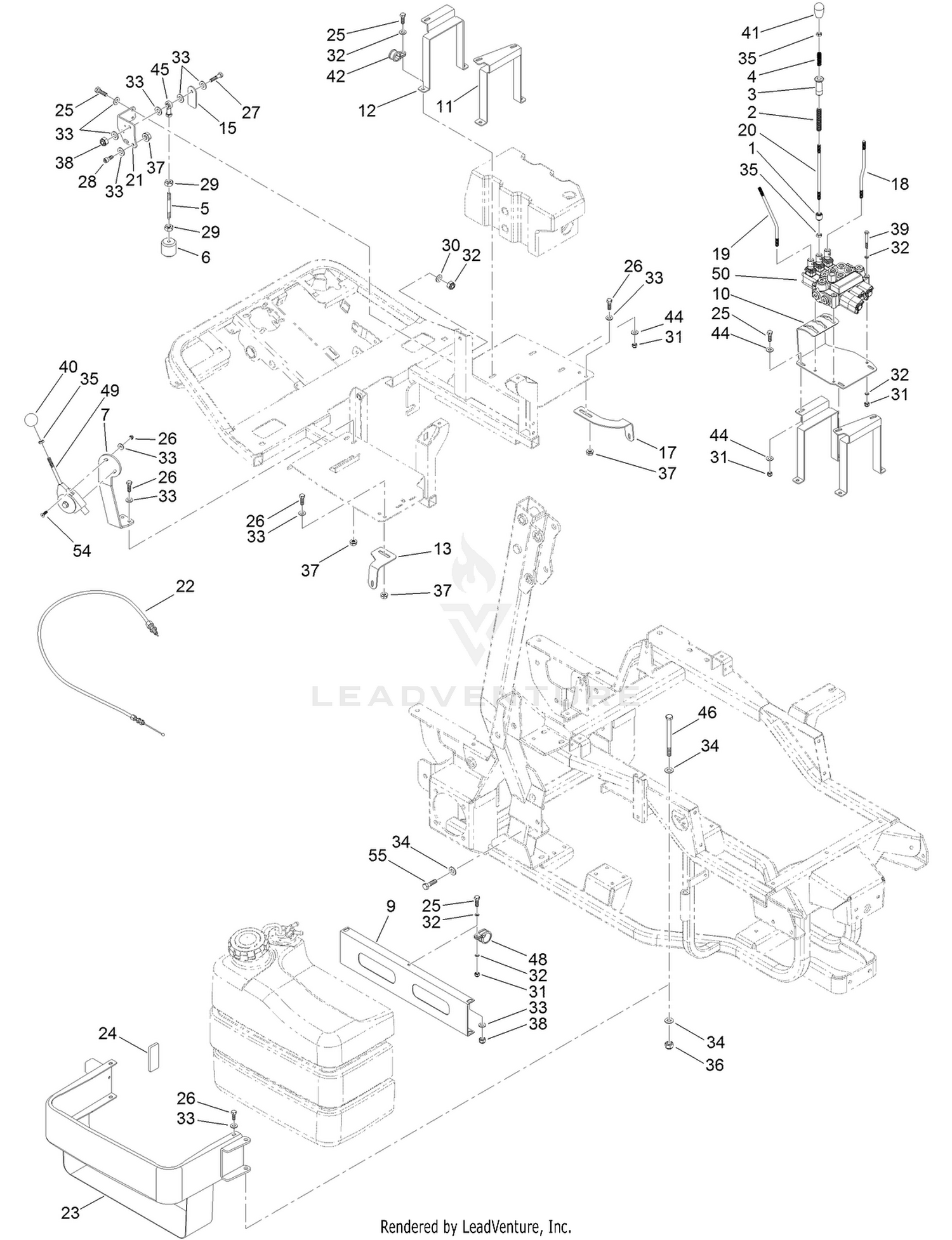

Fuel and Oil Tank Assembly
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 134-0696 | CONNECTOR Price: $7.91 |
| 2 | 134-0697 | SPRING Price: $3.32 |
| 3 | 134-0698 | KNOB Price: $16.50 |
| 4 | 134-0699 | SPRING Price: $3.32 |
| 5 | 134-0735 | ROD Price: $10.54 |
| 6 | 134-0736 | ROCKER Price: $20.05 |
| 7 | 134-0772 | SUPPORT-THROTTLE Price: $14.14 |
| 9 | 134-0787 | RAIL-CROSS Price: $23.54 |
| 10 | 134-0792 | SUPPORT-VALVE, AUX Price: $21.86 |
| 11 | 134-0794 | CLAMP-BAND Price: $36.38 |
| 12 | 134-0795 | CLAMP-BAND Price: $33.35 |
| 13 | 134-0828 | BRACKET Price: $5.80 |
| 15 | 134-0845 | SUPPORT-LOCK, DIFF Price: $3.31 |
| 17 | 134-0895 | BRACKET Price: $8.40 |
| 18 | 134-0905 | LEVER-VALVE, AUX Price: $16.94 |
| 19 | 134-0906 | LEVER-VALVE, AUX Price: $12.87 |
| 20 | 134-0907 | LEVER-VALVE, AUX Price: $7.08 |
| 21 | 134-0952 | BRACKET Price: $5.91 |
| 22 | 134-0953 | CABLE Price: $8.48 |
| 23 | 134-0959 | SUPPORT-TANK, FUEL Price: $90.83 |
| 24 | 134-0982 | GROMMET-RUBBER, TANK Price: $6.73 |
| 25 | 134-1009 | SCREW Price: $0.32 |
| 26 | 134-1011 | SCREW Price: $0.32 |
| 27 | 134-1014 | SCREW Price: $0.39 |
| 28 | 134-1026 | SCREW Price: $0.49 |
| 29 | 134-1034 | NUT Price: $0.25 |
| 30 | 134-1041 | NUT Price: $0.25 |
| 31 | 134-1042 | NUT Price: $0.25 |
| 32 | 134-1044 | WASHER Price: $0.25 |
| 33 | 134-1045 | WASHER Price: $0.25 |
| 34 | 134-1046 | WASHER Price: $0.25 |
| 35 | 134-1078 | NUT Price: $0.25 |
| 36 | 134-1079 | NUT Price: $0.42 |
| 37 | 134-1082 | NUT Price: $0.36 |
| 38 | 134-1092 | NUT Price: $0.25 |
| 39 | 134-1118 | SCREW Price: $0.22 |
| 40 | 134-1146 | BALL Price: $5.20 |
| 41 | 134-1179 | KNOB Price: $5.50 |
| 42 | 134-1197 | CLAMP Price: $4.87 |
| 44 | 134-1234 | WASHER Price: $0.25 |
| 45 | 134-1259 | HEAD-CYLINDER Price: $23.40 |
| 46 | 134-1295 | SCREW Price: $2.79 |
| 48 | 134-1318 | CLAMP Price: $3.84 |
| 49 | 134-0568 | LEVER-THROTTLE Price: $30.17 |
| 50 | 134-0582 | DISTRIBUTOR Price: $772.82 |
| 54 | 134-3111 | SCREW Price: $0.25 |
