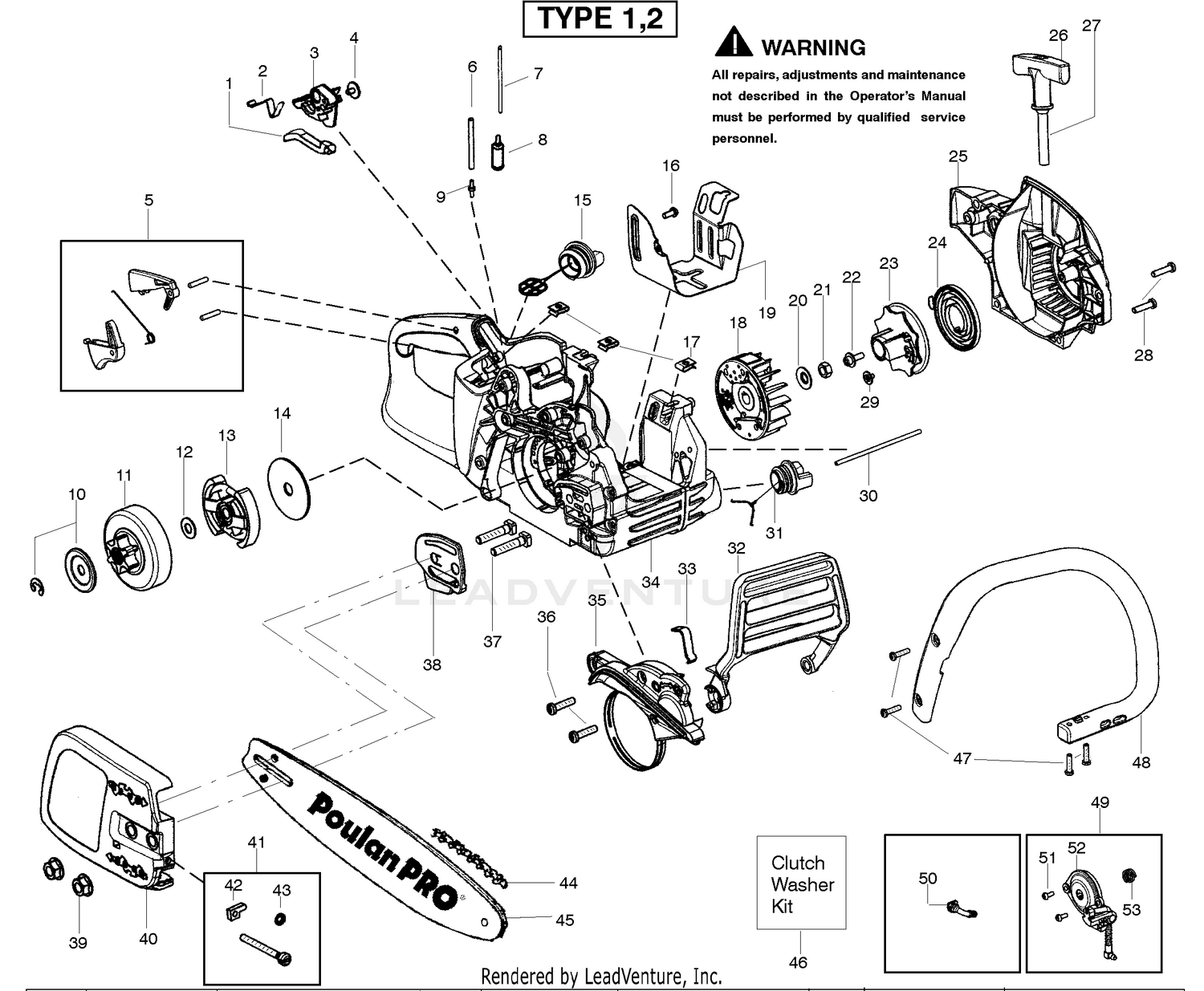

| Ref | Part Number | Description |
|---|
| 1 |
323-6 |
SCREW-HH Price: $0.66 |
| 1 |
530057893 |
Knob-Choke Price: $3.99 |
| 2 |
530057908 |
Spring-Ign. Switch Price: $2.99 |
| 2 |
94-2703 |
PLUG Price: $1.86 |
| 3 |
112-6967 |
O-RING Price: $2.70 |
| 3 |
530057891 |
Lever-Ign. Switch Price: $4.99 |
| 4 |
120-5118 |
SHAFT-ADJUSTER Price: $44.64 |
| 4 |
530016080 |
Screw Price: $1.99 |
| 5 |
106-5344 |
BUSHING-FLANGE, KEYED Price: $2.37 |
| 5 |
530071888 |
Kit-Trigger/Lockout Price: $6.99 |
| 6 |
119-4067 |
SCREW-HH Price: $0.81 |
| 6 |
530069216 |
Kit-Fuel Line (Large) Price: $3.99 |
| 7 |
530069247 |
Kit-Fuel Line (Small) Price: $3.99 |
| 7 |
99-2097 |
DETENT Price: $12.71 |
| 8 |
120-5116 |
WASHER-WAVE Price: $9.17 |
| 8 |
530095646 |
Assy-Fuel Pick Up Price: $2.99 |
| 9 |
108-0015 |
WASHER-FLAT Price: $0.39 |
| 9 |
530023877 |
Fitting-Fuel line Price: $1.99 |
| 10 |
137-6130 |
SCREW-ADJUSTER, BEDBAR This part replaces 115-7039. Price: $25.42 |
| 10 |
530071945 |
Kit-Clutch Washer Price: $3.99 |
| 11 |
119-4155 |
WASHER-HARDENED Price: $4.16 |
| 11 |
530057905 |
Assy-Clutch Drum 3/8" Price: $14.99 |
| 12 |
120-5120 |
SPRING-COMPRESSION Price: $2.89 |
| 12 |
530071945 |
Kit-Clutch Washer Price: $3.99 |
| 13 |
119-4039 |
NUT-HEX, NI Price: $0.28 |
| 13 |
530057907 |
Assy-Clutch Price: $6.99 |
| 14 |
530016419 |
Washer-Large Clutch Price: $1.99 |
| 15 |
107-3273-01 |
BEDBAR Price: $303.02 |
| 15 |
580940901 |
FUEL CAP ASSY This part replaces 530047192. Price: $3.99 |
| 16 |
119-4151 |
SCREW-BEDKNIFE Price: $0.41 |
| 16 |
545227101 |
SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 17 |
137-6094 |
BEDKNIFE-EDGEMAX (RM 22IN) This part replaces 108-9095. Price: $166.88 |
| 17 |
530015922 |
Nut-"U" type speed Price: $1.99 |
| 18 |
530071905 |
KIT This part replaces 530057937. Price: $37.99 |
| 19 |
530057911 |
Shield-Heat Price: $2.99 |
| 20 |
530015127 |
Washer-Flywheel Price: $1.99 |
| 21 |
530016134 |
Nut-Flywheel Price: $1.99 |
| 21 |
61-1950 |
WASHER-PLASTIC Price: $0.55 |
| 22 |
530015920 |
Screw Price: $1.99 |
| 22 |
56-9520 |
BUSHING-FLANGED Price: $2.15 |
| 23 |
530057890 |
Pulley-Starter Price: $5.99 |
| 23 |
69-8980 |
WASHER Price: $0.58 |
| 24 |
106-9623 |
BOLT-BEDBAR Price: $18.27 |
| 24 |
545008013 |
Kit-Starter Spring This part replaces 530042095. Price: $3.99 |
| 25 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 25 |
545039603 |
Housing-Fan Price: $14.99 |
| 26 |
323-12 |
SCREW-HH Price: $1.14 |
| 26 |
530056402 |
Handle-Starter Price: $2.99 |
| 27 |
108-4269-01 |
WEIGHT Price: $146.07 |
| 27 |
530069232 |
Kit-Rope Price: $3.99 |
| 28 |
107-2954 |
NUT-ADJUSTER, BEARING Price: $17.63 |
| 28 |
530016432 |
Screw Price: $1.99 |
| 29 |
530016080 |
Screw Price: $1.99 |
| 29 |
93-2489 |
BEARING Price: $24.37 |
| 30 |
107-4028 |
SEAL-GREASE Price: $21.51 |
| 30 |
530058786 |
Assy-Oil Vent Price: $2.99 |
| 31 |
530057236 |
Assy-Oil Cap w/ret. Price: $5.99 |
| 32 |
137-8433 |
REEL+,7IN FWY(22)11 BLD This part replaces 117-0980. Price: $671.21 |
| 32 |
530057897 |
Handguard Price: $7.99 |
| 33 |
530016416 |
Spring-Handguard Price: $1.99 |
| 35 |
530071893 |
Kit-Chainbrake Price: $17.99 |
| 36 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 36 |
530016432 |
Screw Price: $1.99 |
| 37 |
530016133 |
Bolt-Bar Price: $1.99 |
| 38 |
530057910 |
Plate-Bar Price: $1.99 |
| 39 |
530015917 |
Nut-Bar Price: $0.99 |
| 42 |
530015826 |
Pin-Bar Adjust Price: $1.99 |
| 43 |
530038593 |
Retainer-Bar Adjust Price: $0.99 |
| 44 |
581562201 |
ACCY P/PP CHN 16" 56DL 3/8 This part replaces 952051211. Price: $19.99 |
| 45 |
952044369 |
Accy-16" Bar Price: $17.99 |
| 47 |
530016432 |
Screw Price: $1.99 |
| 48 |
530057888 |
Handle-Front Price: $14.99 |
| 50 |
530057924 |
Assy-Oil Pick Up Price: $2.99 |
| 51 |
545227101 |
SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 52 |
581071401 |
OIL PUMP ASSY SAS This part replaces 530057931. Price: $5.99 |
