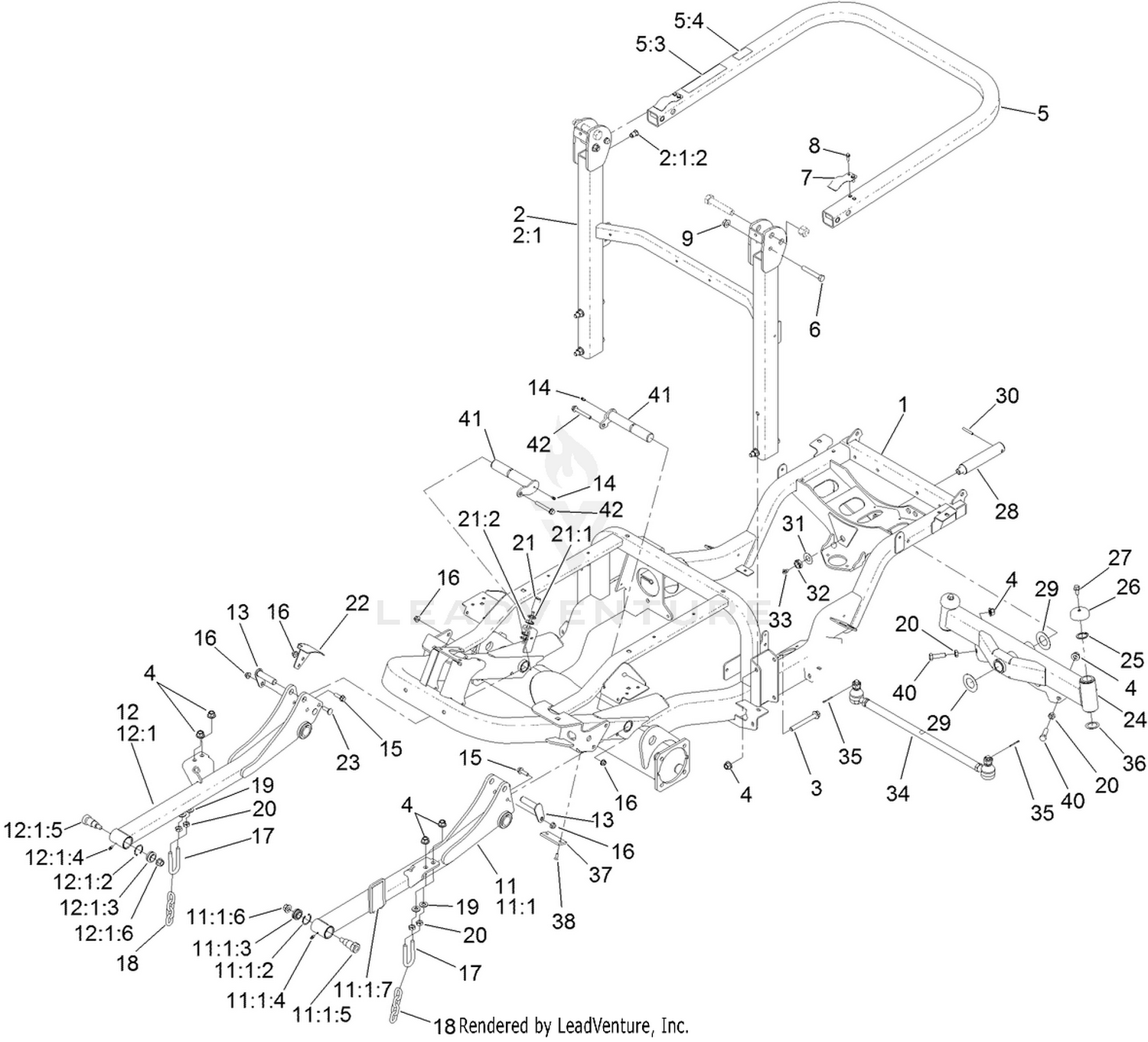

| Ref | Part Number | Description |
|---|
| 1 |
133-6450SP |
FRAME ASM Price: $5,825.55 |
| 2 |
139-6254SP |
ROPS ASM, LOWER Price: $533.18 |
| 3 |
117-3176 |
SCREW-HHF Price: $3.73 |
| 4 |
99-5107 |
NUT-LOCK Price: $1.77 |
| 5 |
138-7470 |
ROPS ASM, UPPER Price: $369.69 |
| 6 |
325-13 |
SCREW-HH Price: $3.57 |
| 7 |
110-5696 |
SPRING-LEAF Price: $43.16 |
| 8 |
32105-15 |
SCREW-HWH Price: $1.79 |
| 9 |
32128-23 |
NUT-HF Price: $1.51 |
| 11 |
138-7419SP |
LH LIFT ARM ASM Price: $477.95 |
| 12 |
138-7429SP |
RH LIFT ARM ASM Price: $477.95 |
| 13 |
138-7489 |
PIN (MACHINED) Price: $24.69 |
| 14 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 15 |
119-4061 |
SCREW-HHF Price: $0.75 |
| 16 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 17 |
104-0108 |
U-BOLT Price: $7.10 |
| 18 |
95-6231 |
CHAIN-HOC Price: $14.75 |
| 19 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 20 |
3218-5 |
NUT-JAM Price: $0.27 |
| 21 |
115-5300 |
PROXIMITY SWITCH ASM Price: $137.95 |
| 22 |
139-6170-0P |
BRACKET-SENSOR MOUNT [PRIMED] This part replaces 139-6170-03. Price: $27.58 |
| 23 |
3231-2 |
BOLT-CARR Price: $0.81 |
| 24 |
161-2404 |
AXLE ASM This part replaces 138-4588. Price: $469.98 |
| 25 |
32151-77 |
RING-RETAINING, EXTERNAL Price: $4.07 |
| 26 |
69-8890 |
CAP-SPINDLE Price: $13.32 |
| 27 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 28 |
140-6101 |
PIN ASM-AXLE PIVOT This part replaces 98-8173. Price: $42.42 |
| 29 |
99-8432 |
WASHER-THRUST Price: $4.21 |
| 30 |
32121-32 |
PIN-ROLL Price: $1.34 |
| 31 |
71-4540 |
WASHER-THRUST Price: $1.97 |
| 32 |
3296-15 |
NUT-LOCK, NI Price: $1.75 |
| 33 |
302-33 |
FITTING-GREASE Price: $2.31 |
| 34 |
133-6462 |
USE 133-6462-03 Price: $258.26 |
| 35 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 36 |
76-2980 |
WASHER-THRUST Price: $5.08 |
| 37 |
138-4452 |
PAD-STOP, DECK Price: $2.98 |
| 38 |
3289-4 |
SCREW-FH Price: $3.27 |
| 40 |
325-7 |
SCREW-HH Price: $1.53 |
| 41 |
138-4593 |
PIN Price: $65.93 |
