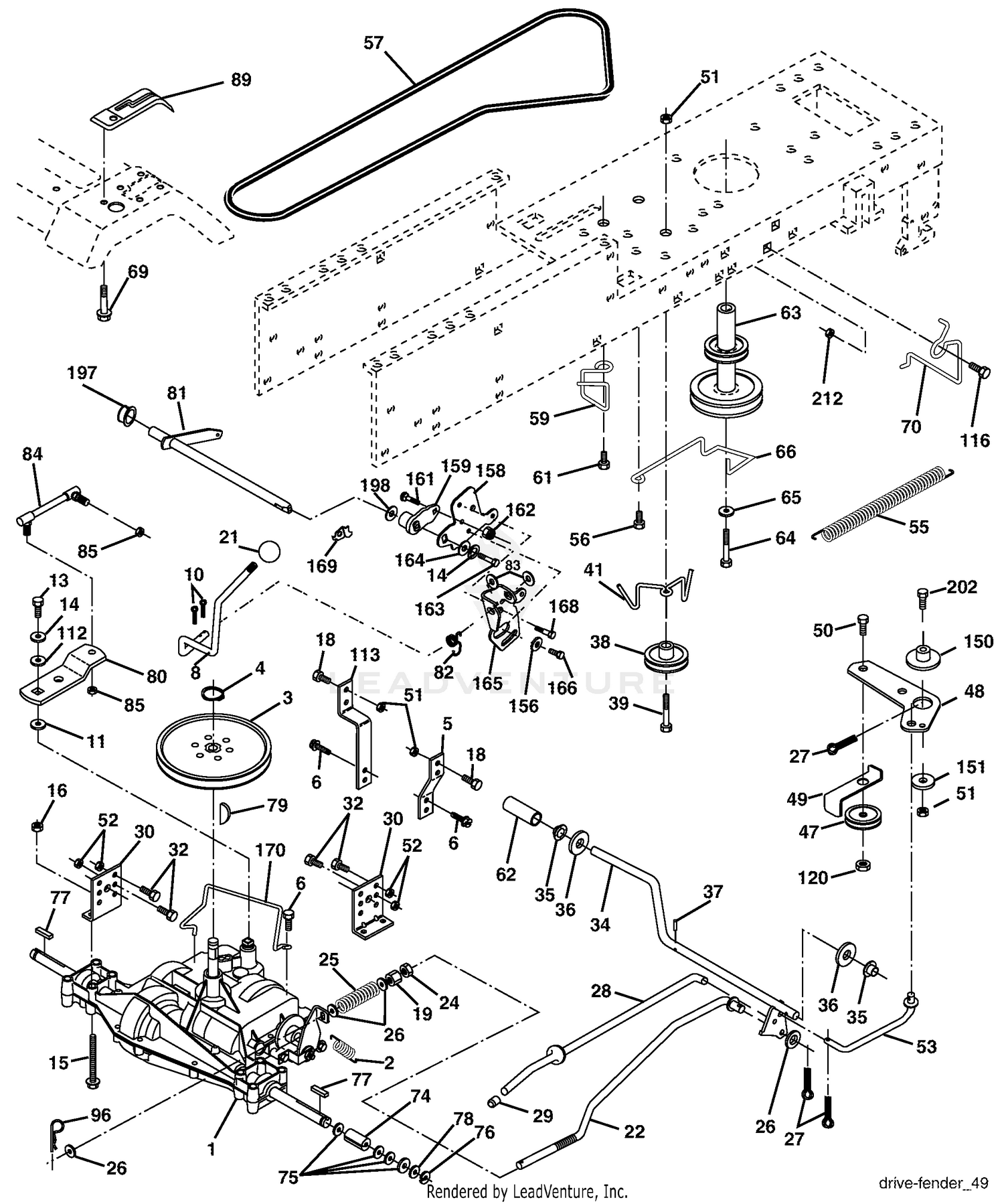

| Ref | Part Number | Description |
|---|
| 1 |
104-7515 |
HOUSING-BOX, TOOL Price: $333.97 |
| 2 |
104-7545 |
BRACKET-LATCH Price: $35.78 |
| 2 |
146682 |
Spring Return Brake T/a Zinc Price: Call Us |
| 3 |
123666X |
Pulley Transaxle 18" tires Price: Call Us |
| 3 |
58-4250 |
CATCH-MAGNETIC Price: $39.31 |
| 4 |
104-7548 |
ROD-HINGE Price: $13.77 |
| 4 |
12000028 |
Ring Retainer #5100-62 Price: Call Us |
| 5 |
121520X |
Strap Torque 30 Degrees Price: Call Us |
| 5 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 6 |
17000512 |
Screw 5/16-18 X 3/4 Price: Call Us |
| 6 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 7 |
32104-95 |
SCREW-HWH Price: $0.41 |
| 8 |
104-8321 |
TOOL BOX COVER ASM Price: $136.98 |
| 8 |
165619 |
Rod Shift Fender Adjust Lt Price: Call Us |
| 9 |
114-5604 |
DECAL-WARNING, CE This part replaces 106-6752. Price: $18.85 |
| 10 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 10 |
76020416 |
Pin Cotter 1/8 X 1 Cad Price: Call Us |
| 11 |
105701X |
Washer Plate Shf 388 Sq Hole Price: Call Us |
| 11 |
2412-74 |
R-CLAMP Price: $2.37 |
| 12 |
37-2690 |
CAPACITOR Price: $155.98 |
| 13 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 13 |
74550412 |
Bolt 1/4-28 Unf Gr 8 W/Patch Price: Call Us |
| 14 |
10040400 |
Washer Lock Hvy Helical Price: Call Us |
| 14 |
110-3286 |
DECAL-FUSE This part replaces 104-8323. Price: $4.71 |
| 15 |
32149-7 |
NUT-KEPS Price: $0.27 |
| 15 |
74490544 |
Bolt Hex FLGHD 5/16-18 Gr. 5 Price: Call Us |
| 16 |
32128-33 |
NUT-HF Price: $0.25 |
| 16 |
73800500 |
Nut Lock Hex w/ins 5/16-18 Price: Call Us |
| 17 |
105-0785-03 |
SUPPORT-PANEL, CONTROL Price: $23.20 |
| 18 |
105-0780 |
CONSOLE SUPPORT ASM Price: $81.48 |
| 18 |
74780616 |
Bolt, Fin Hex 3/8-16 UNC x 1 Gr. 5 Price: Call Us |
| 19 |
32151-72 |
RING-RETAINING Price: $1.59 |
| 19 |
73800600 |
Nut Lock 3/8-16 Unc Price: Call Us |
| 20 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 21 |
106933X |
Knob Price: Call Us |
| 21 |
95-9648 |
KNOB Price: $15.40 |
| 22 |
104-7514 |
HOUSING-CONSOLE Price: $216.82 |
| 22 |
130804 |
Rod Brake Blk Zinc 26 840 Price: Call Us |
| 23 |
233-48 |
KNOB Price: $10.92 |
| 24 |
105-7474 |
HARNESS-WIRE, CONSOLE Price: $930.01 |
| 24 |
73350600 |
Nut Hex Jam 3/8-16 Unc Price: Call Us |
| 25 |
106888X |
Spring Rod Brake 2 00 Zinc Price: Call Us |
| 25 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 26 |
19131316 |
Washer 13/32 X 13/16 X 16 Ga Price: Call Us |
| 26 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 27 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 27 |
76020412 |
Pin Cotter 1/8 X 3/4 Cad Price: Call Us |
| 28 |
175765 |
Rod Brake Parking LT/YT Price: Call Us |
| 28 |
3-8596 |
SPRING-COMPRESSION Price: $29.97 |
| 29 |
104-7539-03 |
BRACKET-PIVOT Price: $44.97 |
| 29 |
71673 |
Cap Brake Parking Price: Call Us |
| 30 |
174973 |
Bracket Mtg Transaxle Price: Call Us |
| 30 |
3-2858 |
DISC-FRICTION Price: $31.32 |
| 31 |
104-7538 |
THROTTLE LEVER ASM Price: $187.98 |
| 32 |
74760512 |
Bolt Hex Hd 5/16-18 unc X 3/4 Price: Call Us |
| 34 |
175578 |
Shaft Asm Pedal Foot Price: Call Us |
| 35 |
120183X |
Bearing Nylon Blk 629 Id Price: Call Us |
| 36 |
104-7543 |
STOP-LEVER, LIFT Price: $25.34 |
| 36 |
19211616 |
Washer 21/32 X 1 X 16 Ga Price: Call Us |
| 37 |
1572H |
Pin Roll 3/16 X 1" Price: Call Us |
| 37 |
66-2920 |
WASHER-FRICTION Price: $2.58 |
| 38 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 38 |
179114 |
Pulley Composite Flat Price: Call Us |
| 39 |
74760648 |
Bolt Fin Hex 3/8-16 unc X 3 Price: Call Us |
| 39 |
98-7611 |
CONTROLLER-GLOW Price: $316.53 |
| 40 |
99-7430 |
RELAY-MINI Price: $22.99 |
| 41 |
175556 |
Keeper Belt Flat Idler Price: Call Us |
| 41 |
283-67 |
PIN-CLEVIS Price: $2.04 |
| 42 |
282-28 |
CLEVIS-ADJUSTABLE Price: $58.02 |
| 43 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 44 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 45 |
106-7164 |
BRACKET-SPRING Price: $10.55 |
| 46 |
3272-1 |
PIN-COTTER Price: $0.25 |
| 47 |
127783 |
Pulley Idler V Groove Plastic Price: Call Us |
| 48 |
154407 |
Bellcrank Asm Price: Call Us |
| 49 |
123205X |
Retainer Belt Style Spring Price: Call Us |
| 50 |
72110612 |
Bolt Carr. Sh. 3/8-16 x 1-1/2 Gr. 5 Price: Call Us |
| 51 |
73680600 |
Nut Crownlock 3/8-16 Unc Price: Call Us |
| 52 |
73680500 |
Nut Crownlock 5/16-18 Unc Price: Call Us |
| 53 |
105710X |
Link Clutch Price: Call Us |
| 55 |
105709X |
Spring Return Clutch 6 75 Price: Call Us |
| 56 |
17060620 |
Screw 3/8-16 x 1-1/4 Price: Call Us |
| 57 |
130801 |
V-Belt Ground Drive 95 25 Price: Call Us |
| 59 |
169691 |
Keeper Belt Span Ctr Price: Call Us |
| 61 |
17120614 |
Screw 3/8-16 x .875 Price: Call Us |
| 62 |
8883R |
Cover Pedal Blk Round Price: Call Us |
| 63 |
175410 |
Engine Pulley Price: Call Us |
| 64 |
173937 |
Bolt Hex Price: Call Us |
| 65 |
10040700 |
Washer Lock Hvy Hlcl Spr 7/16 Price: Call Us |
| 66 |
154778 |
Keeper Belt Engine Foolproof Price: Call Us |
| 69 |
142432 |
Screw Hex wsh Hi Lo 1/4 x 1/2 unc Price: Call Us |
| 70 |
134683 |
Guide Belt Mower Drive RH Price: Call Us |
| 74 |
137057 |
Spacer Axle Price: Call Us |
| 75 |
121749X |
Washer 25/32 X 1 1/4 X 16 Ga Price: Call Us |
| 76 |
12000001 |
E-ring #5133-75 Price: Call Us |
| 77 |
123583X |
Key Square 2 0 X 1845/ 1865 Price: Call Us |
| 78 |
121748X |
Washer 25/32 X 1-5/8 X 16 Ga Price: Call Us |
| 79 |
2228M |
Key Woodruff #9 3/16 x 3/4 Price: Call Us |
| 80 |
131486 |
Arm Shift Price: Call Us |
| 81 |
165594 |
Shaft Asm Cross Tapered PMST/20 Price: Call Us |
| 82 |
123782X |
Spring Torsion T/a Price: Call Us |
| 83 |
19171216 |
Washer 17/32 X 3/4 X 16 Ga Price: Call Us |
| 84 |
166228 |
Link Transaxle PMST/18" Zinc Price: Call Us |
| 85 |
150360 |
Nut Lock Center 1/4 - 28 FNTHD Price: Call Us |
| 89 |
169372X428 |
Console Shift STLT Price: Call Us |
| 96 |
4497H |
Retainer Spring 1" Price: Call Us |
| 112 |
19091210 |
Washer 9/32 x 3/4 x 10 Ga. Price: Call Us |
| 113 |
127285X |
Strap Torque LT Price: Call Us |
| 116 |
72140608 |
Bolt Rdhd Sq Neck 3/8-16 x 1 Price: Call Us |
| 120 |
73900600 |
Nut Lock Flg. 3/8-16 Unc Price: Call Us |
| 150 |
175456 |
Spacer Retainer Price: Call Us |
| 151 |
19133210 |
Washer 13/32 x 2 x 10 Price: Call Us |
| 156 |
166002 |
Washer Srrted 5/16ID x 1.125 Price: Call Us |
| 158 |
165589 |
Bracket Shift Mount Price: Call Us |
| 159 |
183900 |
Hub Tapered Flange Shift Lt Price: Call Us |
| 161 |
72140406 |
Bolt Rdhd Sqnk 1/4-20 x 3/4 Price: Call Us |
| 162 |
73680400 |
Nut Crownlock 1/4-20 Unc Price: Call Us |
| 163 |
74780416 |
Bolt Hex Fin 1/4-20 Unc x 1 Gr. 5 Price: Call Us |
| 164 |
19091210 |
Washer 9/32 x 3/4 x 10 Ga. Price: Call Us |
| 165 |
165623 |
Bracket Pivot Lever Price: Call Us |
| 166 |
166880 |
Screw 5/16-18 x 5/8 Price: Call Us |
| 168 |
165492 |
Bolt Shoulder 5/16-18 x .561 Price: Call Us |
| 169 |
165580 |
Plate Fastening Price: Call Us |
| 170 |
178394 |
Keeper Belt Transaxle Gear Price: Call Us |
| 197 |
169613 |
Nyliner Snap-In Price: Call Us |
| 198 |
169593 |
Washer Nyliner Price: Call Us |
| 202 |
72110614 |
Bolt Rd Hd 3/8-16 Unc x 1-3/4 Gr. 5 Price: Call Us |
