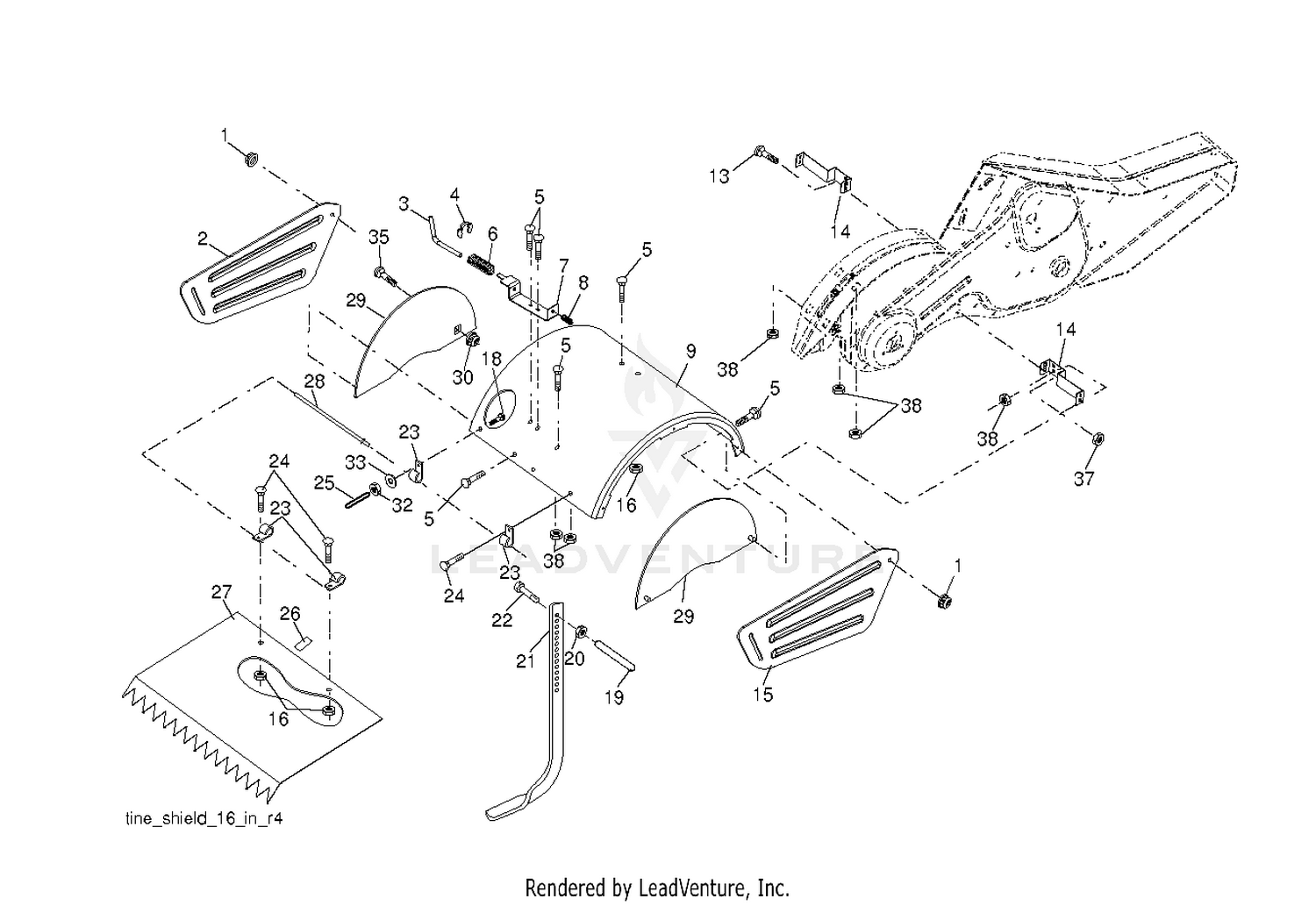

| Ref | Part Number | Description |
|---|
| 1 |
121-5896 |
BRUSH-SCRAPER, NARROW (21 INCH) Price: $126.35 |
| 1 |
583612701 |
NUT HEX,LOCK,FLAN This part replaces 873900500. Price: $3.99 |
| 1 |
631615 |
SHAFT & LEV Price: $6.48 |
| 2 |
115-7364 |
BLOCK-CLAMP, SCRAPER Price: $17.51 |
| 3 |
115-7372 |
SCREW-HH Price: $0.47 |
| 3 |
532008393 |
STAKE PIN TI Price: $17.99 |
| 3 |
631616 |
SHUTTER Price: $1.20 |
| 4 |
650506 |
SCREW Price: $0.87 |
| 4 |
812000035 |
RING, KLIP Price: $3.99 |
| 5 |
532180847 |
BOLT, RDHD SQNK 5/16-18 X 3/4 Price: $2.99 |
| 5 |
631767 |
SPRING Price: $1.25 |
| 6 |
532008394 |
SPRING TI Price: $3.99 |
| 6 |
631183 |
WASHER This part replaces 631971. Price: $1.25 |
| 7 |
532008392 |
LATCH BRACKET TI Price: $3.99 |
| 7 |
631184 |
WASHER Price: $1.25 |
| 8 |
532124736 |
SHIELD,TINE** Price: $3.33 |
| 8 |
631972 |
WASHER Price: $1.25 |
| 9 |
532442961 |
SHIELD.PNT.TINE.ORANGE.MS668 This part replaces 532171616. Price: $74.99 |
| 9 |
632047A |
PRIMER This part replaces 632047. Price: $3.55 |
| 11 |
631027 |
WELCH PLUG Price: $1.17 |
| 12 |
631021B |
INLET NEEDLE KIT This part replaces 631021. Price: $4.82 |
| 13 |
631022 |
CLIP Price: $1.25 |
| 13 |
872110510 |
BOLT.CARRIAGE.5/16-18 Price: $3.99 |
| 14 |
581813501 |
BRACKET.TINE.SHIELD.TILLER.BLA This part replaces 532124311. Price: $9.99 |
| 14 |
632019A |
FLOAT This part replaces 632019. Price: $5.85 |
| 15 |
631024 |
FLOAT SHAFT Price: $1.17 |
| 16 |
631700 |
FLOAT BOWL Price: $2.99 |
| 16 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 873900400. Price: $2.99 |
| 18 |
872040410 |
BOLT Price: $3.99 |
| 19 |
532102701 |
GRIP CRT Price: $3.99 |
| 20 |
873220600 |
NUT.HEX.3/8-16UNC Price: $3.99 |
| 21 |
532102156 |
STAKE.DEPTH.16.CRT.BLACK Price: $22.99 |
| 21 |
631334A |
GASKET This part replaces 631334. Price: $2.25 |
| 22 |
632071 |
NUT Price: $5.16 |
| 22 |
874930632 |
BOLT.375-16 Price: $3.99 |
| 23 |
532004440 |
HINGE CRT Price: $3.99 |
| 24 |
872140404 |
BOLT Price: $3.99 |
| 25 |
532006712 |
VINYL CAP This part replaces 532124717. Price: $3.99 |
| 25 |
631028A |
GASKET This part replaces 631028. Price: $1.95 |
| 26 |
532109227 |
PAD IDLER TI Price: $2.99 |
| 27 |
532440448 |
SHIELD.LEVELING.17".ORANGE This part replaces 532102695. Price: $27.99 |
| 28 |
532120588 |
PIN.HINGE.TILLER Price: $3.99 |
| 29 |
585414301 |
KIT.TILLER.SIDE.SHIELD This part replaces 532441810. Price: $34.99 |
| 30 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873970500. Price: $2.99 |
| 32 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $3.99 |
| 33 |
810040400 |
LOCKWASHER Price: $3.99 |
| 35 |
872110505 |
BOLT Price: $3.99 |
| 37 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK Price: $2.99 |
