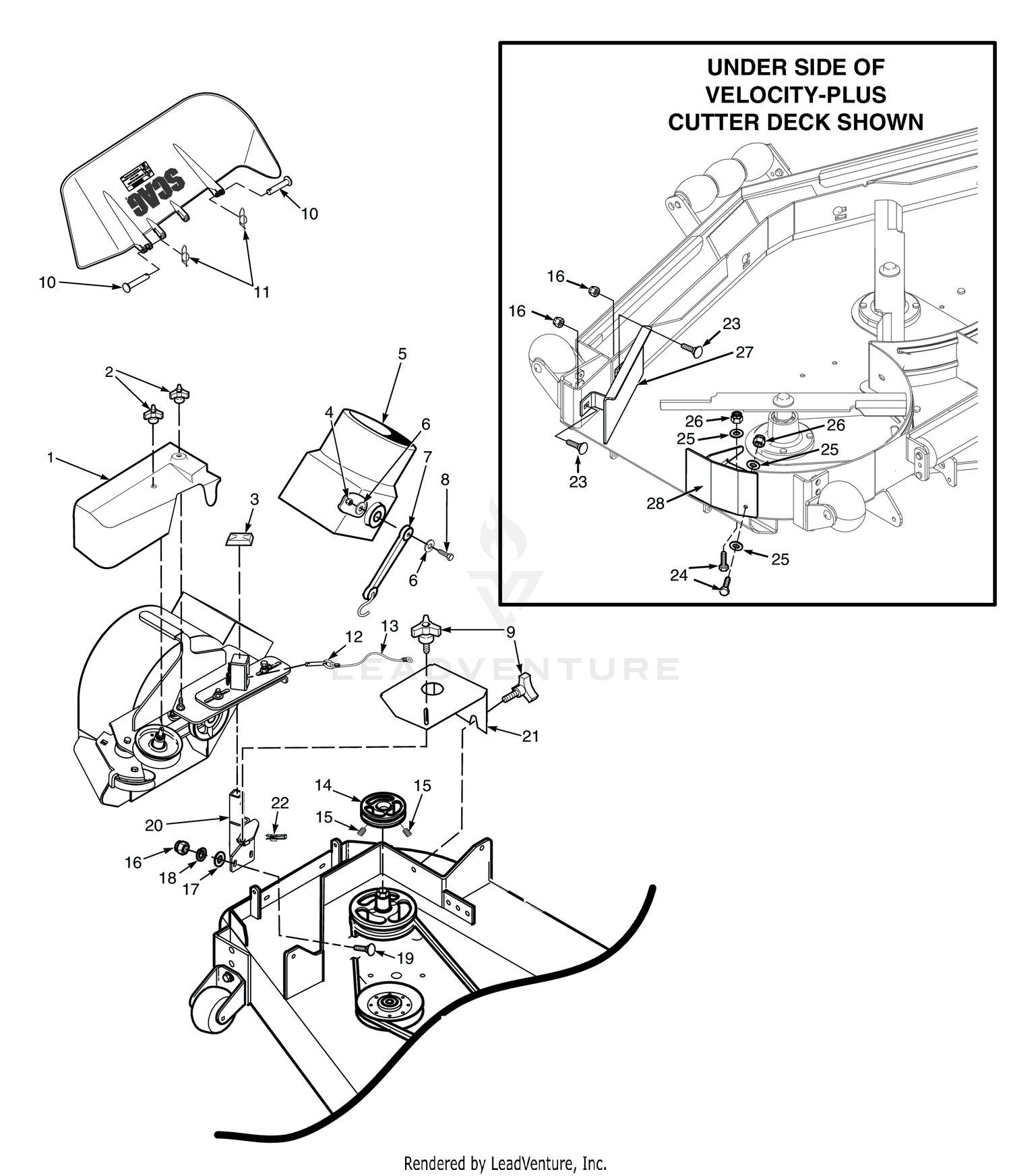

| Ref | Part Number | Description |
|---|
| 1 |
486350 |
Belt Cover, 61GC-VRII This part replaces 483227. Price: Call Us |
| 2 |
04029-04 |
Wing Nut, 3/8-16 (Small) Top side Price: Call Us |
| 3 |
483223 |
Cap, Square Vinyl Price: Call Us |
| 4 |
04021-08 |
HEX, NUT, ELASTIC STOP LOCK, 1/4-20 Price: Call Us |
| 5 |
461723 |
Adapter, Blower GC-STC, Price: Call Us |
| 6 |
04040-14 |
Flatwasher, 1/4" (.312 x .750 x .065") Price: Call Us |
| 7 |
48137-04 |
Rubber Strap 7-3/4" Price: Call Us |
| 8 |
04001-59 |
SERR. FLG. HEX HEAD CAPSCREW, 5/16-18 X 3/4 Price: Call Us |
| 9 |
481625-01 |
Knob, w/stud 3/8-16 x 1-1/4" Price: Call Us |
| 10 |
04064-15 |
Clevis Pin, 5/16 x 1-1/2" Price: Call Us |
| 11 |
04069-03 |
Pin, Rue Cotter 5/16 Dia. Price: Call Us |
| 12 |
04067-07 |
Pin, Ring 1/2 x 2-1/4" Price: Call Us |
| 13 |
481547 |
Lanyard, Deck Height Pin Price: Call Us |
| 14 |
482377 |
Pulley, 5-1/2" Dia. - 1.125" Bore, (61") Price: Call Us |
| 15 |
04012-04 |
Setscrew, Hex Socket Knurl Cup Pt. 5/16 - 18 (nylock) Price: Call Us |
| 16 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 17 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 18 |
04041-07 |
Flatwasher, 3/8" Special (.391 x .938 x .105) Price: Call Us |
| 19 |
04003-11 |
SHORT SQ. NECK CARRIAGE BOLT, 3/8-16 X 1-1/4" Price: Call Us |
| 20 |
461894 |
Mounting Post Weldment, Blower, (61") Price: Call Us |
| 21 |
462418 |
Belt Cover Assembly, GC-STT-61V w/Cap Price: Call Us |
| 22 |
04110-03 |
U-Nut, 3/8-16 (short) Price: Call Us |
| 23 |
04003-23 |
Carriage Bolt, 3/8-16 x 1.0" Price: Call Us |
| 24 |
04001-09 |
Bolt, Heax Head 5/16-18 x 1" (48V / 52V) Price: Call Us |
| 25 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI) Price: Call Us |
| 26 |
04021-10 |
HEX NUT, ELASTIC STOP LOCK, 5/16-18 Price: Call Us |
| 27 |
452384 |
Baffle Weldment - 61" Deck Price: Call Us |
| 28 |
424212 |
Baffle, Turbo - 61" Deck Price: Call Us |
| 424211 |
Baffle, |
Turbo 52" Deck Price: Call Us 424211 |
| 428278 |
Belt |
Cover, (STT-52 & STTII-52) Price: Call Us 428278 |
| 452383 |
Baffle |
Weldment, 52V Deck Price: Call Us 452383 |
| 463219 |
Mounting |
Post Weldment, Blower, (STT-52 & STTII-52) Price: Call Us 463219 |
| 484368 |
Cap, |
Spindle 61" Only Price: Call Us 484368 |
| 485715 |
Belt |
Cover, (STT-52 & STTII-52) Price: Call Us 485715 |
