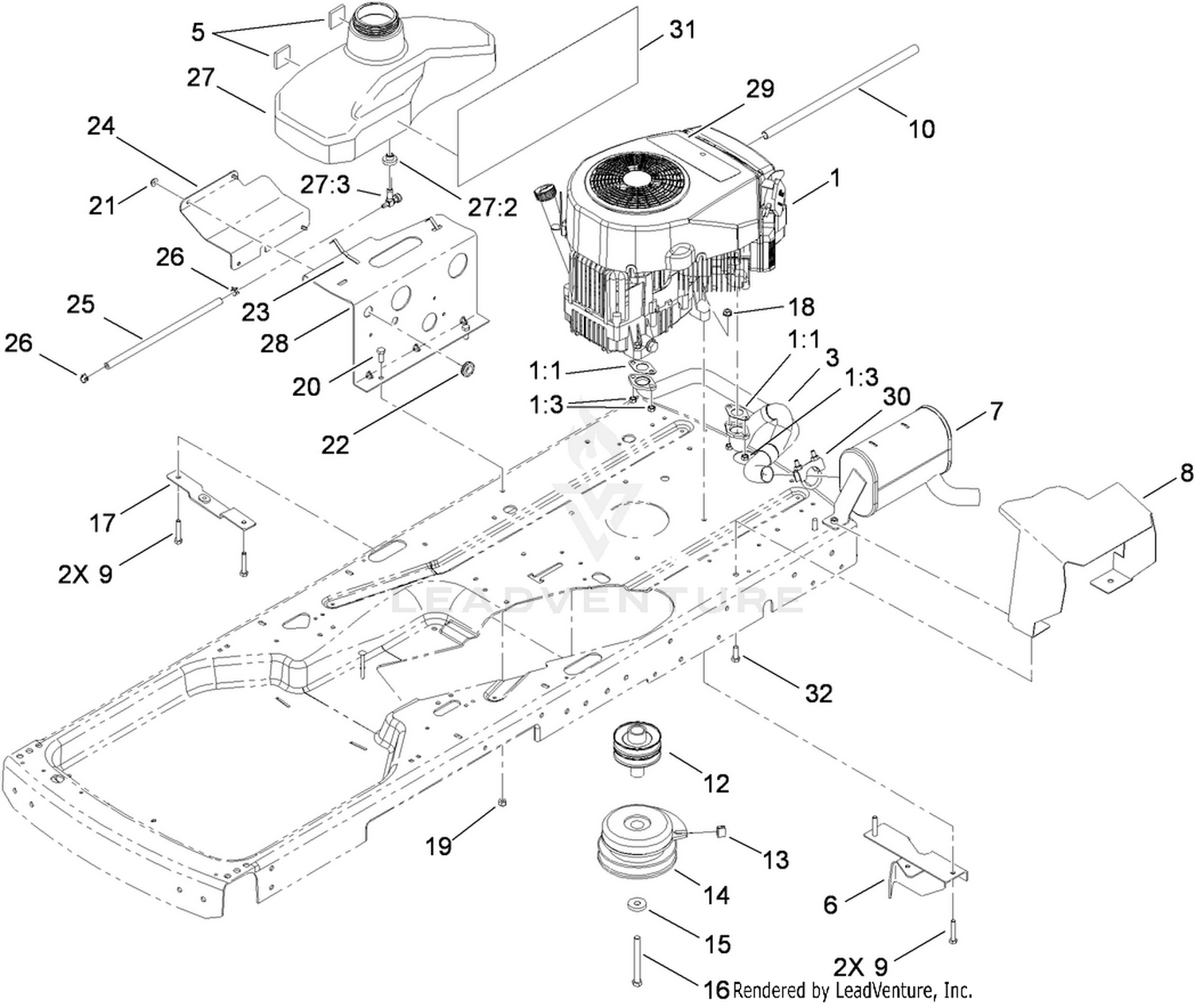

Engine and Fuel Tank Assembly
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 114-3667 | MANIFOLD Price: $188.04 |
| 5 | 104-2488 | FOAM-SWITCH, SEAT Price: $4.36 |
| 6 | 107-4873 | BRACKET-PIVOT Price: $32.60 |
| 7 | 114-3666 | MUFFLER Price: $300.84 |
| 8 | 114-9425-03 | SHIELD-MUFFLER Price: $75.20 |
| 9 | 322-9 | SCREW-HH Price: $3.09 |
| 10 | 106-7022 | TUBE-DRAIN, OIL Price: $8.99 |
| 12 | 105-3472 | PULLEY-ENGINE Price: $140.16 |
| 13 | 98-5023 | BUMPER Price: $4.36 |
| 14 | 104-3334 | CLUTCH-ELECTRIC Price: $315.91 |
| 15 | 112843 | WASHER Price: $2.16 |
| 16 | 3212-16 | SCREW-HH Price: $1.56 |
| 17 | 106-2156 | PLATE-MOUNT, IDLER Price: $21.27 |
| 18 | 32128-25 | NUT-HF Price: $3.19 |
| 19 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 20 | 322-4 | SCREW-HH Price: $0.35 |
| 21 | 46-8560 | SCREW-HHFTF Price: $1.79 |
| 22 | 237-124 | GROMMET Price: $2.30 |
| 23 | 609830 | SPRING Price: $3.26 |
| 24 | 108-2315-03 | PLATE-SUPPORT Price: $22.55 |
| 25 | 114-9448 | HOSE-FUEL Price: $7.54 |
| 26 | 2412-98 | CLAMP-HOSE Price: $1.39 |
| 27 | 105-3464 | DISCONTINUED Price: Call Us |
| 28 | 108-2314-03 | PLATE-TANK Price: $69.59 |
| 29 | 107-9246 | DECAL Price: $9.00 |
| 30 | 114-3668 | CLAMP-MUFFLER Price: $18.80 |
| 31 | 112-4776 | FOIL-SHIELD, HEAT Price: $35.72 |
