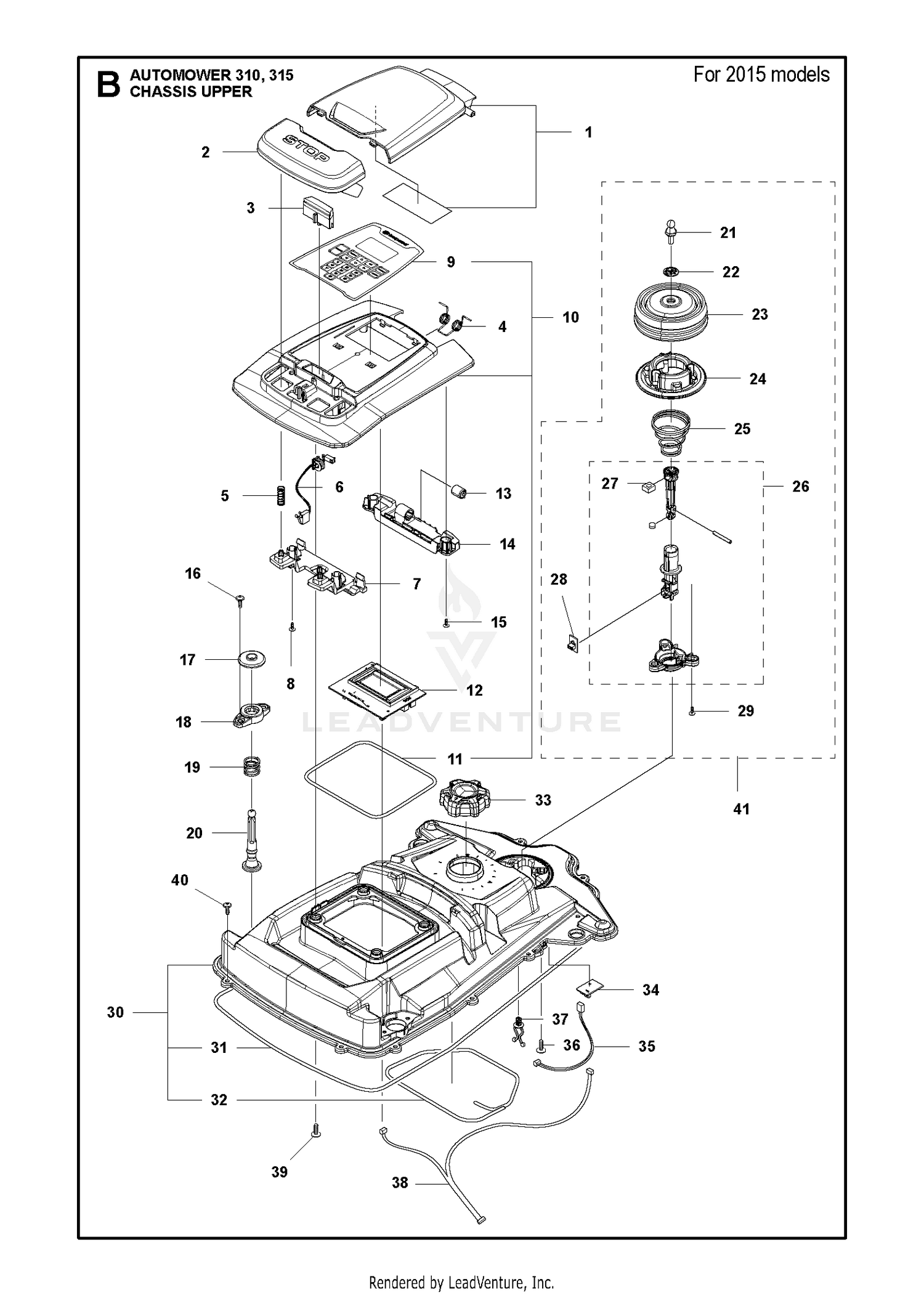

| Ref | Part Number | Description |
|---|
| 1 |
587651301 |
HATCH KIT Price: $27.99 |
| 2 |
585275601 |
BUTTON STOP Price: $14.99 |
| 3 |
585275901 |
LOCK Price: $8.99 |
| 4 |
585255401 |
TORSION SPRING DT=1,3MM Price: $2.99 |
| 5 |
576242201 |
SPRING LOCK STOP BUTTON Price: $2.99 |
| 6 |
574480302 |
SWITCH STOP BUTTON NO ANCHOR Price: $27.99 |
| 7 |
585275701 |
SUPPORT REAR Price: $5.99 |
| 8 |
575543314 |
SCREW 14MM Price: $3.99 |
| 11 |
588616101 |
SEALING STRIP CHASSIS UPPER 10 This part replaces 574874708. Price: $12.99 |
| 12 |
584390901 |
PRINTED CIRCUIT ASSY PCBA MMI Price: $59.99 |
| 13 |
580352302 |
DAMPER TORSION FA 1100 Price: $6.99 |
| 14 |
585275401 |
SUPPORT FRONT Price: $8.99 |
| 15 |
575543314 |
SCREW 14MM Price: $3.99 |
| 16 |
574450101 |
SCREW ITXPANT Price: $3.99 |
| 17 |
585298201 |
GASKET COLUMN Price: $4.99 |
| 18 |
585298301 |
HOLDER COLUMN Price: $4.99 |
| 19 |
585298101 |
SPRING 1.8X17.2X20 Price: $3.99 |
| 20 |
585298001 |
COLUMN Price: $5.99 |
| 21 |
580526701 |
STUD SNAPLOC Price: $2.99 |
| 22 |
579525701 |
WASHER JOYSTICK Price: $2.99 |
| 23 |
579474601 |
BELLOWS LIFT-COLLISION Price: $9.99 |
| 24 |
579484801 |
RETAINER COLLISION SPRING Price: $5.99 |
| 25 |
580672501 |
SPRING COLLISION JOYSTICK Price: $6.99 |
| 26 |
587448802 |
JOYSTICK KIT Price: $19.99 |
| 27 |
503226601 |
NUT Price: $3.99 |
| 28 |
592852301 |
PRINTED CIRCUIT ASSY PCBA LIFT This part replaces 579669001. Price: $19.99 |
| 29 |
575543314 |
SCREW 14MM Price: $3.99 |
| 30 |
587448901 |
CHASSIS KIT UPPER Price: $54.99 |
| 31 |
574874709 |
SEALING STRIP P 15 CHASSI LOW Price: $7.99 |
| 32 |
588616101 |
SEALING STRIP CHASSIS UPPER 10 This part replaces 574874708. Price: $12.99 |
| 33 |
585281401 |
KNOB HEIGHT ADJUSTMENT Price: $7.99 |
| 34 |
592909501 |
PRINTED CIRCUIT ASSY COLLISION Price: $22.99 |
| 36 |
574450101 |
SCREW ITXPANT Price: $3.99 |
| 37 |
580682901 |
HOLDER TWIST LOCK Price: $3.99 |
| 38 |
585208601 |
LOOM MMI Price: $27.99 |
| 39 |
574450101 |
SCREW ITXPANT Price: $3.99 |
| 40 |
574450101 |
SCREW ITXPANT Price: $3.99 |
| 41 |
581620903 |
JOYSTICK KIT Price: $59.99 |
