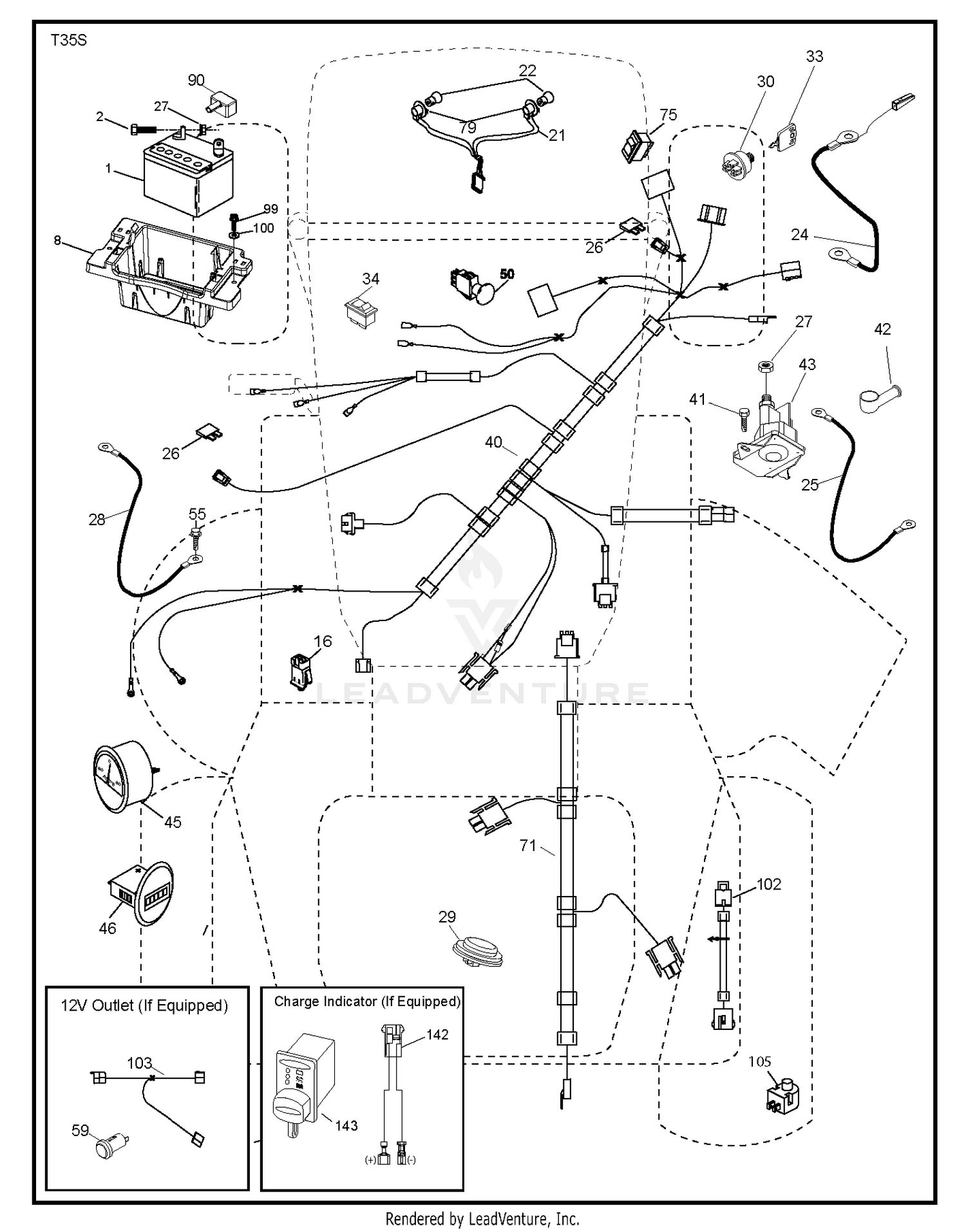

| Ref | Part Number | Description |
|---|
| 1 |
322-2 |
SCREW-HH Price: $0.69 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $149.99 |
| 2 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
74-0720 |
TUBE-MANUAL Price: $22.99 |
| 4 |
2412-133 |
CLAMP-R Price: $3.19 |
| 5 |
104-4620 |
SEAT This part replaces 92-1180. Price: $273.15 |
| 6 |
51-0790 |
ADJUSTER-SEAT, LH Price: $127.92 |
| 7 |
83-1270 |
SEAT SUPPORT ASM Price: $350.78 |
| 8 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 8 |
587205101 |
TRAY.BATTERY BOX.FRONT Price: $14.99 |
| 9 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 10 |
68-5100 |
ROD-SEAT, PROP Price: $32.13 |
| 11 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 12 |
68-5310 |
CLIP-ROD, PROP Price: $6.35 |
| 13 |
321-3 |
SCREW-HH Price: $0.28 |
| 14 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 15 |
3284-3 |
PIN-GROOVED Price: $2.24 |
| 16 |
51-0350 |
PIN-SPRING, SEAT Price: $11.90 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 17 |
3-6685 |
SPRING Price: $10.99 |
| 18 |
72-4320 |
SWITCH-BALL Price: $90.18 |
| 19 |
237-30 |
O-RING Price: $2.50 |
| 20 |
43-8610 |
GUIDE Price: $23.35 |
| 21 |
43-8600 |
SPRING-COMPRESSION Price: $3.03 |
| 21 |
532400252 |
HARNESS.LIGHT W/4152J BULBS Price: $19.99 |
| 22 |
43-8860 |
PLUNGER-SWITCH Price: $11.85 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 23 |
43-8620 |
PIN-GUIDE, SWITCH Price: $88.57 |
| 24 |
237-7 |
O-RING Price: $8.82 |
| 24 |
585555601 |
CABLE.FRBATT.W/WIRE.8GA.8 Price: $7.99 |
| 25 |
218-461 |
NUT-HH Price: $2.50 |
| 25 |
585555501 |
CABLE.STARTER.8GA.17.5 This part replaces 532412895. Price: $7.99 |
| 26 |
43-8870 |
BOOT-SWITCH Price: $47.92 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
49-5880 |
SHAFT-SUPPORT, SEAT Price: $17.88 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
256-155 |
BUSHING-FLANGE Price: $1.76 |
| 28 |
532416588 |
CABLE.GROUND.21"BLK.8GA.90T Price: $11.99 |
| 29 |
3274-12 |
SCREW-HSH Price: $0.81 |
| 30 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 31 |
51-0780 |
SLIDER-SEAT Price: $116.02 |
| 32 |
83-1840-01 |
COVER-VALVE, RH This part replaces 83-1840. Price: $27.61 |
| 33 |
532411935 |
KEY.CHAIN.BLISTER.PACK.GEN.INT This part replaces 532411933. Price: $8.99 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 35 |
92-6533 |
SEAT CUSHION KIT Price: $290.43 |
| 36 |
92-6534 |
ORDER COMPLETE SEAT Price: Call Us |
| 40 |
351-78 |
EDGING Price: $60.98 |
| 40 |
501133601 |
HARNESS.DASH.EDIFF.RND.CHG Price: $69.99 |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
582042802 |
Solenoids This part replaces 582042801. Price: $22.99 |
| 45 |
529910801 |
AMMETER This part replaces 587553903. Price: $27.99 |
| 46 |
529910701 |
HOUR METER This part replaces 587554003. Price: $69.99 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK Price: $24.99 |
| 55 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 59 |
596941001 |
Outlets This part replaces 532400303. Price: $11.99 |
| 71 |
580513001 |
HARNESS.IGN.CHASSIS.TEX.DCKLOC Price: $37.99 |
| 75 |
580366401 |
SWITCH.ON/OFF.(DIFF.LOCK) Price: $32.99 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $8.99 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY Price: $4.99 |
| 99 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 100 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 102 |
532404454 |
HARNESS PIGTAIL PCH TEX ROS Price: $14.99 |
| 103 |
532421747 |
HARNESS.PIGTAIL.12V.OUTLET. Price: $12.99 |
| 105 |
532407568 |
REVERSE SWITCH Price: $12.99 |
| 142 |
583593501 |
CTEK CHARGE PORT W/HARNESS This part replaces 583857801. Price: $27.99 |
| 143 |
583593501 |
CTEK CHARGE PORT W/HARNESS This part replaces 532448059. Price: $27.99 |
