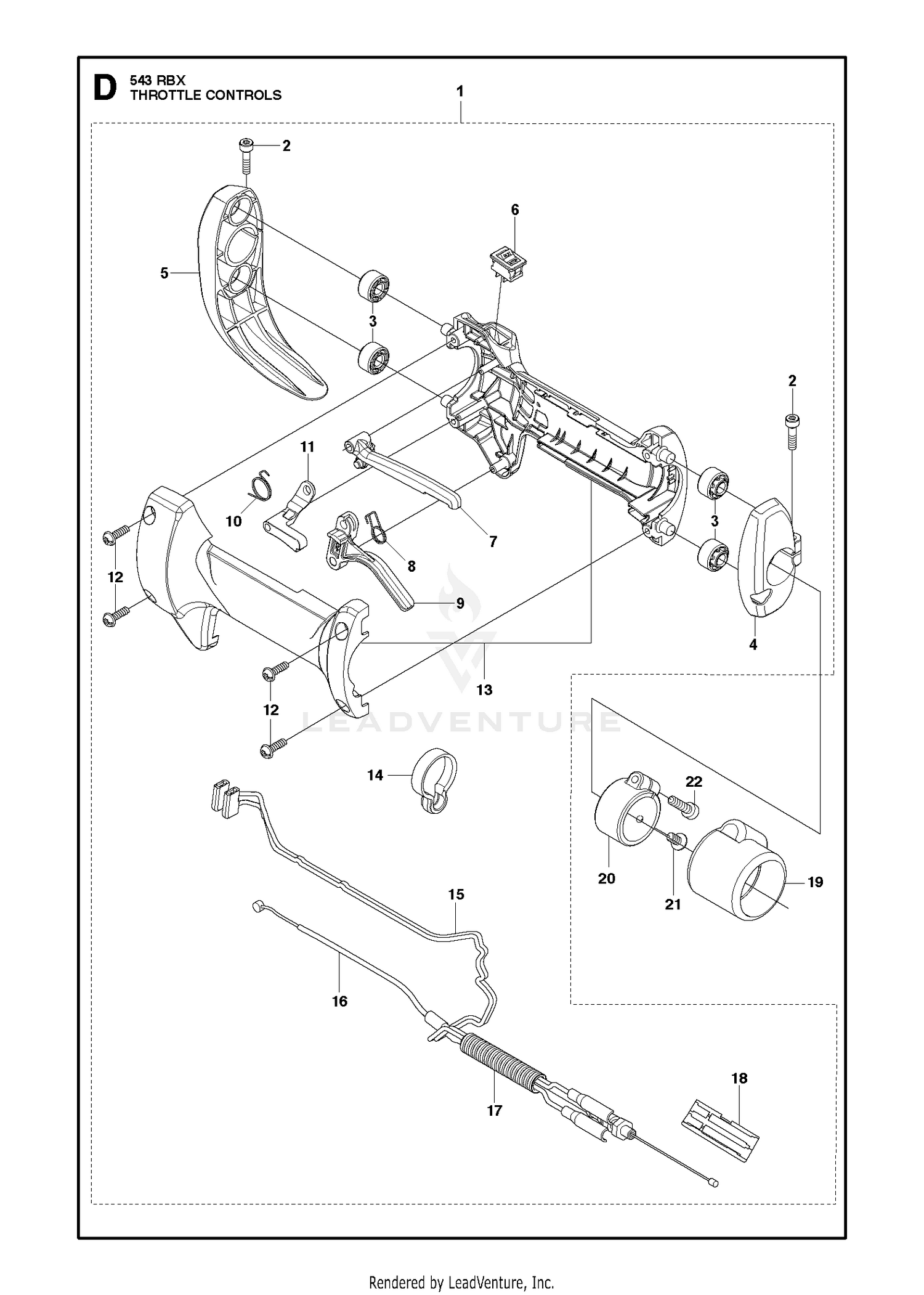

THROTTLE CONTROLS
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3296-23 | NUT-LOCK, NI Price: $0.52 |
| 1 | 574735103 | NEEDS DESCRIPTION Price: Call Us |
| 2 | 107-3395 | WASHER-HARDENED Price: $1.49 |
| 2 | 506689001 | BOLT TORX This part replaces 504114301. Price: $3.99 |
| 3 | 105-1041 | PIN-SPRING Price: $1.88 |
| 3 | 521667701 | Price: Call Us |
| 4 | 325-9 | SCREW-HH Price: $1.87 |
| 4 | 529258701 | Price: Call Us |
| 5 | 110-4614 | SCREW-HH Price: $3.44 |
| 5 | 574509301 | Price: Call Us |
| 6 | 105-1016 | WASHER-FLAT Price: $17.48 |
| 6 | 521851601 | SWITCH Price: $9.99 |
| 7 | 593044201 | NEEDS DESCRIPTION Price: Call Us |
| 8 | 110-4573 | ARM-STOMPER Price: $183.81 |
| 8 | 521667201 | Price: Call Us |
| 9 | 110-4556 | BEARING-BALL Price: $17.55 |
| 9 | 573977101 | Price: Call Us |
| 10 | 32151-76 | RING-RETAINING, INTERNAL Price: $4.66 |
| 10 | 511591801 | SPRING Price: $2.99 |
| 11 | 110-4576 | CRANKARM-NO.6 Price: $485.37 |
| 11 | 529259201 | LEVER JOINT Price: $2.99 |
| 12 | 105-0965 | BEARING-BALL Price: $33.28 |
| 12 | 521517901 | SCREW Price: $2.99 |
| 13 | 105-0956 | HOUSING-BEARING Price: $293.06 |
| 13 | 584839602 | NEEDS DESCRIPTION Price: Call Us |
| 14 | 105-1017 | SPACER Price: $18.32 |
| 15 | 110-4546 | KEY-SQUARE Price: $6.70 |
| 15 | 521525801 | Price: Call Us |
| 16 | 110-4572 | CRANKARM-NO. 3, 5, 7 Price: $248.95 |
| 16 | 574270501 | Price: Call Us |
| 17 | 110-4570 | COUPLING-N0.5 Price: $161.76 |
| 17 | 521524701 | NEEDS DESCRIPTION Price: Call Us |
| 18 | 3296-53 | NUT-LOCK, NI Price: $1.47 |
| 18 | 521528601 | Price: Call Us |
| 19 | 105-0974-03 | PLATE-COUPLING Price: $105.87 |
| 19 | 574509201 | Price: Call Us |
| 20 | 105-0963 | MOUNT-ISO, CRANK Price: $157.45 |
| 20 | 574509101 | Price: Call Us |
| 21 | 325-6 | SCREW-HH Price: $1.42 |
| 21 | 521515201 | Price: Call Us |
| 22 | 327-29 | SCREW-HH Price: $5.77 |
| 22 | 506689001 | BOLT TORX Price: $3.99 |
| 23 | 110-4549 | WASHER-SNUBBING Price: $7.53 |
