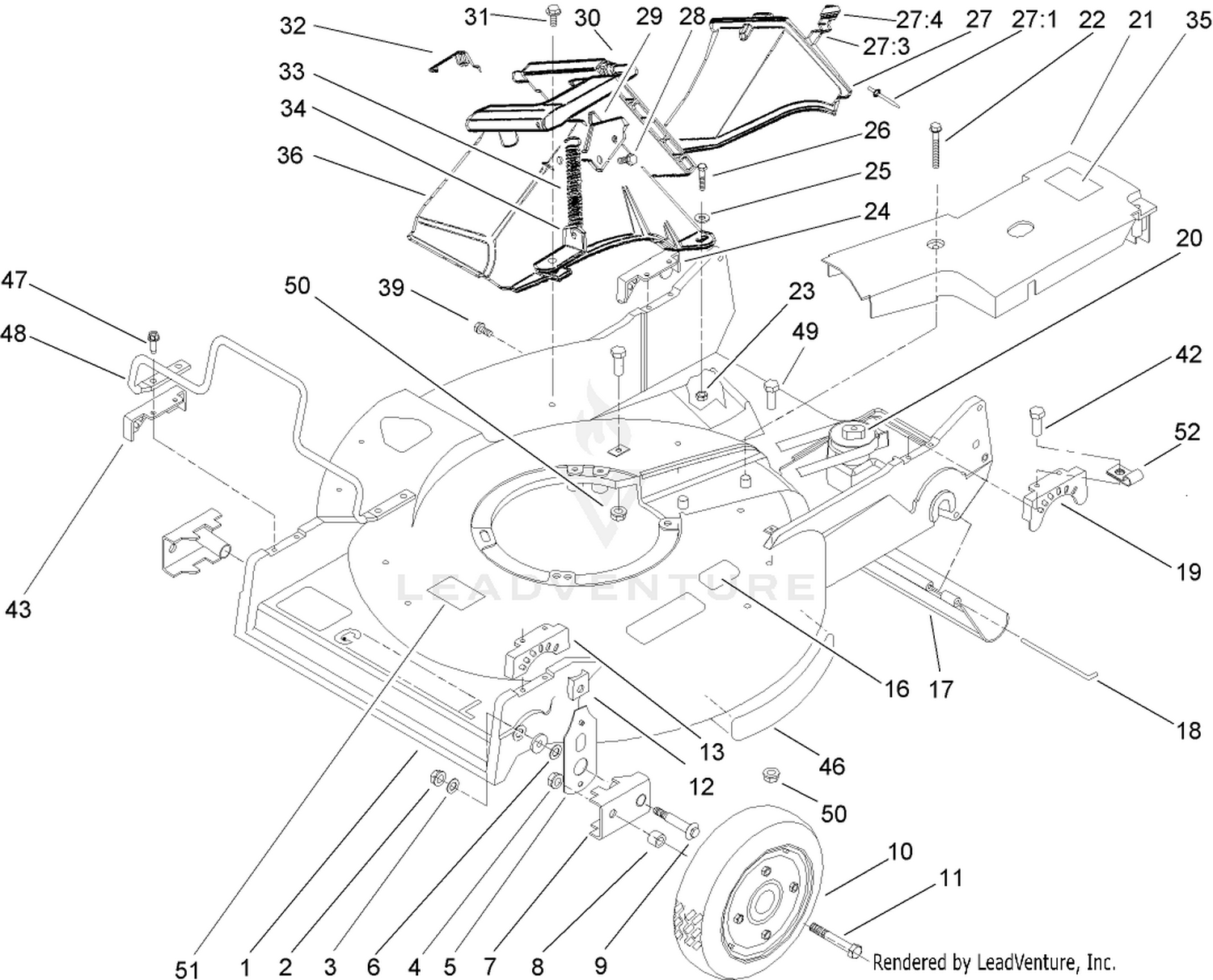

| Ref | Part Number | Description |
|---|
| 1 |
98-7139 |
HOUSING ASM Price: $231.29 |
| 2 |
3296-6 |
NUT-LOCK Price: $1.49 |
| 3 |
40-1940 |
WASHER Price: $1.59 |
| 4 |
32152-2 |
NUT-LOCK, CONE Price: $1.79 |
| 5 |
66-7560 |
FRONT SPRING ARM ASM Price: $8.97 |
| 6 |
257-3 |
WASHER-THRUST Price: $10.46 |
| 7 |
61-8300 |
ARM-PIVOT, FRONT Price: $19.06 |
| 8 |
52-2480 |
SPACER-WHEEL Price: $5.89 |
| 9 |
114-3468 |
SCREW-SHOULDER This part replaces 27-6232. Price: $3.15 |
| 10 |
121-1380 |
WHEEL AND TIRE ASM This part replaces 100-2870. Price: $92.99 |
| 11 |
323-12 |
SCREW-HH Price: $1.14 |
| 12 |
25-7740 |
KNOB-ARM Price: $3.38 |
| 13 |
49-8760 |
QUADRANT-FRONT, LH Price: $17.49 |
| 16 |
105-2625 |
DECAL-STD, SAFETY Price: $3.79 |
| 17 |
112-9989 |
SHIELD-TRAILING This part replaces 44-0580. Price: $18.32 |
| 18 |
33-3208 |
ROD-SHIELD Price: $9.44 |
| 19 |
49-8740 |
QUADRANT-REAR, LH Price: $17.49 |
| 20 |
74-1860 |
GEAR CASE ASM This part replaces 74-1861. Price: $487.28 |
| 21 |
74-1770 |
COVER-BELT Price: $29.22 |
| 22 |
37-7260 |
SCREW-HHFTF Price: $3.64 |
| 23 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 24 |
49-8750 |
QUADRANT-REAR, RH Price: $17.49 |
| 25 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 26 |
321-7 |
SCREW-HH Price: $4.19 |
| 27 |
77-0500 |
DISCHARGE PLUG ASM Price: $43.77 |
| 28 |
46-8090 |
SCREW-PLASTITE Price: $1.84 |
| 29 |
93-3154 |
LATCH-PLATE Price: $4.89 |
| 30 |
93-7351 |
DISCHARGE DOOR ASM Price: $74.60 |
| 31 |
46-6811 |
SCREW-HWH Price: $3.09 |
| 32 |
80-3770 |
RETAINER-DOOR Price: $1.88 |
| 33 |
76-4660 |
SPRING-DOOR Price: $10.99 |
| 34 |
71-9350 |
BRACKET-SPRING Price: $9.34 |
| 35 |
119-7894 |
DECAL-GREASE This part replaces 52-2620. Price: $1.65 |
| 36 |
82-9152 |
TUNNEL-DISCHARGE Price: $69.14 |
| 39 |
46-6810 |
SCREW AND WASHER ASM Price: $3.49 |
| 42 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 43 |
49-8770 |
QUADRANT-FRONT, RH Price: $17.49 |
| 46 |
106-0689 |
DECAL Price: $4.30 |
| 47 |
32144-86 |
SCREW-HWHTF Price: $1.29 |
| 48 |
99-6722 |
GUARD-ENGINE Price: $24.80 |
| 49 |
323-6 |
SCREW-HH Price: $0.66 |
| 50 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 51 |
68-7410 |
DECAL-BLADE Price: $7.18 |
