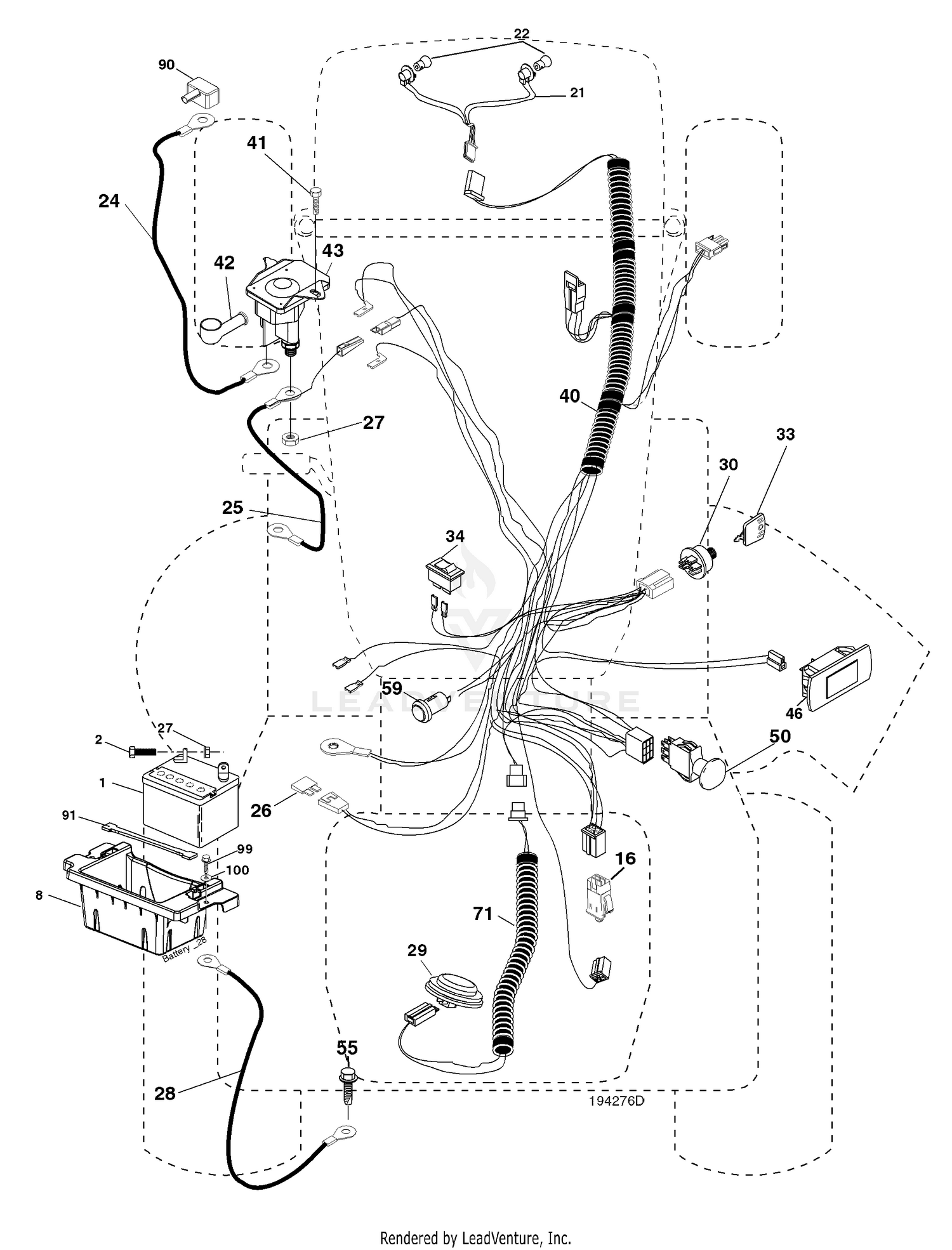

| Ref | Part Number | Description |
|---|
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532144927. Price: $149.99 |
| 1 |
93-6816 |
CONTROL-THROTTLE Price: $49.33 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 2 |
93-6743 |
STOP-THROTTLE Price: $8.04 |
| 3 |
218-594 |
FUSE-20 AMP Price: $3.02 |
| 4 |
218-578 |
FUSE-BLADE, 10 AMP Price: $2.58 |
| 5 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 6 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 7 |
93-6762 |
SWITCH-BALL Price: $132.17 |
| 8 |
32144-18 |
SCREW-HWH Price: $1.80 |
| 8 |
532186491 |
BOX.BATTERY.MOUNT.FRONT.LT Price: $14.99 |
| 9 |
120-2244 |
HOURMETER This part replaces 75-6820. Price: $48.06 |
| 10 |
3250-13 |
SCREW-PPH Price: $0.95 |
| 11 |
3274-90 |
SCREW-HSH Price: $1.53 |
| 12 |
92-9775 |
CLUSTER-LAMP, WARNING Price: $147.98 |
| 13 |
93-4411 |
GAUGE-TEMPERATURE Price: $125.82 |
| 14 |
80-6980 |
LATCH Price: $81.68 |
| 15 |
44-2212 |
AMBER INDICATOR LIGHT ASM Price: $72.17 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 16 |
92-3194 |
DISCONTINUED Price: Call Us |
| 17 |
93-6902 |
DECAL-BLOCK, FUSE Price: $6.45 |
| 18 |
32149-9 |
NUT-HEX, KEPS Price: $1.15 |
| 19 |
94-3351 |
DISCONTINUED Price: Call Us |
| 19 |
94-4985 |
DECAL-PANEL, INSTRUMENT Price: $57.02 |
| 20 |
94-3691-03 |
PANEL-INSTRUMENT ASM This part replaces 94-3691. Price: $124.28 |
| 21 |
532183759 |
HARNESS ASSY LIGHT Price: $24.99 |
| 21 |
70-1480 |
RELAY Price: $105.19 |
| 22 |
32128-33 |
NUT-HF Price: $0.25 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 23 |
80-7345 |
DISCONTINUED Price: Call Us |
| 24 |
2412-39 |
CLAMP-R Price: $1.70 |
| 24 |
585555601 |
CABLE.FRBATT.W/WIRE.8GA.8 This part replaces 532400253. Price: $7.99 |
| 25 |
532198893 |
CABLE.START.RED.17.5". Price: $11.99 |
| 25 |
94-3692 |
DISCONTINUED Price: Call Us |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 26 |
93-6941 |
SEAL-TRIM Price: $2.36 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
218-535 |
NUT-HEX Price: $0.34 |
| 28 |
532145491 |
CABLE GROUND 6 GA 21" 90T BLK Price: $6.99 |
| 29 |
218-536 |
WASHER-LOCK Price: $1.09 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 30 |
219-18 |
DISCONTINUED Price: Call Us |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 31 |
218-562 |
LENS Price: $10.44 |
| 32 |
32128-44 |
NUT Price: $2.69 |
| 33 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 33 |
532140401 |
KEY MLD GEN DELTA Price: $5.99 |
| 34 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 35 |
93-7726 |
DISCONTINUED Price: Call Us |
| 36 |
32122-35 |
SCREW Price: $35.19 |
| 37 |
219-17 |
BULB Price: $4.93 |
| 38 |
87-6270 |
SOCKET-LIGHT Price: $13.66 |
| 39 |
3217-26 |
NUT-HEX Price: $0.25 |
| 40 |
3254-1 |
WASHER-LOCK, INT Price: $0.49 |
| 40 |
584452601 |
HARNESS.IGN.DASH.HUQ/PRED KIT This part replaces 532401105. Price: $49.99 |
| 41 |
596437001 |
Screws This part replaces 871110408. Price: $2.99 |
| 42 |
3218-19 |
NUT-HJ Price: $0.54 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
3298-8 |
SCREW-SET Price: $0.95 |
| 43 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 44 |
92-3195 |
KNOB Price: $14.37 |
| 45 |
3217-29 |
NUT-HEX Price: $0.25 |
| 46 |
3253-2 |
WASHER-LOCK Price: $0.25 |
| 46 |
594919101 |
GUAGE.SRVCMNDR.HRMTR. This part replaces 532198138. Price: $19.99 |
| 48 |
3217-27 |
NUT-HEX Price: $0.25 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532174651. Price: $24.99 |
| 52 |
85-5270 |
DISCONTINUED Price: Call Us |
| 53 |
66-0120 |
KNOB Price: $5.53 |
| 55 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 59 |
596941001 |
Outlets This part replaces 532400303. Price: $11.99 |
| 71 |
532194276 |
HARNESS-CHASSIS SUB Price: $27.99 |
| 90 |
532400724 |
COVER.TERMINAL.BATTERY Price: $3.99 |
| 91 |
532190270 |
STRAP.BATTERY.MOUNT.FRONT(2 2) Price: $7.99 |
| 99 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 100 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
