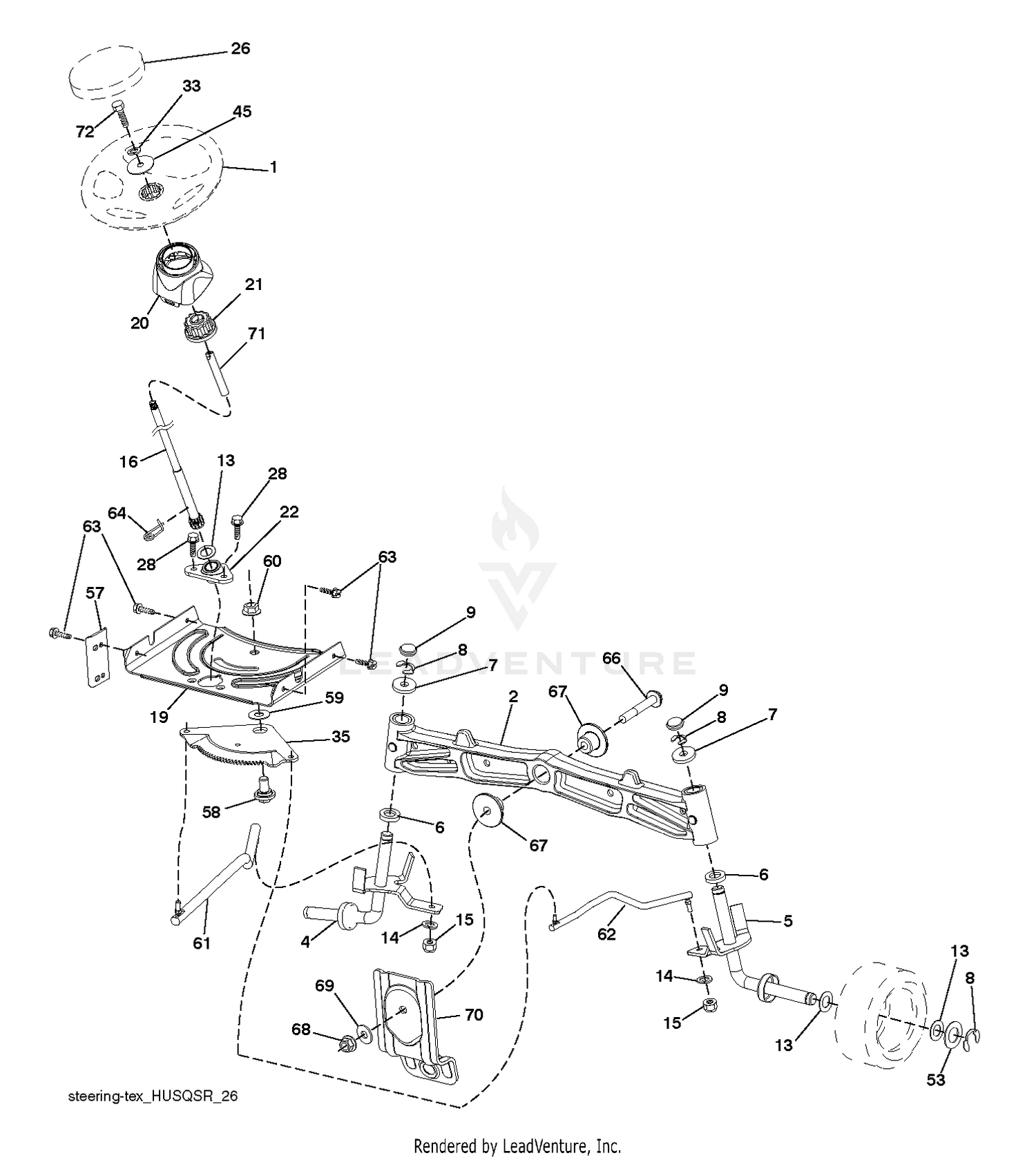

| Ref | Part Number | Description |
|---|
| 1 |
532439740 |
WHEEL.STEER.HUSQ.SR.498.OVMLD Price: $69.99 |
| 2 |
532413591 |
AXLE.SVC.ASM CAST IRON.TEX This part replaces 532195968. Price: $119.99 |
| 4 |
596873601 |
SPINDLE.WELDED.LH.15"TEX.X431 This part replaces 532403087. Price: $14.99 |
| 5 |
538691201 |
SPINDLE.WLDMT.RH.15INTIRE.X431 This part replaces 532403088. Price: $19.99 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 10 |
112-7026 |
WHEEL BEARING CASE ASM Price: $196.85 |
| 13 |
532121749 |
WASHER Price: $2.99 |
| 14 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 15 |
115-4121 |
METAL-CRANKSHAFT (STD) This part replaces 98-9525. Price: $86.06 |
| 15 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 16 |
587738903 |
KIT.SRVC.STEERINGSHAFT.3HISHFT This part replaces 532429373. Price: $44.99 |
| 19 |
531169101 |
SERVICE KIT PLATE PLATE.STEER. This part replaces 532194729. Price: $19.99 |
| 20 |
532441425 |
STEERING.BOOT.HUSQ.LT Price: $7.99 |
| 20 |
98-9484 |
BOLT-CASE, BEARING Price: $6.05 |
| 21 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 532186737. Price: $7.99 |
| 22 |
587738901 |
KIT.SRVC.STEERINGSHAFT.LWRBSHG This part replaces 532420537. Price: $14.99 |
| 26 |
532439743 |
INSERT.CAP.WHL.STRG.HUSQ.PREM Price: $8.99 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 30 |
131-6554 |
GASKET-CASE, BEARING This part replaces 127-0440. Price: $7.12 |
| 33 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 35 |
532194732 |
GEAR.SECTOR.PLATE.DDL. Price: $27.99 |
| 40 |
112-7046 |
COVER-CASE, BEARING Price: $66.00 |
| 45 |
596040001 |
Washers This part replaces 819113812. Price: $6.99 |
| 50 |
112-0180 |
SEAL-OIL Price: $58.48 |
| 53 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 57 |
532407465 |
BRACKET.UPSTOP.TEX Price: $5.99 |
| 58 |
532194747 |
BOLT.SHOULDER.SECTOR.P Price: $7.99 |
| 59 |
532194748 |
WASHER.THURST.SECTOR.S Price: $4.99 |
| 60 |
112-7037 |
GASKET-COVER, CASE Price: $14.14 |
| 60 |
583612801 |
NUT.FLANGE.LOCK.5/8-11 This part replaces 873971000. Price: $3.99 |
| 61 |
597047802 |
Links This part replaces 532194740. Price: $11.99 |
| 62 |
597047902 |
Links This part replaces 532194741. Price: $11.99 |
| 63 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 64 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $4.99 |
| 66 |
871020748 |
BOLT HEX FGHD 7/16-14 X 3 SERR Price: $4.99 |
| 67 |
529496302 |
BUSHING, AXLE This part replaces 532194737. Price: $2.99 |
| 68 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 69 |
532199162 |
WASHER.1.5X.505X.118 Price: $4.99 |
| 70 |
127-0441 |
BOLT Price: $0.61 |
| 70 |
585338802 |
BRACKET FRONT DECK SUSPENSION This part replaces 532196197. Price: $14.99 |
| 71 |
532190752 |
SHAFT.EXTEN.STRG.SPLINE Price: $11.99 |
| 72 |
596039701 |
Bolts This part replaces 532428982. Price: $3.99 |
| 80 |
127-0442 |
BOLT Price: $0.61 |
| 90 |
127-0427 |
MAIN BEARING CASE ASM Price: $178.70 |
| 95 |
98-9524 |
METAL-CRANKSHAFT (STD SET) Price: $62.26 |
| 100 |
98-9484 |
BOLT-CASE, BEARING Price: $6.05 |
| 110 |
98-9485 |
BOLT-CASE, BEARING Price: $22.80 |
| 120 |
127-0428 |
MAIN BEARING CASE ASM Price: $178.70 |
| 125 |
98-9524 |
METAL-CRANKSHAFT (STD SET) Price: $62.26 |
| 130 |
98-9484 |
BOLT-CASE, BEARING Price: $6.05 |
| 140 |
127-0429 |
BEARING CASE ASM Price: $161.56 |
| 145 |
98-9524 |
METAL-CRANKSHAFT (STD SET) Price: $62.26 |
