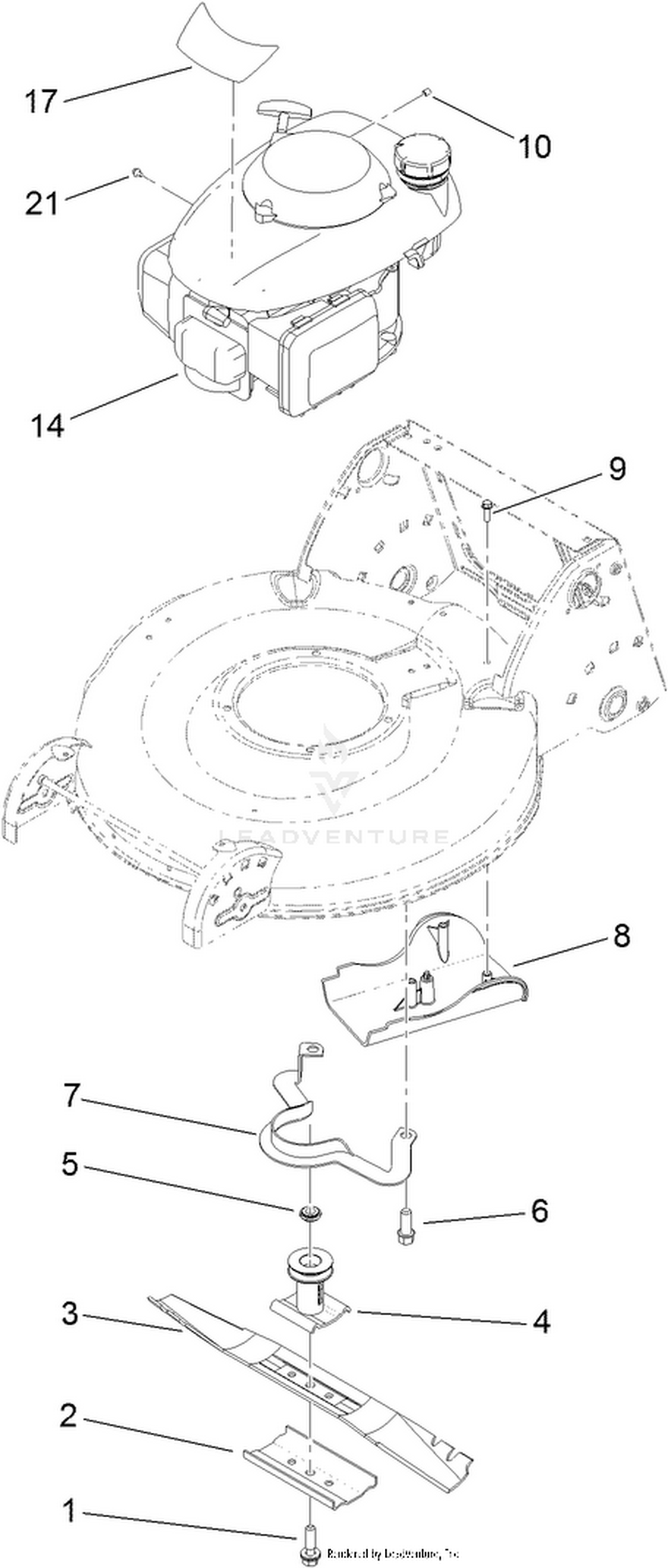

Engine and Blade Assembly
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 117-5270 | BOLT-BLADE Price: $2.30 |
| 2 | 108-3766-03 | SUPPORT-BLADE Price: $7.65 |
| 3 | 133-8182-03 | BLADE-21IN This part replaces 108-0954-03. Price: $19.68 |
| 4 | 114-2774 | DRIVER-BLADE Price: $22.37 |
| 5 | 106-3999 | SPACER-DRIVER Price: $2.22 |
| 6 | 95-1726 | SCREW-TAPTITE Price: $1.79 |
| 7 | 105-3030-03 | GUIDE-BELT Price: $9.83 |
| 8 | 110-1832 | COVER-BELT Price: $9.95 |
| 9 | 46-8091 | SCREW-HWH Price: $3.59 |
| 10 | 2210-316 | STOP-ROPE Price: $4.41 |
| 17 | 120-1949 | DECAL-ENGINE Price: $10.03 |
