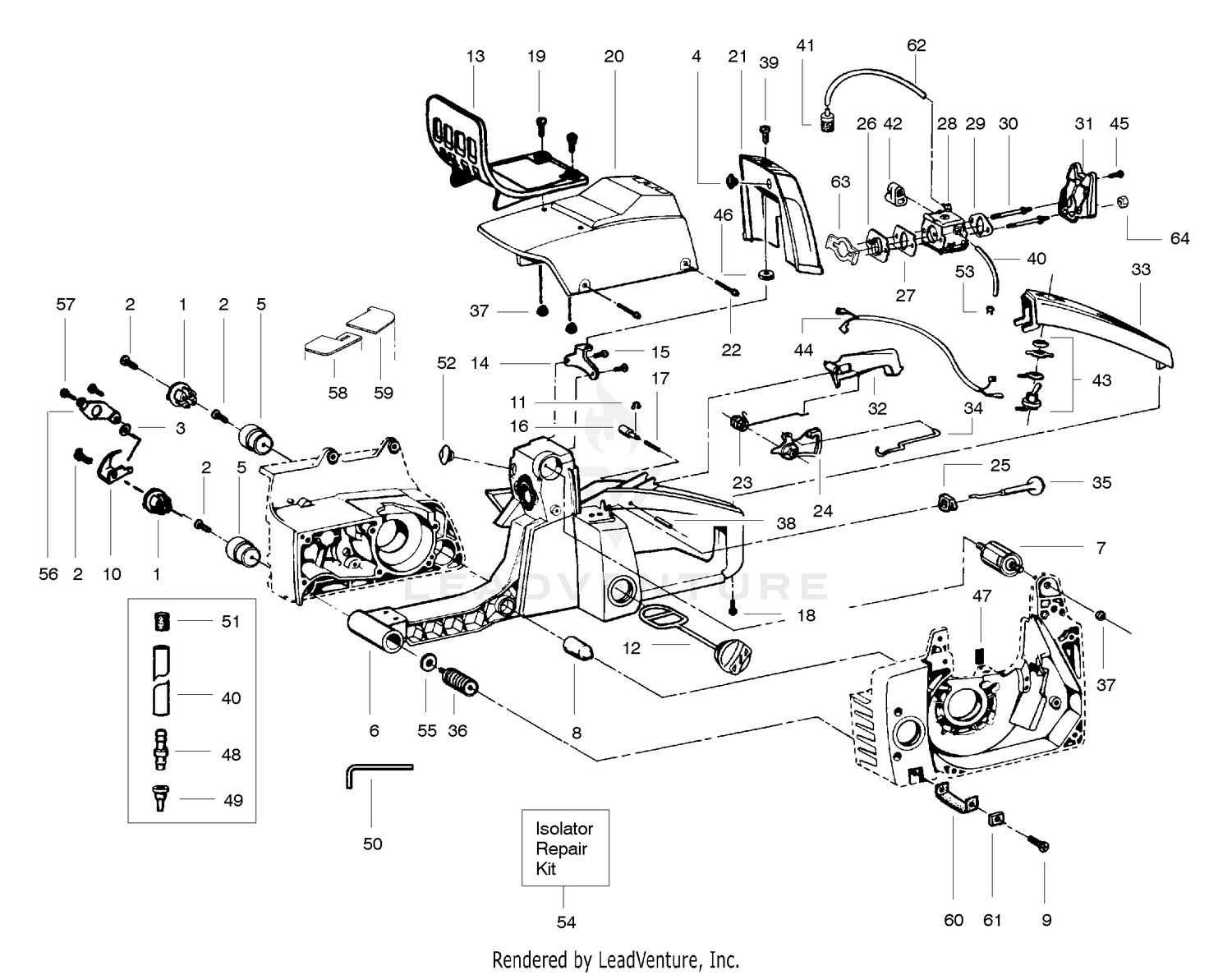

External Power Unit
Parts (69)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 120-5118 | SHAFT-ADJUSTER Price: $44.64 |
| 1 | 530027732 | Retainer-Chain Catcher Price: $1.99 |
| 2 | 120-5116 | WASHER-WAVE Price: $9.17 |
| 2 | 530016057 | Screw Price: $1.99 |
| 3 | 106-5344 | BUSHING-FLANGE, KEYED Price: $2.37 |
| 3 | 530015562 | Washer-Flat Price: $1.99 |
| 4 | 108-0015 | WASHER-FLAT Price: $0.39 |
| 4 | 530027399 | Carb. Cover Bumper Price: $1.99 |
| 5 | 3296-33 | NUT-LOCK, NI Price: $2.39 |
| 5 | 530042080 | Lower Isolator Price: $2.99 |
| 6 | 137-6130 | SCREW-ADJUSTER, BEDBAR This part replaces 115-7039. Price: $25.42 |
| 6 | 530069925 | Rear Handle & Fuel Tank Price: $37.00 |
| 7 | 119-4155 | WASHER-HARDENED Price: $4.16 |
| 8 | 120-5120 | SPRING-COMPRESSION Price: $2.89 |
| 8 | 530027187 | Bumper Isolator Price: $1.99 |
| 9 | 530015650 | Screw-Pinch Clamp This part replaces 530015871. Price: $1.99 |
| 10 | 530027733 | Chain Catcher Price: $1.99 |
| 12 | 530010845 | Fuel Cap Ass'y. Price: $5.99 |
| 13 | 530047382 | Handguard Price: $7.99 |
| 14 | 530036035 | Bracket Price: $2.99 |
| 15 | 530015598 | Screw Price: $1.99 |
| 16 | 530029666 | Throttle Lock Price: $2.99 |
| 17 | 530024772 | Throttle Spring Price: $1.99 |
| 18 | 530015716 | Screw Price: $1.99 |
| 19 | 530015406 | Screw Price: $1.99 |
| 20 | 530069392 | Cylinder Shield Kit Price: $4.32 |
| 21 | 530036038 | Carb. Cover Price: $5.99 |
| 22 | 530015650 | Screw-Pinch Clamp This part replaces 530015871. Price: $1.99 |
| 23 | 530027134 | Trigger Latch Spring Price: $1.99 |
| 24 | 530027133 | Throttle Trigger Price: $1.99 |
| 25 | 530036053 | Grommet Price: $1.99 |
| 26 | 530027121 | Bracket Price: $1.99 |
| 27 | 530069487 | Engine Gasket Set Price: $6.99 |
| 28 | 530035201 | Carburetor (HDA-49) Price: $109.99 |
| 29 | 530023664 | Air Filter Plate Price: $1.99 |
| 30 | 530049562 | Carb. Mounting Stud Price: $1.99 |
| 31 | 530010892 | Air Filter Ass'y. Price: Call Us |
| 32 | 530027135 | Throttle Lockout Price: $1.99 |
| 33 | 530027207 | Rear Handle Cover Price: $11.99 |
| 34 | 530027073 | Throttle Wire Price: $2.99 |
| 35 | 530027075 | Choke Knob Price: $1.99 |
| 36 | 530069384 | Isolator Kit Price: $17.99 |
| 37 | 534790500 | Nut Price: $1.99 |
| 38 | 530015701 | Dowel Pin Price: $1.99 |
| 39 | 530015724 | Screw Price: $1.99 |
| 40 | 530069216 | Line Kit (Bulk 530008133) Price: $3.99 |
| 41 | 530091878 | Fuel Pickup Ass'y. Price: $5.99 |
| 42 | 530049265 | Grommet-Carb. Price: $1.99 |
| 43 | 530069225 | Switch Kit Price: $6.99 |
| 44 | 530027138 | Lead Wire Ass'y. Price: $2.99 |
| 45 | 530015598 | Screw This part replaces 530015802. Price: $1.99 |
| 46 | 530027202 | Retainer-Screw Price: $1.99 |
| 47 | 530025539 | Impulse Fitting Price: $1.99 |
| 48 | 530024475 | Vent Fitting Price: $1.99 |
| 49 | 530026119 | Check Valve Price: $1.99 |
| 50 | 530031159 | Hex Key Price: $1.99 |
| 51 | 530027339 | Vent Plug Price: $2.52 |
| 52 | 530025922 | Air Box Plug Price: $1.99 |
| 53 | 530027341 | Clamp Price: $1.99 |
| 54 | 530069297 | Isolator Repair Kit Price: $2.99 |
| 55 | 530015123 | Washer Price: $1.99 |
| 56 | 530029347 | Bracket Retainer Price: $1.99 |
| 57 | 530015875 | Screw Price: $1.99 |
| 58 | 530019192 | Carb. Seal-Left Price: $1.99 |
| 59 | 530019191 | Carb. Seal-Right Price: $0.99 |
| 60 | 530037104 | AV Strap Price: $1.99 |
| 61 | 530037012 | Strap Retainer Plate Price: $1.99 |
| 62 | 530069910 | Fuel Line Kit (Bulk 530009078) Price: $3.99 |
| 63 | 530049273 | Bracket-Carb Stud Price: $1.99 |
