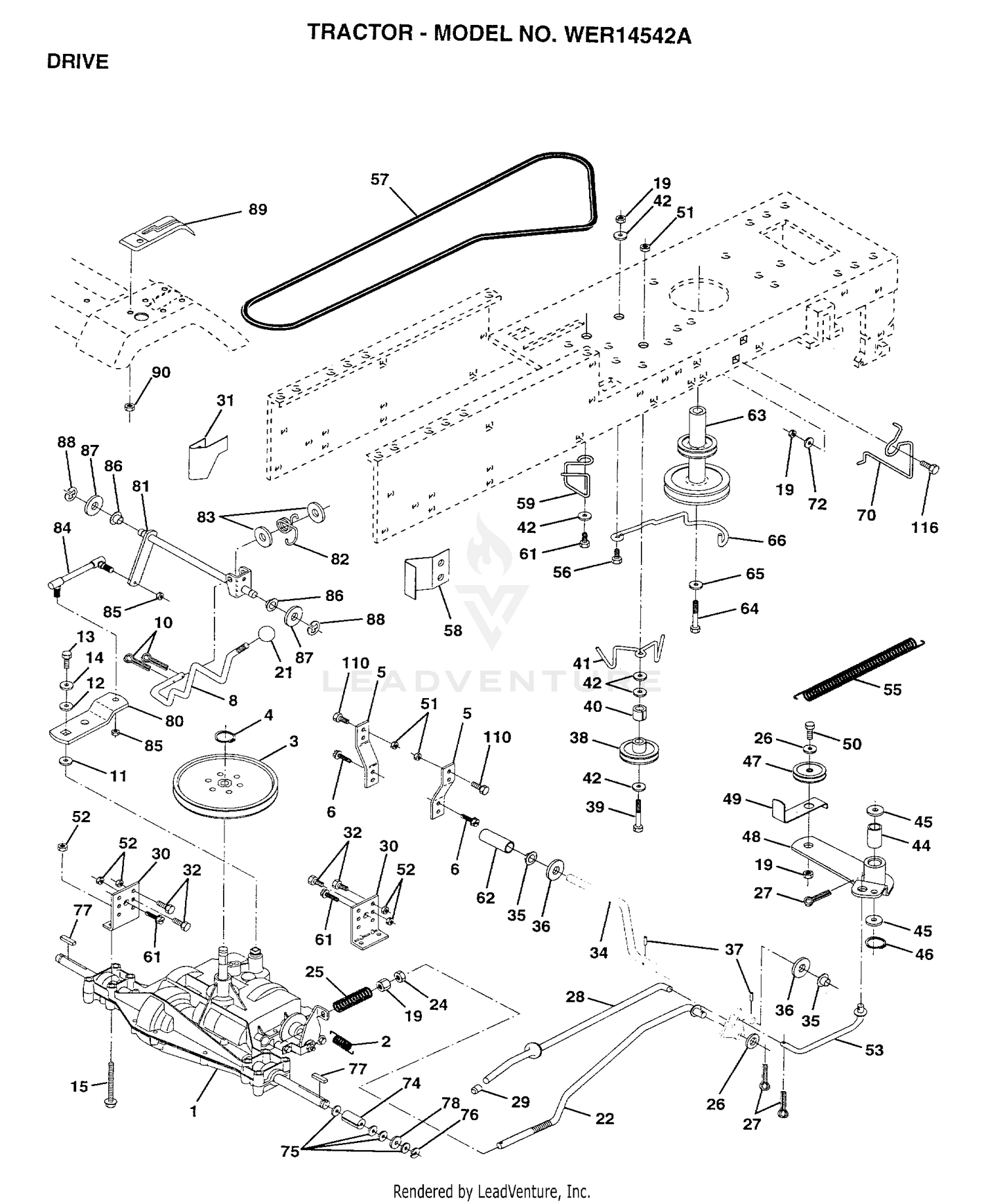

| Ref | Part Number | Description |
|---|
| 1 |
142603 |
SUB= 160664 Price: Call Us |
| 1 |
94-2694-01 |
COVER-RH Price: $46.16 |
| 2 |
146682 |
SPRING.BRAKE.RETU Price: Call Us |
| 2 |
95-5981-01 |
FRAME ASM Price: $3,151.67 |
| 3 |
123666X |
PULLEY TRANS Price: Call Us |
| 3 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 4 |
12000028 |
SUB= 2267J Price: Call Us |
| 4 |
3274-69 |
SCREW-HSBH Price: $0.43 |
| 5 |
121520X |
STRAP TORQUE Price: Call Us |
| 5 |
28-4210 |
SOLENOID Price: $63.91 |
| 6 |
17490512 |
SCREW Price: Call Us |
| 6 |
3254-1 |
WASHER-LOCK, INT Price: $0.49 |
| 7 |
3219-14 |
NUT-HEX Price: $0.25 |
| 8 |
141003 |
ROD SHIFT FEND LT Price: Call Us |
| 8 |
3218-13 |
NUT-JAM, BRASS Price: $0.88 |
| 9 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 10 |
321-3 |
SCREW-HH Price: $0.28 |
| 10 |
76020416 |
PIN COTTER 1/8 Price: Call Us |
| 11 |
105701X |
WASH-SHFT PLT LT Price: Call Us |
| 11 |
3217-5 |
NUT-HEX Price: $0.25 |
| 12 |
19151216 |
WASHER Price: Call Us |
| 12 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 13 |
100-6434 |
ROD-HOLD DOWN, BATTERY Price: $10.10 |
| 13 |
74550412 |
BOLT.1/4-28.W/PAT Price: Call Us |
| 14 |
10040400 |
LOCKWASHER Price: Call Us |
| 14 |
32103-22 |
NUT-WING Price: $2.39 |
| 15 |
104-8162 |
BATTERY-DRY This part replaces 92-1677. Price: $114.99 |
| 15 |
74490544 |
BOLT.HX.FLG.5/16 Price: Call Us |
| 16 |
100-6435 |
POST-BATTERY Price: $15.91 |
| 17 |
46-8560 |
SCREW-HHFTF Price: $1.79 |
| 18 |
83-0840-01 |
SHIELD-COVER, VALVE Price: $41.96 |
| 19 |
73800600 |
NUT Price: Call Us |
| 20 |
105-9751 |
DECAL Price: $19.23 |
| 21 |
106933X |
KNOB T (1/2-HOLE) Price: Call Us |
| 22 |
130804 |
BRAKE ROD Price: Call Us |
| 22 |
32104-116 |
SCREW-HWHTF Price: $0.55 |
| 23 |
95-7119 |
HOSE-LINE, RETURN Price: $80.05 |
| 24 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 24 |
73350600 |
NUT Price: Call Us |
| 25 |
106888X |
SPRING ROD LT Price: Call Us |
| 25 |
95-4356 |
FITTING This part replaces 353-563. Price: $67.28 |
| 26 |
19131316 |
WASHER Price: Call Us |
| 26 |
74-3600 |
DISCONTINUED Price: Call Us |
| 27 |
68-5880 |
HOSE-HYD Price: $112.20 |
| 27 |
76020412 |
COTTER PIN Price: Call Us |
| 28 |
145204 |
ROD.BRAKE.PARK.LT Price: Call Us |
| 28 |
353-564 |
FITTING-90 DEG Price: $167.47 |
| 29 |
071673 |
CAP PARKING BRAKE Price: Call Us |
| 29 |
27-2380 |
SPACER Price: $11.14 |
| 30 |
130807 |
TRANSAXLE MTG BKT Price: Call Us |
| 30 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 31 |
322-4 |
SCREW-HH Price: $0.35 |
| 32 |
74760512 |
BOLT Price: Call Us |
| 32 |
83-0830-01 |
PANEL-CONTROL, UPPER Price: $140.31 |
| 33 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 34 |
151128 |
SHAFT FOOT PEDAL Price: Call Us |
| 34 |
32149-2 |
NUT-KEPS Price: $2.39 |
| 35 |
120183X |
NYLON BEARING Price: Call Us |
| 35 |
237-143 |
O-RING Price: $1.34 |
| 36 |
19211616 |
WASHER LT Price: Call Us |
| 36 |
93-8065 |
DECAL-TRACTION Price: $6.71 |
| 37 |
1572H |
SUB= 2882J Price: Call Us |
| 37 |
67-1300 |
DECAL Price: $29.99 |
| 38 |
123674X |
PULLEY.IDLER.FLAT Price: Call Us |
| 38 |
93-7276 |
DECAL-DANGER Price: $15.13 |
| 39 |
74760644 |
BOLT Price: Call Us |
| 39 |
93-6668 |
DECAL-BATTERY Price: $18.99 |
| 40 |
4470J |
SPACER T Price: Call Us |
| 41 |
105-4674 |
DECAL-NOISE Price: $4.80 |
| 41 |
153399 |
KEEPER BELT Price: Call Us |
| 42 |
133-8095 |
DECAL-CE This part replaces 93-7252. Price: $3.73 |
| 42 |
19131312 |
WASHER Price: Call Us |
| 43 |
104-2064-03 |
BATTERY BASE ASM Price: $117.27 |
| 44 |
120-9738 |
SCREW-HH This part replaces 322-11. Price: $0.84 |
| 45 |
110812X |
WASHER LT Price: Call Us |
| 45 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 46 |
106948 |
TRAY-BATTERY Price: $10.99 |
| 46 |
12000039 |
KLIP RING Price: Call Us |
| 47 |
127783 |
SUB= 139245 Price: Call Us |
| 48 |
123789X |
ARM IDLER Price: Call Us |
| 49 |
123205X |
RETAIN BELT Price: Call Us |
| 50 |
74760624 |
SUB= 74930624 Price: Call Us |
| 51 |
73680600 |
SUB= 73690600 Price: Call Us |
| 52 |
73680500 |
SUB= 73690500 Price: Call Us |
| 56 |
74760620 |
Bolt Fin Flex 3/8-16unc X 1-1/4 Price: Call Us |
| 57 |
130801 |
SUB= 138255 Price: Call Us |
| 59 |
140312 |
KEEPER BELT CNTSP Price: Call Us |
| 61 |
17490612 |
SCREW Price: Call Us |
| 62 |
8883R |
PEDAL COVER T Price: Call Us |
| 63 |
140186 |
PULLEY.ENGINE Price: Call Us |
| 64 |
71170764 |
BOLT Price: Call Us |
| 65 |
10040700 |
LOCKWASHER Price: Call Us |
| 66 |
153400 |
SUB= 129921 Price: Call Us |
| 70 |
134683 |
KEEPER BELT ENG Price: Call Us |
| 72 |
19132012 |
WASHER Price: Call Us |
| 74 |
109502X |
SPACER LT Price: Call Us |
| 75 |
121749X |
WASHER Price: Call Us |
| 76 |
12000001 |
E-RING LT Price: Call Us |
| 77 |
123583X |
SQUARE KEY Price: Call Us |
| 78 |
121748X |
WASHER Price: Call Us |
| 80 |
131488 |
SHIFT LEVER Price: Call Us |
| 81 |
136932 |
SHAFT ASM SHIFT Price: Call Us |
| 83 |
19171216 |
WASHER Price: Call Us |
| 84 |
132182 |
TIE ROD Price: Call Us |
| 85 |
150360 |
NUT.CNT.LOCK.1/4 Price: Call Us |
| 86 |
071208 |
BUSHING ROD 629/632 LD Price: Call Us |
| 87 |
19212016 |
WASHER D Price: Call Us |
| 88 |
12000008 |
KLIP RING Price: Call Us |
| 89 |
139964 |
SUB= 918139964 Price: Call Us |
| 90 |
124346X |
NUT Price: Call Us |
| 110 |
74760612 |
SUB= 74780612 Price: Call Us |
