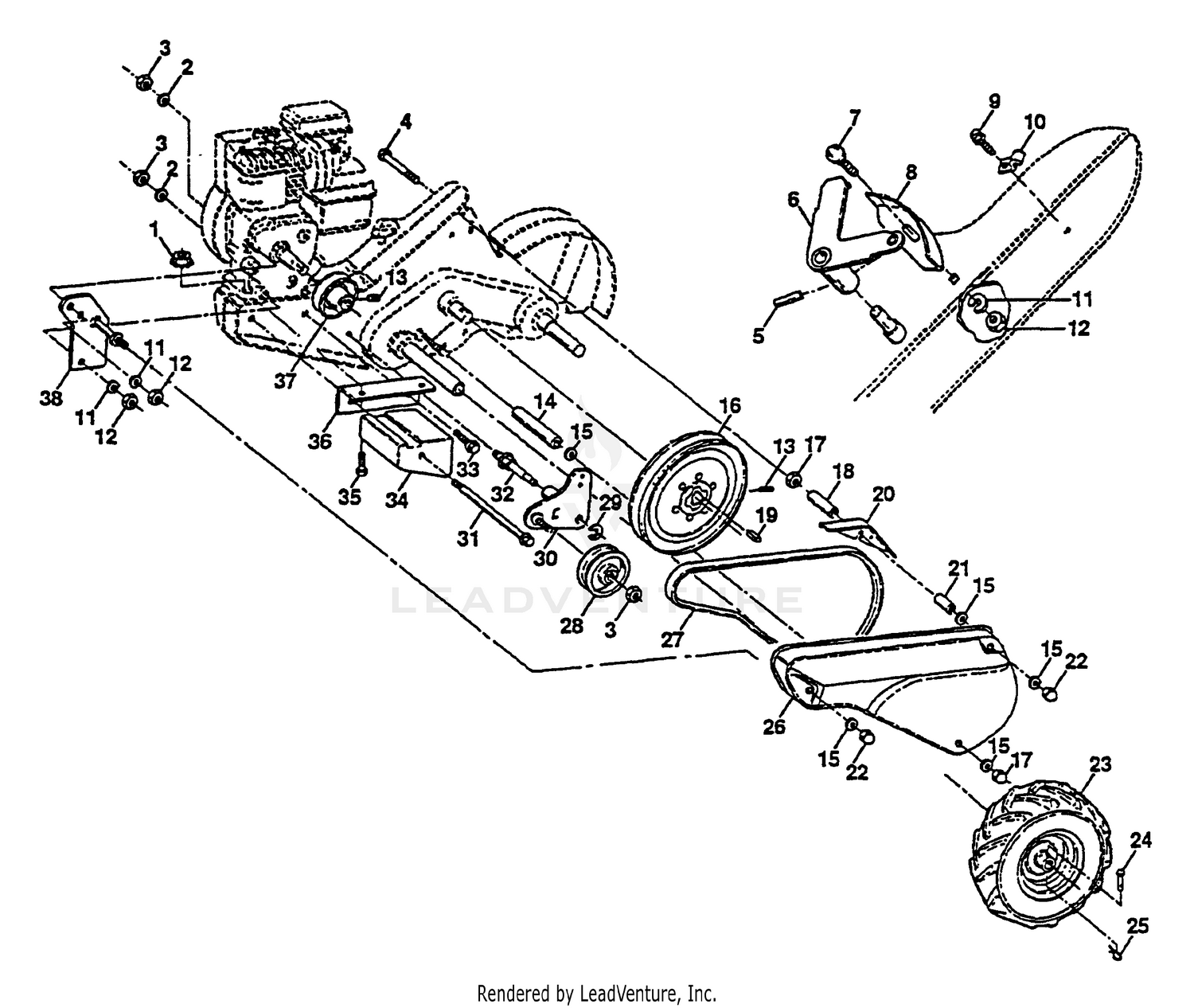

| Ref | Part Number | Description |
|---|
| 1 |
596040501 |
Hardware This part replaces 873510500. Price: $2.99 |
| 1 |
80-4860 |
PIN-CLEVIS Price: $6.13 |
| 2 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 2 |
75-3580 |
PLATE-SEAT Price: $213.06 |
| 3 |
75-3530 |
SPRING-COMPRESSION Price: $31.98 |
| 3 |
873220600 |
NUT.HEX.3/8-16UNC Price: $4.99 |
| 4 |
3256-5 |
WASHER-FLAT Price: $0.27 |
| 4 |
874930568 |
Bolt, Hex 5/16-18 x 4-1/4 Price: $5.99 |
| 5 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 5 |
532001572 |
PIN.ROLL.3/16 X 1" This part replaces 532124963. Price: $3.99 |
| 6 |
3285-19 |
PIN-GROOVE This part replaces 75-3540. Price: $1.79 |
| 6 |
532110111 |
LEVER ASM CRT Price: $11.99 |
| 7 |
75-3550 |
BUMPER-SEAT Price: $18.48 |
| 7 |
872110404 |
BOLT Price: $7.99 |
| 8 |
532008700 |
PANEL.INDICATOR.SHIFT.BLACK Price: $3.99 |
| 8 |
76-2940 |
BUMPER Price: $9.73 |
| 9 |
76-1920 |
SLEEVE-BEARING Price: $22.50 |
| 9 |
817021008 |
SCREW This part replaces 532086777. Price: $3.99 |
| 10 |
532009484 |
CONDUIT.CLIP.PLATED Price: $4.99 |
| 10 |
66-8610 |
DISCONTINUED Price: Call Us |
| 11 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 11 |
66-8560 |
NUT-PUSH Price: $5.97 |
| 12 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $2.99 |
| 12 |
76-1910 |
DISCONTINUED Price: Call Us |
| 13 |
82-9060 |
DISCONTINUED Price: Call Us |
| 13 |
823230506 |
SET SCREW Price: $2.99 |
| 14 |
532120938 |
SPACER Price: $2.70 |
| 14 |
76-1940 |
SPRING-EXTENSION Price: $66.03 |
| 15 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111116. Price: $2.99 |
| 15 |
66-9290 |
SPACER-SUSPENSION Price: $3.60 |
| 16 |
108-6703 |
ADJUSTER-SEAT This part replaces 66-8530. Price: $183.47 |
| 16 |
532100473 |
SHEAVE 10" CRT Price: $30.75 |
| 17 |
596436301 |
Nuts This part replaces 873220500. Price: $2.99 |
| 17 |
66-8520 |
BUMPER-DOWNSTOP Price: $37.56 |
| 18 |
532110651 |
SPACER CRT Price: $2.99 |
| 18 |
76-1960 |
KNOB KIT This part replaces 77-2870. Price: $357.33 |
| 19 |
106-1031 |
TENSION ADJUSTER KNOB ASM This part replaces 76-1930. Price: $68.93 |
| 19 |
532002649 |
KEY T Price: $5.99 |
| 20 |
3256-46 |
WASHER-FLAT Price: $5.77 |
| 20 |
532110653 |
GUARD CRT Price: $3.57 |
| 21 |
32128-26 |
NUT-FLANGE Price: $5.89 |
| 21 |
532131691 |
SPACER SPLIT Price: $4.99 |
| 22 |
3296-44 |
NUT-LOCK, NI Price: $2.46 |
| 22 |
532104214 |
NUT TI Price: $3.99 |
| 23 |
532065139 |
VALVE STEM LT This part replaces 532124718. Price: $5.99 |
| 23 |
532102190 |
TIRE.13X5-6.CHEVRON.TILLER Price: $59.99 |
| 23 |
532124258 |
RIM ASM.6"WHITE.TILLER Price: $120.99 |
| 23 |
75-3480 |
FRAME-UPPER Price: $323.32 |
| 24 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 24 |
532126875 |
RIVET,DRILLED Price: $2.99 |
| 25 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 25 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 26 |
532125339 |
BELT GUARD Price: $19.39 |
| 26 |
75-3510 |
BOLT-SHOULDER Price: $14.55 |
| 27 |
532132672 |
V-BELT Price: $32.99 |
| 27 |
93-3164 |
CAP Price: $11.64 |
| 28 |
532104679 |
PULLEY-IDLER TI Price: $14.99 |
| 28 |
93-3163 |
SPRING Price: $26.01 |
| 29 |
812000032 |
KLIP RING Price: $3.99 |
| 29 |
93-3165 |
BRACKET Price: $37.47 |
| 30 |
322-6 |
SCREW-HH Price: $0.45 |
| 30 |
584289401 |
BRACKET.IDLER.ASM.SHORT This part replaces 532105611. Price: $12.99 |
| 31 |
3253-33 |
WASHER-LOCK Price: $1.19 |
| 31 |
532102384 |
BOLT.FIN.HEX.3/8-16UNC Price: $7.99 |
| 32 |
532102141 |
SHIFT ARM CRT Price: $6.99 |
| 33 |
596564401 |
Bolts This part replaces 874760616. Price: $3.99 |
| 34 |
532102383 |
COUNTERWEIGHT.LH.CRT Price: $84.99 |
| 35 |
596582201 |
Bolts This part replaces 874760524. Price: $2.99 |
| 36 |
532102331 |
BRACKET LH CRT Price: $11.99 |
| 37 |
532130816 |
PULLEY.ENGINE.3".OD Price: $39.99 |
| 38 |
532131558 |
BELT GUARD BRKT Price: $3.79 |
| 532104323 |
DECAL |
TI NLA Price: $6.00 532104323 |
