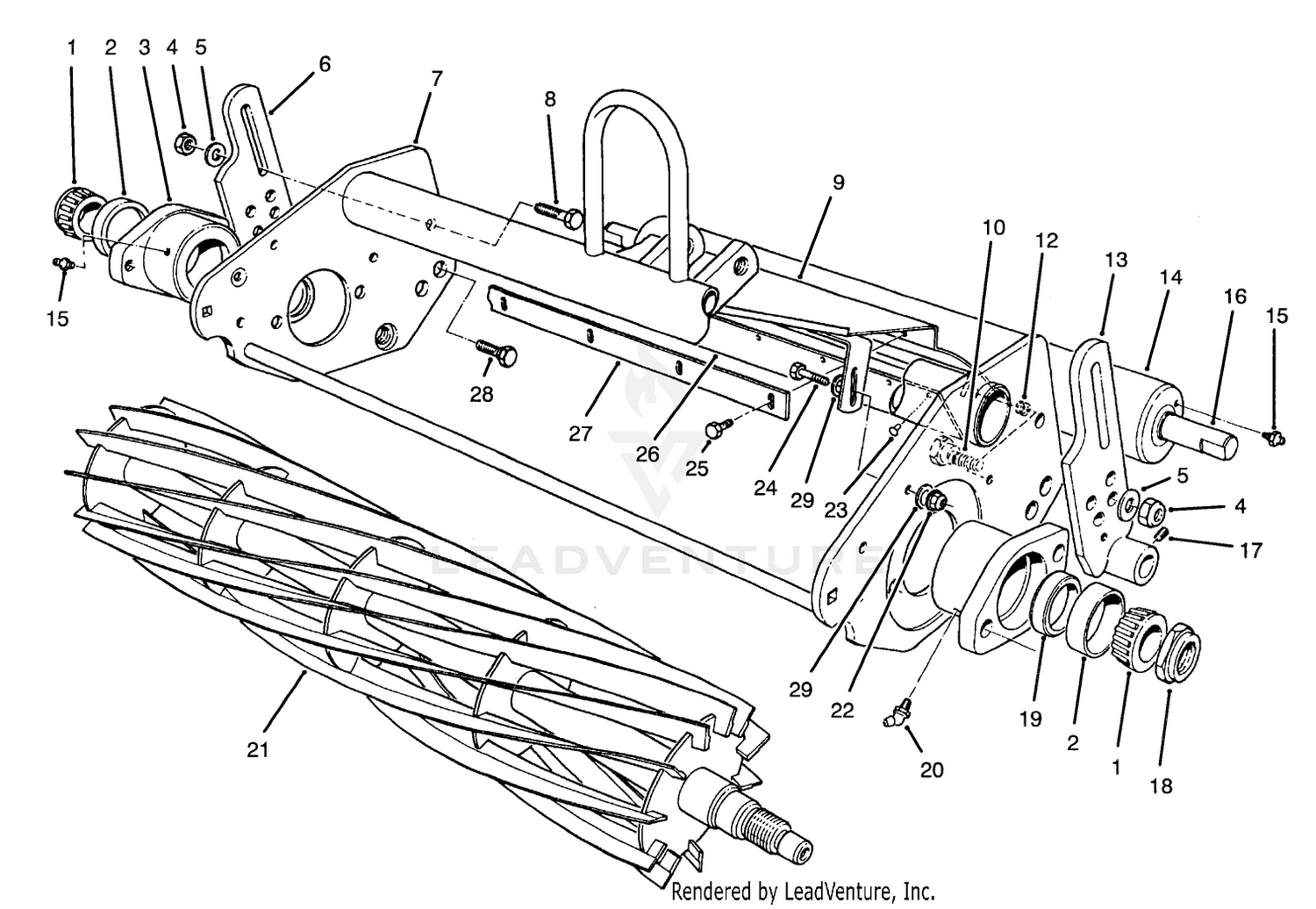

| Ref | Part Number | Description |
|---|
| 1 |
254-94 |
BEARING-CONE, TAPERED Price: $8.48 |
| 2 |
254-72 |
BEARING-CUP, TAPERED Price: $9.67 |
| 3 |
108-6475 |
KIT-BEARING HOUSING This part replaces 10-5120. Price: $42.60 |
| 4 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 5 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 6 |
77-1060 |
ADJUST-HOC, RH Price: $88.45 |
| 7 |
70-1200-01 |
FRAME-REEL ASM This part replaces 70-1200. Price: $396.13 |
| 8 |
323-7 |
SCREW-HH Price: $0.65 |
| 9 |
57-5200 |
GRASS SHIELD ASM Price: $136.52 |
| 10 |
52-3100 |
BOLT-HOC ECCENTRIC, LH Price: $47.11 |
| 12 |
237-84 |
GROMMET Price: $1.12 |
| 13 |
77-1080 |
ADJUST-HOC, LH Price: $88.45 |
| 14 |
52-3120 |
ROLLER ASM Price: $180.27 |
| 15 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 16 |
52-3180 |
BEARING-ROLLER, FRONT This part replaces 21-6430. Price: $31.50 |
| 17 |
3246-2 |
SCREW-SET, HSH Price: $0.54 |
| 18 |
3296-60 |
NUT-LOCK, NI Price: $5.08 |
| 19 |
253-96 |
SEAL-OIL Price: $6.85 |
| 20 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 21 |
137-8580 |
ES REEL-SPA 4 BOLT, 11 BLD This part replaces 12-2789. Price: $507.81 |
| 22 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 23 |
3295-46 |
RIVET Price: $0.34 |
| 24 |
321-5 |
SCREW-HH Price: $0.22 |
| 25 |
104-2065 |
SCREW-HWH This part replaces 32144-73. Price: $0.28 |
| 26 |
57-5210 |
SHIELD FLAP Price: $7.02 |
| 27 |
36-7260 |
BAR-OFF, CUT Price: $24.10 |
| 28 |
52-3110 |
BOLT-HOC SHOULDER, RH Price: $31.65 |
