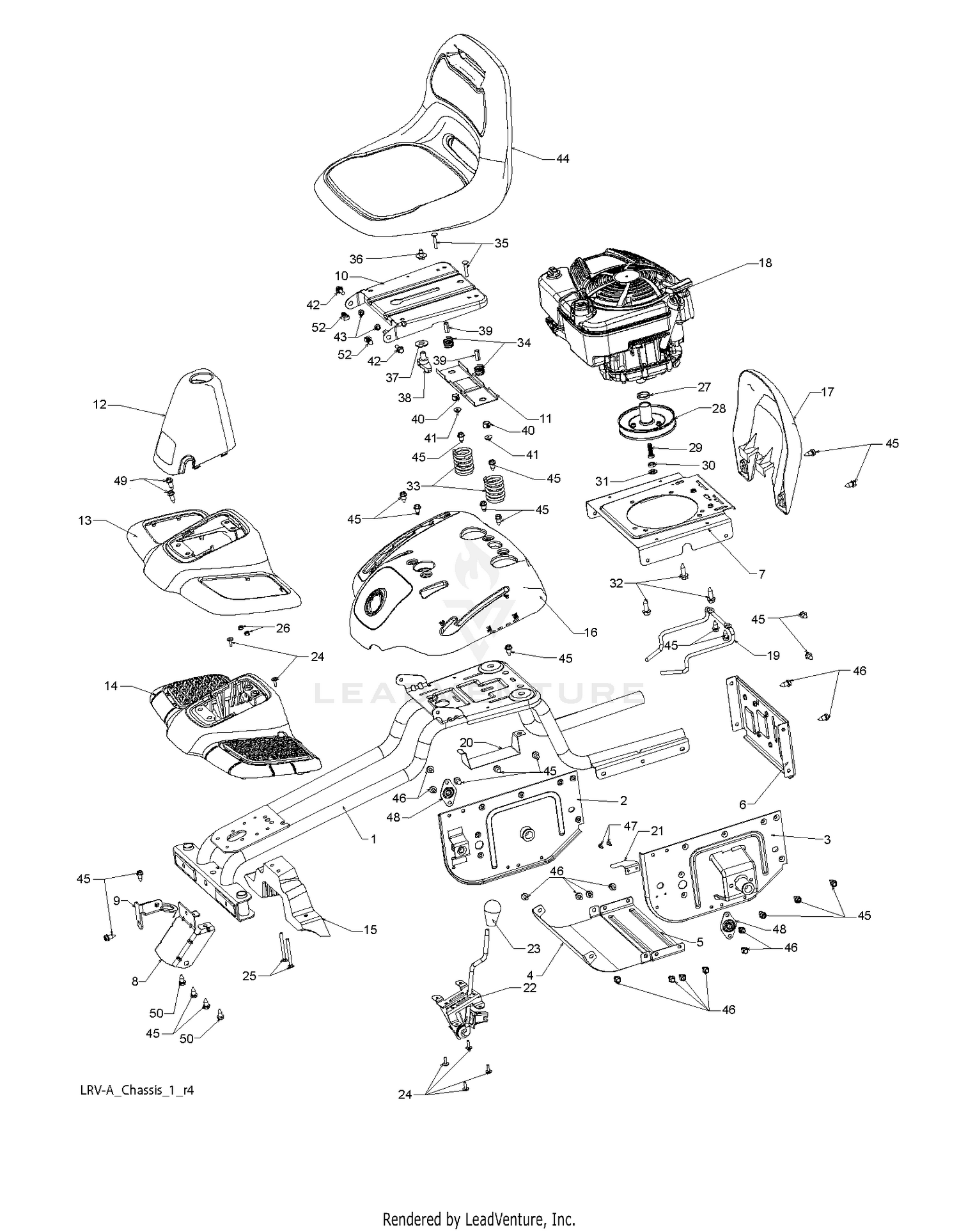

| Ref | Part Number | Description |
|---|
| 1 |
532428048 |
CHASSIS.WLD.26".LRV Price: $129.99 |
| 1 |
784106 |
Lever Housing Assy., Shift (Incl. Nos. 2 thru 7) Model 2307-B Price: Call Us |
| 2 |
792016 |
Ring-Snap Price: Call Us |
| 3 |
792001 |
O Ring Price: Call Us |
| 4 |
792049 |
Pin-Roll Price: Call Us |
| 5 |
532428110 |
STRAP.CROSS.FRICTION.DRIVE Price: $9.99 |
| 5 |
784093 |
Housing-Shift Lever Price: Call Us |
| 6 |
532428109 |
COVER, FRICTION DRIVE Price: $14.99 |
| 6 |
784094 |
Keeper-Shift Lever Price: Call Us |
| 7 |
532428040 |
PLATE, ENGINE Price: $24.99 |
| 7 |
784107 |
Lever, Shift Price: Call Us |
| 8 |
784054 |
Rod Assy., Shift (Incl. Nos. 9 thru 12 24) Price: Call Us |
| 9 |
532428856 |
BRACKET, STEERING SUPPORT Price: $4.99 |
| 9 |
792003 |
Spring Price: Call Us |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT Price: $14.99 |
| 10 |
792004 |
Piston ASM Price: Call Us |
| 11 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK Price: $4.99 |
| 11 |
784004 |
Shift Fork Price: Call Us |
| 12 |
532428248 |
BOOT, DUST LRV (2 2) Price: $11.99 |
| 12 |
784055 |
Rod, Shifter Price: Call Us |
| 13 |
532436496 |
FOOTREST.AESTHETIC.WE.GRN.LRV Price: $32.99 |
| 13 |
784056 |
Rod Assy., Shift (Incl. Nos. 9, 10, 11, 14 24) Price: Call Us |
| 14 |
532428250 |
STRUCTURE, FOOT REST Price: $49.99 |
| 14 |
784057 |
Rod, Shifter Price: Call Us |
| 15 |
532428249 |
SUPPORT, FOOT REST Price: $24.99 |
| 15 |
774163 |
Axle Price: Call Us |
| 16 |
532436497 |
FENDER.CNTRL.PNL.WE.GRN.LRV Price: $74.99 |
| 16 |
780042 |
Washer Price: Call Us |
| 17 |
532428348 |
GUARD.ENGINE.LRV Price: $17.99 |
| 17 |
792056 |
Screw, Hex Hd. Cap Price: Call Us |
| 18 |
792006 |
Lockwasher Price: Call Us |
| 19 |
532428986 |
KEEPER, BELT Price: $6.99 |
| 19 |
778080 |
Gear, Ring Price: Call Us |
| 20 |
532428046 |
BRACKET, BATTERY LRV Price: $3.99 |
| 21 |
532429815 |
LEVER, SWITCH Price: $2.99 |
| 21 |
786052 |
Core, Body Price: Call Us |
| 22 |
532428826 |
CABLE.ASM.CLUTCH.W/BRACKET Price: $74.99 |
| 22 |
778078 |
Gear, Pinion Price: Call Us |
| 23 |
532149846 |
KNOB.OVAL.CUSTOM.BLACK Price: $5.99 |
| 23 |
776029A |
Shaft Gear-Brake Price: Call Us |
| 24 |
532416358 |
SCREW.#10 X 0.750.BOS (2 2) Price: $2.99 |
| 24 |
792017 |
Ring-Snap Price: Call Us |
| 25 |
776026 |
Shaft Bearing Assy., Pinion (Incl. No. 26) Price: Call Us |
| 25 |
872140424 |
BOLT.CARRIAGE Price: $2.99 |
| 26 |
780018 |
Bearing Price: Call Us |
| 26 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 873510400. Price: $2.99 |
| 27 |
532430087 |
SPACER.ENGINE.B&S.LRVA Price: $2.99 |
| 27 |
778034 |
Gear Cluster Assy. (Incl. No. 28) Price: Call Us |
| 28 |
580747201 |
HUB.FRICTION.COMPOSITE SUBASM This part replaces 532428301. Price: $34.99 |
| 28 |
780053 |
Bushing Price: Call Us |
| 29 |
532430817 |
BOLT, SCKT HD 3/8-24 X 1 .25 Price: $2.99 |
| 29 |
784074 |
Stop-Shifter Price: Call Us |
| 30 |
532430470 |
BEARING.BALL.689ZZ Price: $4.99 |
| 30 |
788023 |
Gasket-Case Cover Price: Call Us |
| 31 |
532437322 |
SPACER.NEUTRAL Price: $2.99 |
| 31 |
788022 |
Gasket-Lever Housing Price: Call Us |
| 32 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $3.99 |
| 32 |
778050 |
Gear, Shifting (3rd 4th) Price: Call Us |
| 33 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $2.99 |
| 33 |
778020 |
Gear, Shifting Price: Call Us |
| 34 |
532121250 |
SPRING Price: $3.99 |
| 34 |
778079 |
Gear, Side Price: Call Us |
| 35 |
778037 |
Gear-Spur Price: Call Us |
| 35 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $3.99 |
| 36 |
532127018 |
BOLT,SHOULD Price: $3.99 |
| 36 |
778049 |
Gear Cluster Assy. (Incl.28) Price: Call Us |
| 37 |
786024 |
Spacer Price: Call Us |
| 37 |
819171912 |
WASHER Price: $3.99 |
| 38 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT Price: $6.99 |
| 38 |
792018 |
Ring-Snap Price: Call Us |
| 39 |
532134300 |
SPACER SPLIT 28X.96 Price: $3.99 |
| 39 |
776053 |
Shaft, Input Price: Call Us |
| 40 |
532121248 |
BUSHING Price: $3.99 |
| 40 |
778024 |
Gear (10 teeth) Price: Call Us |
| 41 |
780052 |
Washer-Thrust Price: Call Us |
| 41 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 532123976. Price: $2.99 |
| 42 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $1.99 |
| 42 |
788036 |
Seal Retainer Assy., Oil (Incl. No. 45) Price: Call Us |
| 43 |
778036 |
Gear-Output Price: Call Us |
| 43 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK Price: $2.99 |
| 44 |
532440691 |
SEAT.SUBASY.OPP.WEEDEATER.LRVA This part replaces 532428243. Price: $129.99 |
| 44 |
778052 |
Pinion, Output Price: Call Us |
| 45 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $2.99 |
| 45 |
788008 |
Seal-Oil Price: Call Us |
| 46 |
817490508 |
SCREW LT Price: $3.99 |
| 47 |
532086777 |
Screw, Hex, Washer Hd., Slotted, Thd. Cutting #10-24 x 1/2 Type D (AYP part number) Price: $1.99 |
| 47 |
772041 |
Cover Assy., Transaxle (Incl. Nos.54,55,57,59,63 Price: Call Us |
| 48 |
532408981 |
BEARING FLANGE BALL Price: $5.99 |
| 48 |
770029 |
Case Assy., Transaxle (Incl. Nos. 54, 55, 57 63) Price: Call Us |
| 49 |
792007 |
Screw Price: Call Us |
| 49 |
817060516 |
SCREW 5/16-18X1 Price: $3.99 |
| 49A |
792031 |
Screw Price: Call Us |
| 50 |
786026 |
Dowel Pin Price: Call Us |
| 52 |
532145006 |
PUSH CLIP Price: $2.99 |
| 52 |
792019 |
Plug-Magnetic Drain Price: Call Us |
| 53 |
792055 |
Nut Price: Call Us |
| 54 |
780049 |
Bearing-Needle Price: Call Us |
| 55 |
530105 |
Bearing-Cartridge Price: Call Us |
| 57 |
780047 |
Bearing-Needle Price: Call Us |
| 59 |
780046 |
Bearing-Needle Price: Call Us |
| 61 |
780001 |
Washer Price: Call Us |
| 62 |
776031 |
Shaft Pinion Price: Call Us |
| 63 |
780048 |
Bearing Needle Price: Call Us |
| 64 |
776030 |
Shaft-Reverse Idler Price: Call Us |
| 65 |
786025 |
Spacer-Reverse Idler Price: Call Us |
| 66 |
778051 |
Idler-Reverse Price: Call Us |
| 67 |
778038 |
Gear-Spur (22 Teeth) Price: Call Us |
| 68 |
780039 |
Bearing-Thrust Price: Call Us |
| 69 |
774238 |
Carrier Assy., Differential (Incl. No. 76) Price: Call Us |
| 70 |
774239 |
Carrier Assy., Differential (Incl. No. 76) Price: Call Us |
| 71 |
792060 |
Tab, Locking Price: Call Us |
| 72 |
788024 |
O-Ring Price: Call Us |
| 73 |
780007 |
Washer-Thrust Price: Call Us |
| 74 |
780051 |
Washer Price: Call Us |
| 75 |
792010 |
Plug Price: Call Us |
| 76 |
780041 |
Bushing Price: Call Us |
