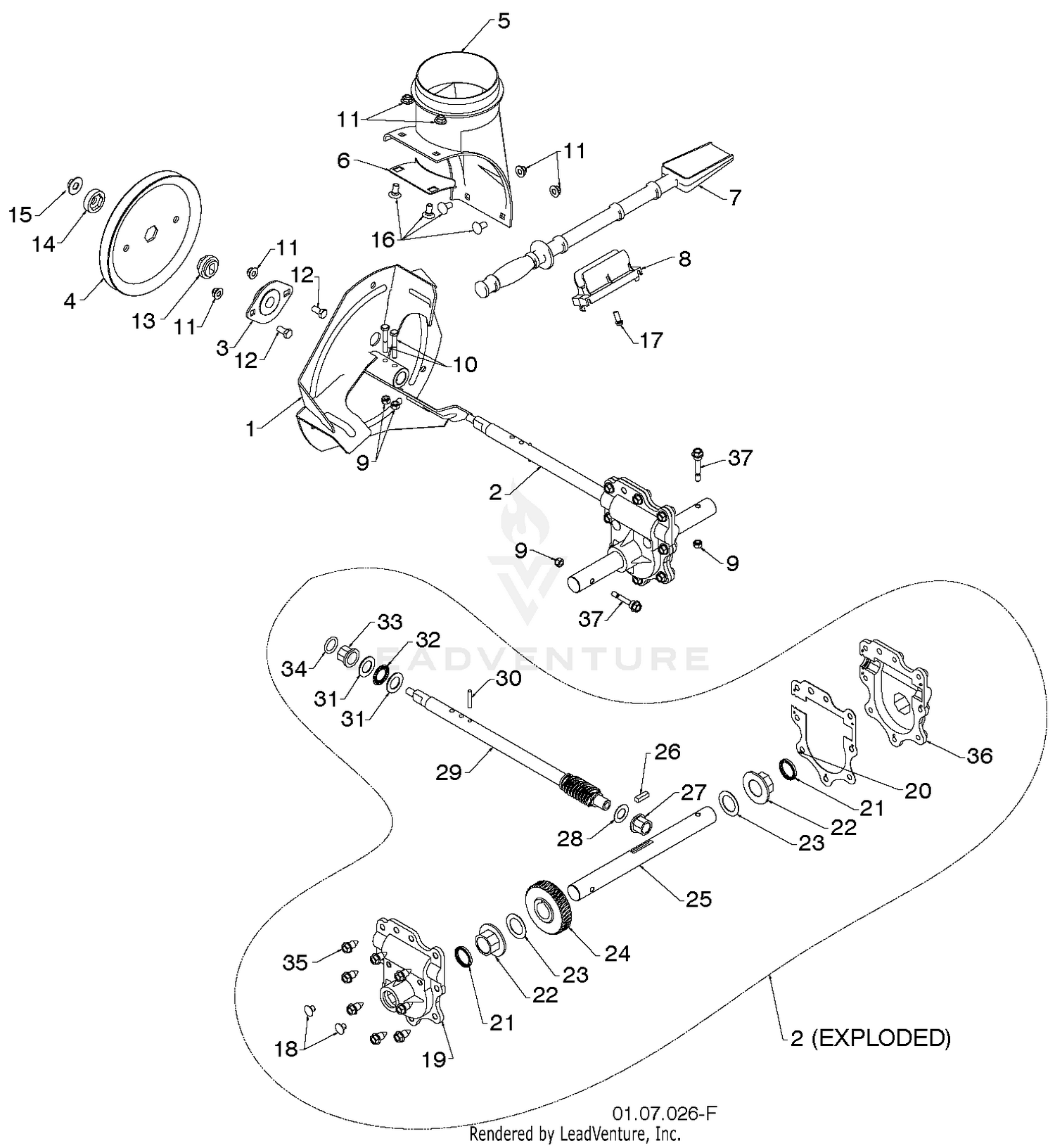

| Ref | Part Number | Description |
|---|
| 1 |
323-4 |
SCREW-HH Price: $1.02 |
| 1 |
532184105 |
IMPELLER ASSY Price: $49.99 |
| 2 |
23-2100 |
DISCONTINUED Price: Call Us |
| 2 |
532429659 |
KIT.GEARBOX.SNO This part replaces 532427148. Price: $249.99 |
| 3 |
21-3600 |
FOAM-SUPPORT, TANK Price: $25.75 |
| 3 |
532188909 |
BEARING FLANGE Price: $12.99 |
| 4 |
21-3620 |
DISCONTINUED Price: Call Us |
| 4 |
532427146 |
PULLEY.FLANGE.IMPELLER Price: $17.99 |
| 5 |
3255-7 |
WASHER-LOCK/EXT Price: $1.39 |
| 5 |
585056901 |
CHUTE.DISCHARGE.BASE This part replaces 532442438. Price: $6.99 |
| 6 |
3258-19 |
SCREW Price: $0.42 |
| 6 |
532184095 |
BRACKET, CORNER DISCHARGE Price: $2.99 |
| 7 |
21-3630 |
DISCONTINUED Price: Call Us |
| 7 |
532192199 |
CLEAN OUT TOOL Price: $19.99 |
| 8 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 8 |
532405400 |
CLIP.CLEANOUT.TOOL Price: $2.99 |
| 9 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 9 |
539976978 |
NUT 1/4-20 NYLOC This part replaces 873800400. Price: $1.99 |
| 10 |
23-2080 |
DISCONTINUED Price: Call Us |
| 10 |
874780426 |
SCREW.HEX.HD1/4-20X Price: $3.99 |
| 11 |
256-237 |
BUSHING Price: $14.99 |
| 11 |
532427942 |
NUTNYLOK.FLRANGE.5/16-18 Price: $2.99 |
| 12 |
321-4 |
SCREW-HH Price: $0.99 |
| 12 |
532163183 |
BOLT, HEX HEAD 5/16-18 Price: $2.99 |
| 13 |
10-7950 |
GAS CAP Price: $59.46 |
| 13 |
532427145 |
HUB.IMP.PULLEY.D-SHAFT Price: $3.99 |
| 14 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 14 |
532427154 |
SLEEVE.IMP.PULLEY.D-SHAFT Price: $2.99 |
| 15 |
3217-5 |
NUT-HEX Price: $0.25 |
| 15 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $2.99 |
| 16 |
21-3610 |
FOAM-SUPPORT, TANK Price: $20.11 |
| 16 |
532180355 |
BOLT.CARRIAGE.5/16-18X Price: $3.99 |
| 17 |
2412-41 |
CLAMP-R Price: $4.82 |
| 17 |
532194189 |
SCREW.HWH.13-16-5.8.BZP Price: $3.99 |
| 18 |
110-4100 |
HOSE-FUEL This part replaces 23-2140. Price: $28.86 |
| 18 |
532086447 |
Plug (AYP part number) This part replaces 532407760. Price: $3.99 |
| 19 |
2412-6 |
CLAMP-HOSE Price: $4.57 |
| 20 |
353-536 |
DISCONTINUED Price: Call Us |
| 20 |
532427345 |
GASKET.GEAR.BOX Price: $3.99 |
| 21 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 21 |
532174698 |
SEAL, OIL This part replaces 532407770. Price: $3.99 |
| 22 |
231-101 |
TIRE (23X8.5-12) 4-PLY TURF SAVER This part replaces 231-41. Price: $147.85 |
| 22 |
532174701 |
BUSHING FLANGE 1" This part replaces 532407762. Price: $27.99 |
| 23 |
23-7270 |
NUT-LUG Price: $10.37 |
| 23 |
532007396 |
Thrust Bearing Race (AYP part number) This part replaces 532174697. Price: $3.99 |
| 24 |
217-105 |
DISCONTINUED X-REF Price: Call Us |
| 24 |
532407763 |
WORM GEAR Price: $44.99 |
| 25 |
5108 |
VALVE This part replaces 232-27. Price: $6.29 |
| 25 |
532174657 |
SHAFT, AUGER This part replaces 532407764. Price: $39.99 |
| 26 |
43-7630 |
AXLE WA *RO This part replaces 28-0720. Price: $4,368.18 |
| 26 |
532189282 |
KEY, SQUARE 1/4 X .875 Price: $3.99 |
| 27 |
324-5 |
SCREW-HH Price: $0.54 |
| 27 |
532174686 |
BUSHING.FLANGE.(.625X.75) This part replaces 532407758. Price: $19.99 |
| 28 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 28 |
532174683 |
WASHER, THRUST 5/8 Price: $3.99 |
| 29 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 29 |
532427147 |
SHAFT.IMPELLER.D-SHAFT Price: $84.99 |
| 30 |
3217-6 |
NUT-HEX Price: $1.19 |
| 30 |
532001572 |
Pin, Roll, 3/16 x 1 (AYP part number) This part replaces 532184205. Price: $3.99 |
| 31 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 31 |
532174681 |
WASHER, THRUST 3/4 Price: $9.99 |
| 32 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 32 |
532174684 |
BEARING TRUST 3/4 NTA-1220 Price: $5.99 |
| 33 |
2811-9 |
FITTING-ELBOW-90 Price: $15.86 |
| 33 |
532407769 |
BUSHING, FLANGE 3/4 Price: $3.99 |
| 34 |
289-37 |
NIPPLE-PIPE Price: $21.68 |
| 34 |
532407768 |
O-RING Price: $3.99 |
| 35 |
23-5180 |
DIPSTICK ASM Price: $69.61 |
| 35 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532407767. Price: $2.99 |
| 36 |
218-219 |
DISCONTINUED Price: Call Us |
| 37 |
26-6840 |
DISCONTINUED Price: Call Us |
