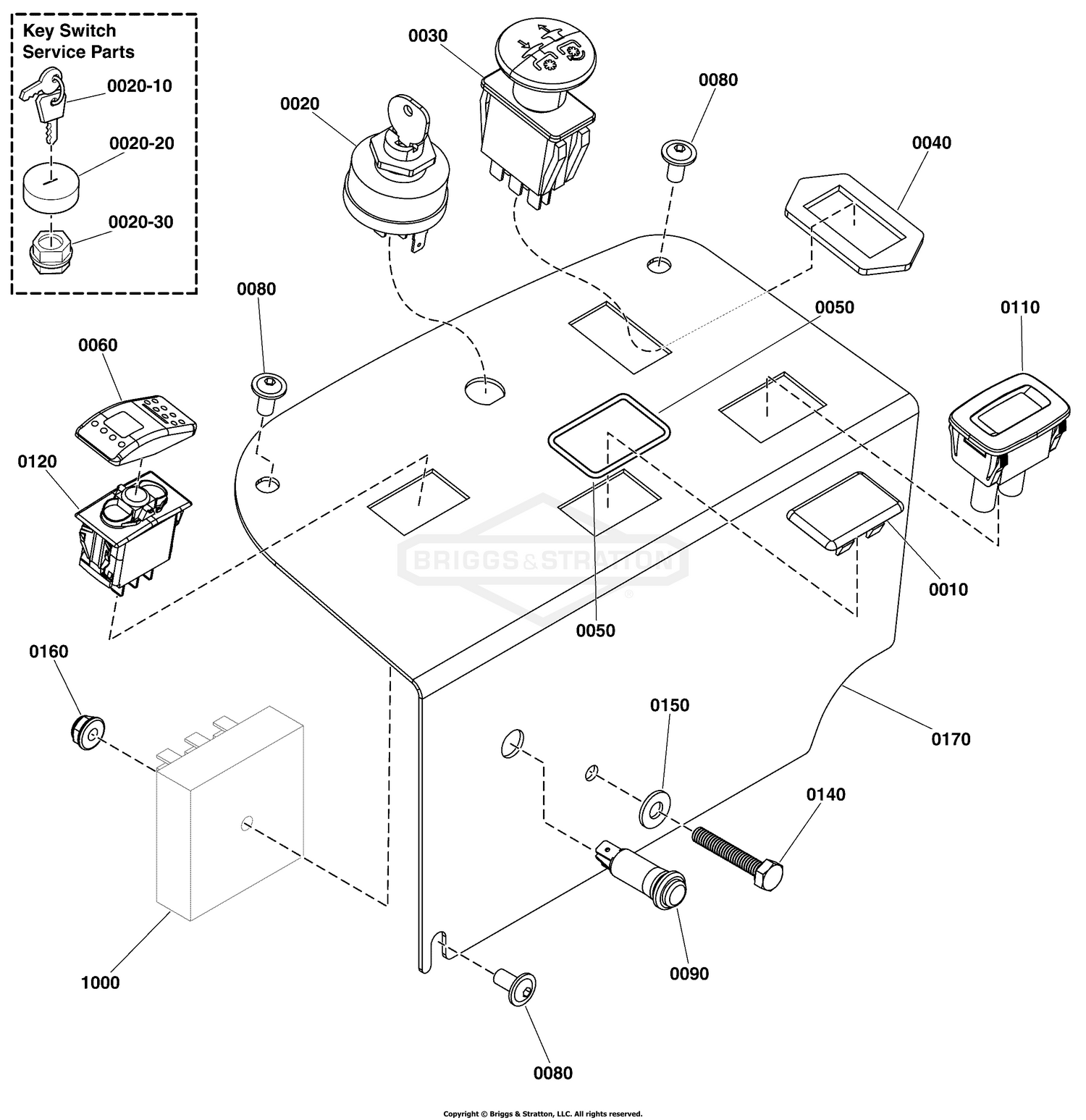

Instrument Control Panel Group - Fuel Injected Models with Electronic Throttle Control Switch

Instrument Control Panel Group - Fuel Injected Models with Electronic Throttle Control Switch

Parts (13)

RefPart NumberDescription
0010 1709188SM PLUG, BLACK PLASTIC This part replaces 1709188. Price: $4.62
0020 5020927FS SWITCH, IGNITION This part replaces 5020927. Price: $30.37
0030 1722887SM SWITCH-PTO PUSH This part replaces 1722887. Price: $30.86
0040 5022222SM RING, SWITCH RETAINER This part replaces 5022222. Price: $3.94
0050 5022269SM O-RING, 7/8" ID X 1/1 This part replaces 5022269. Price: $2.97
0060 84006404 SWITCH, ROCKER This part replaces 5102219. Price: $5.83
0080 84002228 SCREW, FLANGE This part replaces 5106469. Price: $2.22
0090 5103809YP LIGHT, Indicator This part replaces 5103809. Price: $27.00
0110 84008510 HOURMETER (6 Pin Connector) Price: $30.73
0120 84006405 BODY, ROCKER SWITCH This part replaces 5102218. Price: $28.10
0140 5025010X12SM BOLT, 1/4-20 This part replaces 5025010X12. Price: $2.65
0150 703332 WASHER This part replaces 5025154. Price: $3.72
0160 5025391FS NUT This part replaces 5025391. Price: $3.62
