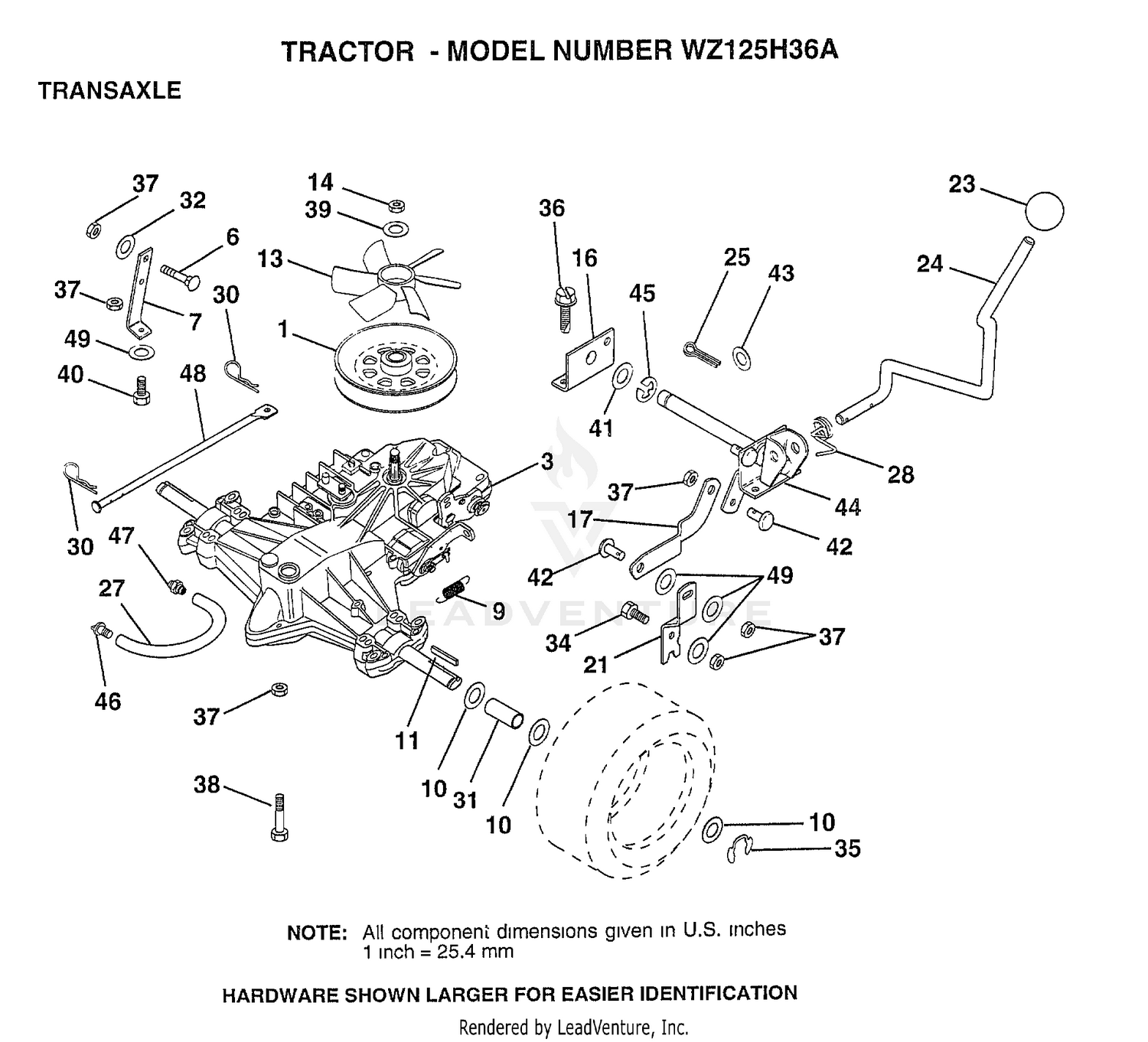

| Ref | Part Number | Description |
|---|
| 1 |
100-3393-03 |
PLATE-LEVER, LIFT Price: $47.26 |
| 1 |
140779 |
PULLEY.V-GROOVE Price: Call Us |
| 2 |
106-0392 |
DECAL-PANEL, DECK LIFT This part replaces 106-0482. Price: $37.89 |
| 3 |
44-2210 |
LIGHT-INDICATOR, RED Price: $57.97 |
| 3 |
72140506 |
BOLT Price: Call Us |
| 4 |
3290-133 |
SCREW Price: $1.19 |
| 5 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 6 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 7 |
140774 |
STRAP.TORQUE.HYD Price: Call Us |
| 7 |
63-8360 |
KEY-IGNITION Price: $5.29 |
| 8 |
233-66 |
DISCONTINUED Price: Call Us |
| 9 |
146682 |
SPRING.BRAKE.RETU Price: Call Us |
| 9 |
3253-15 |
WASHER-LOCK Price: $1.49 |
| 10 |
121749X |
WASHER Price: Call Us |
| 10 |
43-6280 |
DISCONTINUED Price: Call Us |
| 11 |
123583X |
SQUARE KEY Price: Call Us |
| 11 |
43-6420 |
BEZEL Price: $57.54 |
| 12 |
106-0391 |
DECAL-PANEL, CONTROL This part replaces 106-0399. Price: $52.30 |
| 13 |
106-0486-03 |
PLATE-CONTROL Price: $26.51 |
| 13 |
140778 |
FAN.HYDRO.6FANS Price: Call Us |
| 14 |
108-8001 |
DECAL-FUSE Price: $9.79 |
| 15 |
69-9740 |
SWITCH Price: $125.46 |
| 16 |
107-2186 |
HARNESS-WIRE Price: $1,892.38 |
| 16 |
140763 |
SUPPORT.HDLE.SHFT Price: Call Us |
| 17 |
140767 |
LINK.SHIFT.HYD.LR Price: Call Us |
| 17 |
72-9760 |
SWITCH Price: $179.11 |
| 18 |
104-2541 |
SWITCH ASM Price: $36.70 |
| 19 |
3290-392 |
SCREW-SHH Price: $0.53 |
| 20 |
69-9730 |
SWITCH-PTO Price: $267.65 |
| 21 |
140773 |
LEVER.SHIFT.TRANS Price: Call Us |
| 23 |
106933X |
KNOB T (1/2-HOLE) Price: Call Us |
| 24 |
140765 |
ROD.SHIFTER.HYD. Price: Call Us |
| 25 |
69-7040 |
HOLDER-CUP Price: $57.78 |
| 25 |
76020416 |
PIN COTTER 1/8 Price: Call Us |
| 26 |
321-3 |
SCREW-HH Price: $0.28 |
| 27 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 28 |
140772 |
SPRING.TORSION.LR Price: Call Us |
| 28 |
71-2430-03 |
REAR PLATE ASM Price: $54.89 |
| 29 |
71-4130 |
SUPPORT-CONTROL Price: $347.75 |
| 30 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 30 |
4497H |
RETAINER M Price: Call Us |
| 31 |
121199X |
SPACER SPLIT Price: Call Us |
| 31 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 32 |
19111116 |
WASHER Price: Call Us |
| 32 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 33 |
32149-7 |
NUT-KEPS Price: $0.27 |
| 34 |
74760516 |
SUB= 77394 Price: Call Us |
| 34 |
92-8661 |
TAB Price: $4.04 |
| 35 |
12000001 |
E-RING LT Price: Call Us |
| 35 |
3229-8 |
SCREW-CARR Price: $2.99 |
| 36 |
17720408 |
SCREW Price: Call Us |
| 36 |
32149-2 |
NUT-KEPS Price: $2.39 |
| 37 |
73800500 |
NUT Price: Call Us |
| 37 |
80-9330 |
AUDIO ALARM ASM Price: $137.61 |
| 38 |
139-5984 |
CONTROLLER-ELECTRONIC This part replaces 92-5720. Price: $2,183.63 |
| 38 |
74490544 |
BOLT.HX.FLG.5/16 Price: Call Us |
| 39 |
108-8002 |
DECAL-FUSE Price: $9.15 |
| 39 |
19171912 |
WASHER Price: Call Us |
| 40 |
69-6260 |
MAGNET Price: $58.32 |
| 40 |
74760524 |
BOLT.HEX.5/16-1.5 Price: Call Us |
| 41 |
19212013 |
WASHER Price: Call Us |
| 41 |
32105-1 |
SCREW-SHH Price: $3.19 |
| 42 |
140769 |
PIN.PIVOT.SHIFT. Price: Call Us |
| 42 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 43 |
19171216 |
WASHER Price: Call Us |
| 43 |
323-4 |
SCREW-HH Price: $1.02 |
| 44 |
156047 |
SHAFT.PIVOT.LR. Price: Call Us |
| 44 |
71-4170 |
SWITCH Price: $166.36 |
| 45 |
12000002 |
SUB= 2225J Price: Call Us |
| 48 |
140912 |
ACTUATOR.BYPASS Price: Call Us |
