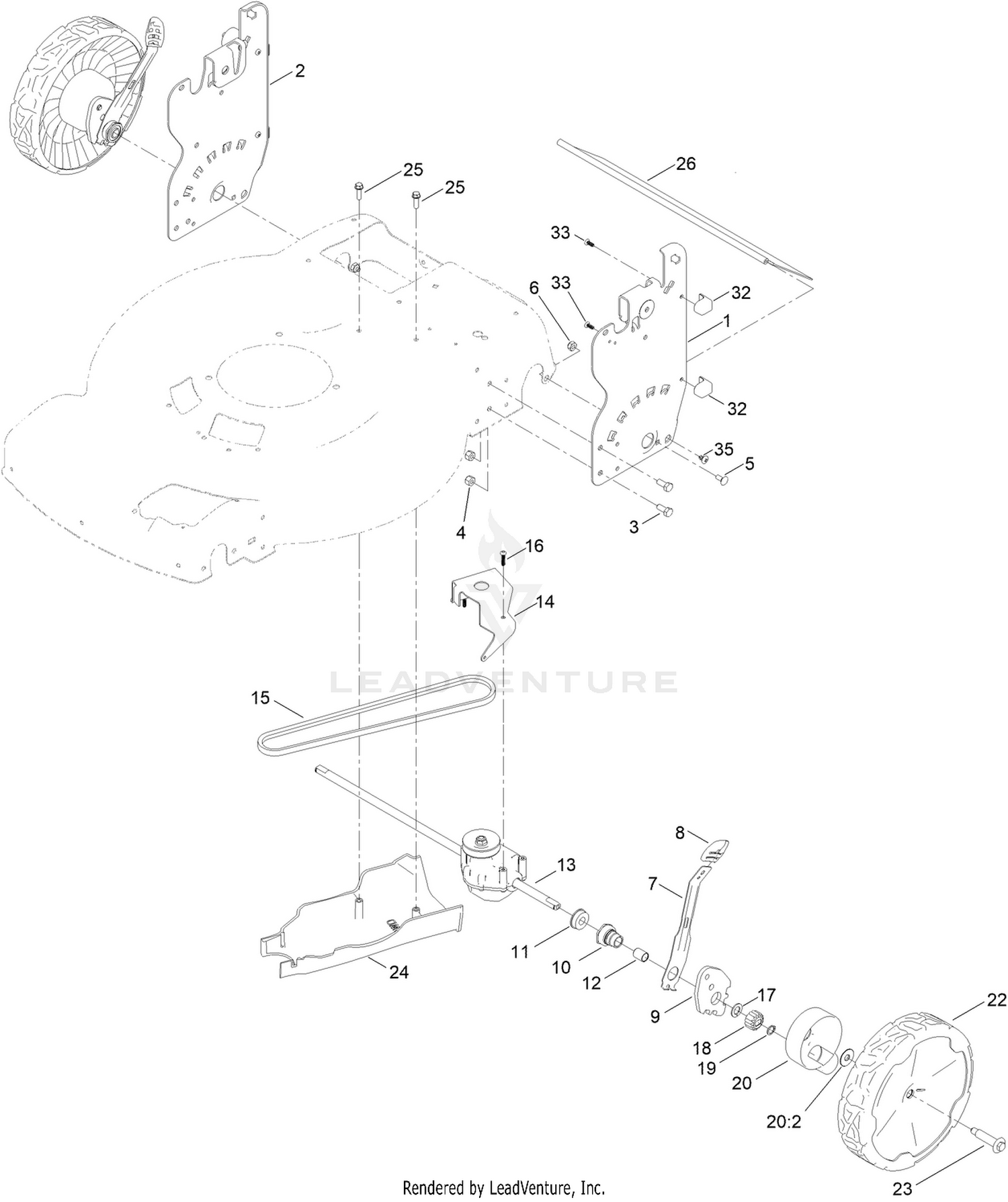

| Ref | Part Number | Description |
|---|
| 1 |
144-6477-05 |
PLATE-HOC, LH Price: $22.99 |
| 2 |
139-6592-05 |
PLATE-HOC, RH (2 HOLE) Price: $22.99 |
| 3 |
137-3052 |
SCREW-HH Price: $0.39 |
| 4 |
119-4038 |
NUT-HEX Price: $0.31 |
| 5 |
100-1445 |
BOLT-CARR Price: $0.39 |
| 6 |
139-1724 |
NUT-LOCK Price: $0.39 |
| 7 |
132-4486 |
ARM-SPRING Price: $13.99 |
| 8 |
105-3042 |
KNOB-LEVER, HOC Price: $4.09 |
| 9 |
139-5451 |
ARM-PIVOT, REAR Price: $11.99 |
| 10 |
108-9779 |
RETAINER-BUSHING, HOC Price: $12.99 |
| 11 |
104-8699 |
BEARING-BALL Price: $4.39 |
| 12 |
108-9782 |
BUSHING-SLEEVE Price: $3.29 |
| 13 |
139-6561 |
TRANSMISSION-RWD Price: $111.99 |
| 14 |
114-7977-03 |
BRACKET-TRANSMISSION Price: $12.99 |
| 15 |
140-4041 |
V-BELT Price: $16.99 |
| 16 |
120-9676 |
SCREW-PLASTITE Price: Call Us |
| 17 |
110-7191 |
WASHER-THRUST Price: $1.79 |
| 18 |
131-5399 |
GEAR-PINION, 15T Price: $4.79 |
| 19 |
32151-61 |
RING-RETAINING Price: $2.39 |
| 20 |
140-2362 |
ASM-COVER, GEAR (DK GRAY) Price: $3.89 |
| 22 |
140-2350 |
ASM-9.65" WHEEL, GEARED Price: $23.99 |
| 23 |
614650 |
BOLT-SHOULDER Price: $3.99 |
| 24 |
139-5448 |
COVER-BELT, RWD Price: $7.99 |
| 25 |
137-3099 |
SCREW-PLASTITE, HWH Price: $0.79 |
| 26 |
145-5821 |
SHIELD-TRAILING, ASM This part replaces 139-6597. Price: $15.99 |
| 32 |
140-2369 |
PAD-SMART STOW Price: $0.89 |
| 33 |
137-9137 |
SCREW-PPH Price: $0.89 |
