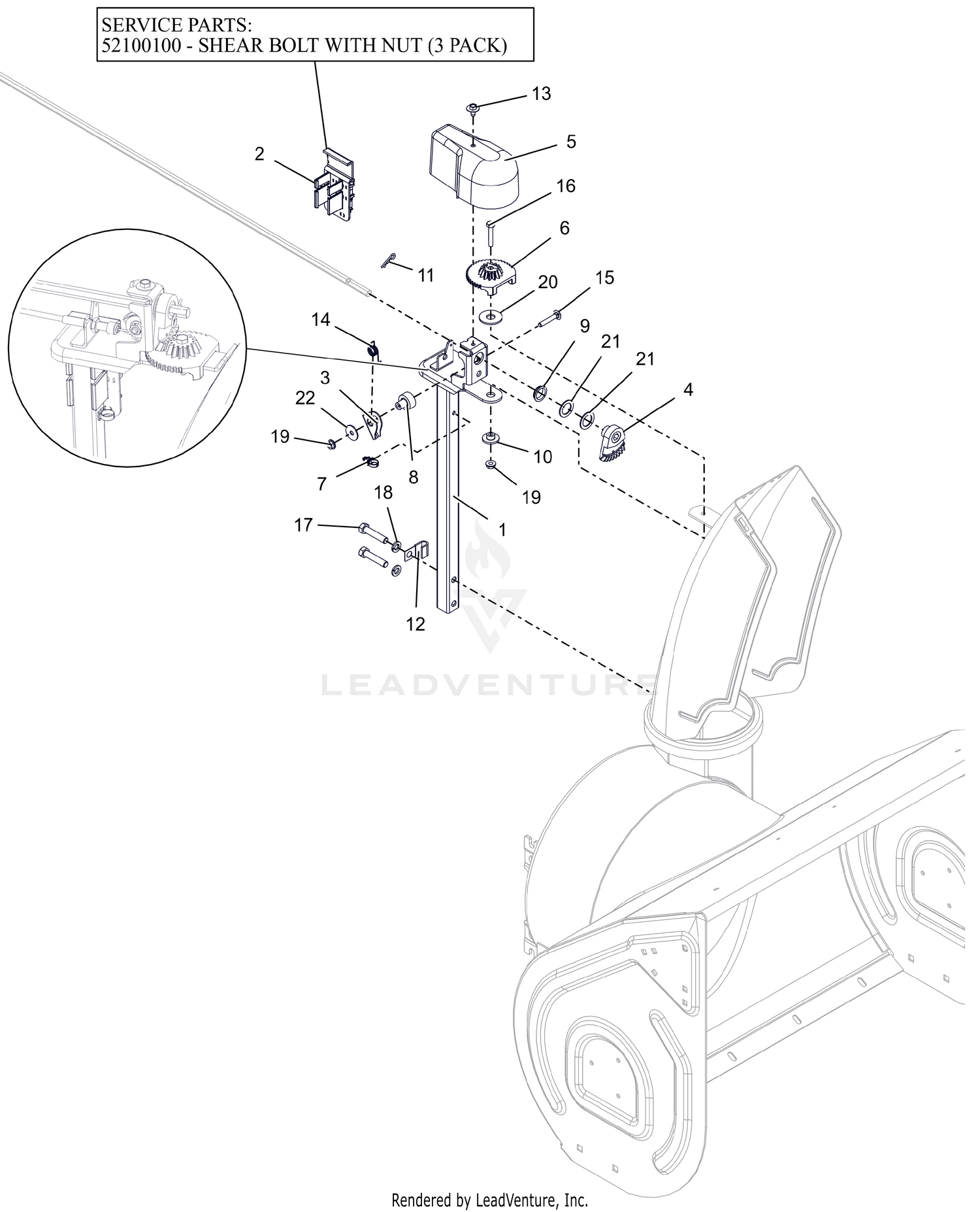

| Ref | Part Number | Description |
|---|
| 1 |
03897451 |
PEDESTAL, CHUTE - QUICK STICK Price: $36.95 |
| 2 |
52104700 |
HOLDER W LARGE SHEAR BOLT /NUT Price: $21.45 |
| 3 |
05081900 |
ARM, LOCKING Price: $4.95 |
| 4 |
09478700 |
GEAR- CHUTE-ACTUATION This part replaces 00184300. Price: $7.45 |
| 5 |
00261700 |
COVER, CHUTE GEAR Price: $17.95 |
| 6 |
09478600 |
GEAR- CHUTE-LOCKING This part replaces 03898700. Price: $12.45 |
| 7 |
04451600 |
CLIP, CABLE GUIDE Price: $1.95 |
| 8 |
05500024 |
BUSHING, LOCK ARM Price: $3.45 |
| 9 |
05500027 |
BUSHING, POLYLINER-.75 SNAPIN Price: $1.95 |
| 10 |
05500920 |
BSHG-FLG .265X.477X.375X1.00 Price: $3.45 |
| 11 |
06700222 |
PIN, HAIR #213 .08X1.19 ZCC Price: $0.45 |
| 12 |
06909400 |
J-CLAMP Price: $3.45 |
| 13 |
07400138 |
SCR, TAP .25-20X.50 LG HWH ZCC Price: $1.45 |
| 14 |
08300014 |
SG-TORS Price: $0.95 |
| 15 |
06200331 |
BLT, RHSN .25-20X1.50 G5 ZCC Price: $1.45 |
| 16 |
05901739 |
BLT, HEX .25-20X1.50 G5 ZCC Price: $1.45 |
| 17 |
05901809 |
BLT, HEX .38-16X1.75 G5 ZCC Price: $1.45 |
| 18 |
06300116 |
WSHR,LK-REG .375X.094 ZCC Price: $0.95 |
| 19 |
06500821 |
NUT-LK-CTR-FLG .25-20 ZC120 Price: $0.45 |
| 20 |
06400904 |
WSHR-FLT-NYL .515X1.375X.093 Price: $2.45 |
| 21 |
06401119 |
WSHR, FLT .754X1.125X.062 ZCC Price: $0.95 |
