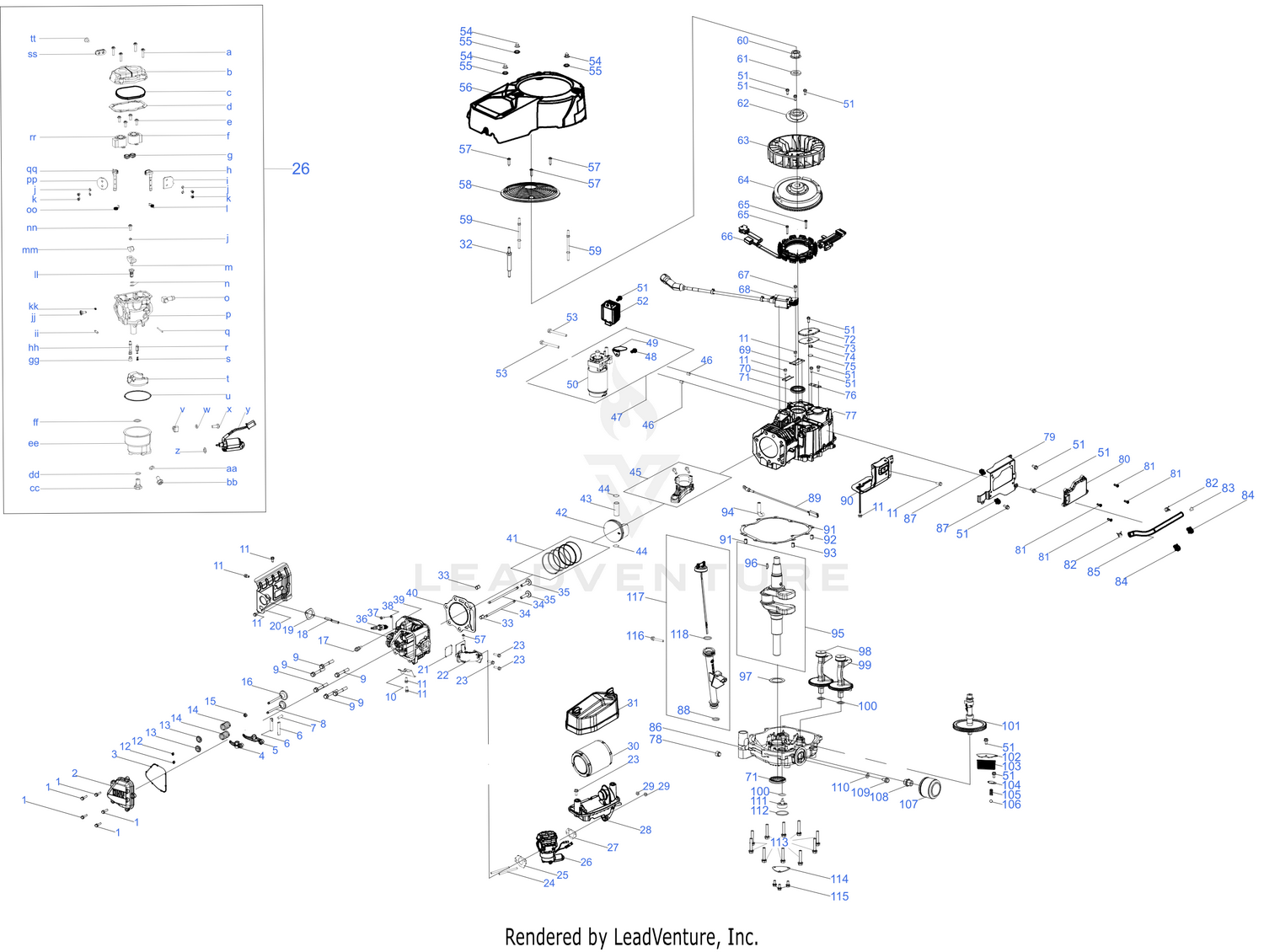

AX90HUD General Assembly
Parts (137)
| Ref | Part Number | Description |
|---|---|---|
| aa | 951-11349A | FUEL DRAIN PLUG GASKET Price: $3.66 |
| b | 731P18251 | CARBURETOR COVER Price: $3.89 |
| bb | 910-06752 | DRAIN BOLT Price: $4.45 |
| cc | 710-06198 | FUEL BOWL BOLT Price: $1.92 |
| e | 710-05268 | SCREW M4-0.7x10 Price: $1.92 |
| ee | 619P05093 | FLOAT BOWL Price: $9.41 |
| ff | 721P04699 | SEAL Price: $1.92 |
| ii | 793P00129A | IDLE MIXTURE SCREW Price: $2.45 |
| j | 736-04638A | LOCK WASHER Price: $2.88 |
| l | 732P06586 | CHOKE SPRING Price: $1.78 |
| o | 737P05014 | FUEL NIPPLE Price: $2.39 |
| q | 711-06036 | HINGE FLOAT PIN Price: $0.60 |
| r | 751P14036A | NEEDLE VALVE Price: $5.16 |
| s | 732P05251A | NEEDLE VALVE SPRING Price: $1.70 |
| t | 731P09131 | CARBURETOR FLOAT Price: $2.89 |
| u | 951-11970 | FUEL BOWL GASKET Price: $5.95 |
| w | 736-04629 | WASHER Price: $3.56 |
| y | 951-14972 | CARBURETOR SOLENOID VALVE ASM Price: $40.38 |
| z | 736-05077 | WASHER 12x8.2x.8 Price: $1.78 |
| 1 | 710-04919 | BOLT M6-1 x 25 GR8.8 Price: $3.86 |
| 2 | 951-14914 | VALVE COVER Price: $24.77 |
| 3 | 951-14913 | VALVE COVER GASKET Price: $12.13 |
| 4 | 651P05491 | ROCKER ARM (EXHAUST) Price: $12.09 |
| 5 | 651P05490 | ROCKER ARM (INTAKE) Price: $11.76 |
| 6 | 911-06414 | ROCKER ARM SHAFT Price: $5.04 |
| 7 | 915-05035 | CAMSHAFT PIN Price: $6.79 |
| 8 | 951-14909 | EXHAUST VALVE Price: $23.50 |
| 9 | 710-06291 | BOLT M10-1.25 x 70 Price: $4.31 |
| 10 | 708-07167 | HEAT SHEILD Price: $1.70 |
| 11 | 710-04915 | BOLT M6-1 x 12 GR8.8 Price: $3.82 |
| 12 | 951-14912A | VALVE CAP Price: $3.03 |
| 13 | 951-14911A | VALVE SPRING SEAT Price: $4.64 |
| 14 | 951-14910 | VALVE SPRING Price: $8.85 |
| 15 | 951-11964A | INTAKE VALVE SEAL Price: $9.96 |
| 16 | 951-14908 | INTAKE VALVE Price: $23.50 |
| 17 | 710-05305 | HOOK BOLT Price: $3.56 |
| 18 | 910-06299 | STUD Price: $4.09 |
| 19 | 921-04744 | EXHAUST GASKET Price: $6.13 |
| 20 | 751P22449 | BAFFLE BRACKET Price: $7.40 |
| 21 | 951-14915 | INTAKE PIPE RING Price: $4.31 |
| 22 | 931-10879 | INTAKE PIPE Price: $21.69 |
| 23 | 710-06292 | BOLT M6 x 22 Price: $4.40 |
| 24 | 710-06319 | STUD M6-1.00 x 92 Price: $5.48 |
| 25 | 951-14947 | INTAKE GASKET Price: $7.16 |
| 26 | 651P08733 | CARBURETOR Price: $58.10 |
| 27 | 921-04745 | AIR FLTER GASKET Price: $6.13 |
| 28 | 931-05262 | INTAKE MANIFOLD Price: $18.07 |
| 29 | 712-05015 | HEX NUT Price: $5.78 |
| 30 | 937-05066 | AIR FILTER W/PREFILTER Price: $21.19 |
| 31 | 651P06315 | AIR FILTER COVER Price: $15.52 |
| 32 | 710-11659 | STUD M6 X 113 Price: $2.84 |
| 33 | None | PIN, 12x16 |
| 34 | 951-14898 | SINGLE PUSH ROD Price: $19.91 |
| 35 | 951-15614 | TAPPET Price: $5.95 |
| 36 | 951-10292A | SPARK PLUG (F6RTC/RN11YC/BPR6ES) Price: $6.35 |
| 37 | 710-06290 | BOLT M5-.8 x 10 Price: $4.31 |
| 38 | 936-05113 | FLAT WASHER: 5.3 x 10 x 1 Price: $5.10 |
| 39 | 918-07090 | CYLINDER HEAD Price: $255.83 |
| 40 | 921-04743 | CYLINDER HEAD GASKET Price: $14.47 |
| 41 | 951-05248 | PISTON RING SET Price: $25.28 |
| 42 | 951-14905 | PISTON Price: $48.83 |
| 43 | 911-06415 | PISTON PIN Price: $8.96 |
| 44 | 951-11953A | PISTON PIN SNAP RING Price: $3.42 |
| 45 | 951-14902 | CONNECTING ROD ASSEMBLY Price: $66.75 |
| 46 | 915-05026 | DOWEL PIN Price: $4.40 |
| 47 | 725P14645 | ELECTRIC STARTER Price: $233.93 |
| 48 | 710-04968 | BOLT M6 x 16 Price: $5.77 |
| 49 | 751P18186 | STARTER SHIELD BRACKET Price: $0.58 |
| 51 | 710-04916 | BOLT M6-1 x 14 GR8.8 Price: $3.86 |
| 52 | 725P18483 | REGULATOR Price: $44.42 |
| 53 | 710-06286 | BOLT M8-1.25 x 80 Price: $4.40 |
| 54 | 712-04276A | ACORN NUT M6-1 Price: $5.38 |
| 55 | 736-05109 | WASHER Price: $5.34 |
| 56 | 751-22451 | Shroud Price: Call Us |
| 57 | 710-05303 | BOLT 5.5 x 25 Price: $3.56 |
| 58 | 951-12205 | DEBRIS SHIELD Price: $9.07 |
| 59 | 910-06310 | STUD Price: $6.37 |
| 60 | 912-05102 | NUT M20 x 1.5 Price: $7.35 |
| 61 | 936-05110 | WASHER 20.5 x 5 x 40 Price: $5.34 |
| 62 | 751P22232 | COOLING FAN PLATE Price: $8.31 |
| 63 | 931-10866 | COOLING FAN Price: $43.41 |
| 64 | 951-15766 | Flywheel Price: $198.18 |
| 65 | 710-06448 | BOLT M5 x 28 Price: $3.32 |
| 66 | 751P22615 | ALTERNATOR Price: $26.19 |
| 67 | 710-04943 | BOLT-M6-1 x 28 GR8.8 Price: $3.76 |
| 68 | 751P22452 | IGNITION MODULE Price: $18.22 |
| 69 | 951-14921 | WIRE PLATE Price: $4.31 |
| 70 | 951-14922 | BREATHER SCREEN Price: $4.31 |
| 71 | 937-05067 | OIL SEAL 38 x 58 x 8 Price: $13.55 |
| 72 | 907-06254 | BREATHER COVER Price: $7.20 |
| 73 | 921-04738 | BREATHER COVER GASKET Price: $5.06 |
| 74 | 732-04718A | BREATHER VALVE SPRING Price: $3.30 |
| 75 | 951-11614A | BREATHER VALVE Price: $3.13 |
| 76 | 907-06255 | BRACKET Price: $4.09 |
| 77 | 751P18207 | CRANKCASE Price: $271.70 |
| 78 | 951-11644 | ENGINE PLUG 3/8 NPT Price: $8.96 |
| 79 | 708P07164 | ECM MOUNT BRACKET Price: $5.12 |
| 80 | 725P18620 | ENGINE CONTROL MODULE This part replaces 725P18428. Price: $43.45 |
| 81 | 710-06212 | SCREW M4x12 Price: $1.56 |
| 82 | 951-11700A | CARBURETOR HOSE CLAMP Price: $3.60 |
| 83 | 951-14091A | PLUG Price: $2.68 |
| 84 | 723-04071A | FUEL LINE SUPPORT CLAMP Price: $2.77 |
| 85 | 993-00171 | FUEL HOSE 6.3 x 12.5 x 250 Price: $8.12 |
| 86 | 751P18211 | CRANKCASE COVER Price: $159.21 |
| 87 | 931-10630A | WIRE SUPPORT CLAMP Price: $4.75 |
| 88 | 921-04740 | O-RING Price: $4.31 |
| 89 | 751P22616 | TEMPERATURE SENSOR Price: $6.83 |
| 90 | 907-06280 | SHROUD - RIGHT Price: $10.34 |
| 91 | 921-04741 | CRANKCASE COVER GASKET Price: $14.26 |
| 92 | 715-04096A | DOWEL PIN 9 X 14 Price: $3.66 |
| 93 | 715-04092A | DOWEL PIN 7 X 14 Price: $2.97 |
| 94 | 951-14916 | VENTING HOSE Price: $4.31 |
| 95 | 951-05245 | CRANKSHAFT ASSEMBLY Price: $253.31 |
| 96 | 751P10307A | WOODRUFF KEY Price: $2.01 |
| 97 | 936-05111 | WASHER 38.3 x 54 x 1 Price: $4.40 |
| 98 | 917-05292A | BALANCE SHAFT (LH) Price: $71.01 |
| 99 | 917-05293A | BALANCE SHAFT (RH) Price: $71.01 |
| 100 | 936-05112 | WASHER 17.2 x 26 x 1 Price: $4.40 |
| 101 | 919-05216 | CAMSHAFT Price: $70.24 |
| 102 | 931-10867 | FILTER COVER Price: $4.31 |
| 103 | 937-05069 | BREATHER FILTER SCREEN Price: $4.20 |
| 104 | 951-14895 | PRESSURE RELEASE COVER Price: $4.69 |
| 105 | 932-05290 | PRESSURE RELEASE SPRING Price: $4.40 |
| 106 | 951-15588 | OIL PUMP STEEL BALL Price: $3.50 |
| 107 | 951-12690 | ENGINE OIL FILTER Price: $15.89 |
| 108 | 951-12253 | SCREW JOINT OIL FILTER ADAPTER Price: $6.87 |
| 109 | 710-05313 | BOLT M8 x 15 Price: $3.56 |
| 110 | 736-04560 | OIL DRAIN PLUG WASHER Price: $3.68 |
| 111 | 951-05247 | OIL PUMP ASSEMBLY Price: $51.44 |
| 112 | 921-04742 | GASKET Price: $6.13 |
| 113 | 710-06289 | BOLT M8 x 45 Price: $3.89 |
| 114 | 951-14896 | OIL SEPARATOR Price: $4.69 |
| 115 | 710-06565 | BOLT M6x12 Price: $1.70 |
| 116 | 710-06287 | BOLT M6-1 x 45 CL5.8 Price: $4.40 |
| 117 | 924-05033A | DIPSTICK ASSEMBLY Price: $23.50 |
| 118 | 721P07061 | O-RING Price: $1.78 |
| 752ZAX90HUD | Complete | Engine Price: Call Us 752ZAX90HUD |
