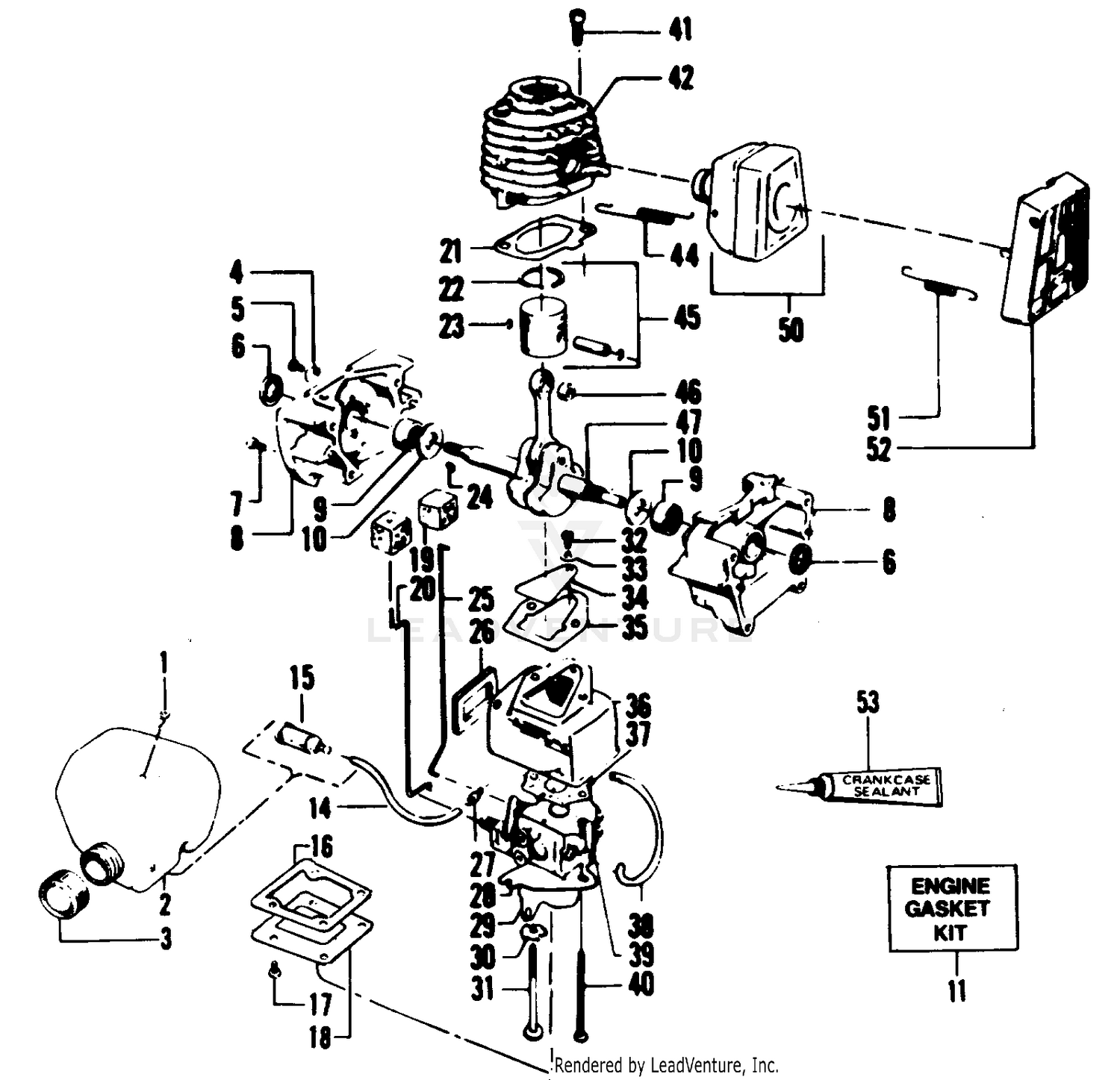

| Ref | Part Number | Description |
|---|
| 1 |
2412-31 |
CLAMP-BODEN Price: $1.56 |
| 1 |
530026119 |
Check Valve - Duck Bill Price: $1.99 |
| 2 |
32140-32 |
SCREW-HH Price: $1.19 |
| 2 |
530010776 |
Fuel Tank Assembly (Incl. #1, 3, 14 & 15) Price: $3.33 |
| 3 |
38-1950 |
PIVOT SHAFT WA Price: $177.36 |
| 3 |
530014347 |
Assy-Fuel Cap This part replaces 530010729. Price: $4.99 |
| 4 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 4 |
530024651 |
Clamp - Choke Wire Price: $3.33 |
| 5 |
3210-3 |
SCREW-HH Price: $5.29 |
| 5 |
530015004 |
Screw - 8 - 32x5/16 - Pan Hd. - Choke Rod Clamp Price: $1.99 |
| 6 |
3220-1 |
NUT-JAM Price: $0.99 |
| 6 |
530019059 |
Seal - Crankcase Price: $4.99 |
| 7 |
329-4 |
SCREW-HH Price: $0.79 |
| 7 |
530015369 |
Screw - Crankcase Price: $0.04 |
| 8 |
18-1720 |
BALL JOINT Price: $50.30 |
| 8 |
530010757 |
Crankcase Assembly (Incl. #4, 9 & Qty. 1 of #7) Price: Call Us |
| 9 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 9 |
530032029 |
Bearing - Crankcase Price: $7.99 |
| 10 |
38-1970 |
PIVOT ARM WA Price: $255.60 |
| 10 |
530015351 |
Washer - Thrust - Crankcase Price: $3.99 |
| 11 |
3219-1 |
NUT-HEX Price: $0.47 |
| 11 |
530069219 |
Kit - Engine Gasket Price: $11.54 |
| 12 |
19-3400 |
DISCONTINUED Price: Call Us |
| 13 |
19-3430 |
DISCONTINUED Price: Call Us |
| 14 |
3256-28 |
WASHER-FLAT Price: $0.48 |
| 14 |
530021042 |
Fuel Line - Type 1, 2 & 3 Price: $3.33 |
| 14 |
530069247 |
Line Kit - Type 4 Price: $3.99 |
| 15 |
256-244 |
BUSHING Price: $5.77 |
| 15 |
530091878 |
Type 1, 2 & 3 Price: $5.99 |
| 15 |
530095646 |
Assy-Fuel Pickup This part replaces 530010897. Price: $2.99 |
| 16 |
19-3850 |
DISCONTINUED Price: Call Us |
| 16 |
530019112 |
Gasket - Carburetor Case Cover - ModelS XR-50,XR-70 Type 1 Price: $2.99 |
| 17 |
530015235 |
Screw - 8 - 18x9/16" - Pan Hd. - Carb. Case Cover Price: Call Us |
| 18 |
530026029 |
Model XR-50 Type 2, 3 & 4 Price: $3.99 |
| 19 |
530023373 |
Boot - Throttle - Choke Wire Price: $1.99 |
| 20 |
530026236 |
Model XR-50 Type 2, 3 & 4 Price: $1.99 |
| 21 |
530069219 |
Engine Gasket Kit This part replaces 530019111. Price: $11.54 |
| 22 |
530024302 |
Type 1, 2 & 3 Price: $6.99 |
| 22 |
530027369 |
Type 4 Price: $4.99 |
| 23 |
530015162 |
Retainer - Wrist Pin Price: $1.99 |
| 24 |
530015126 |
Key - Flywheel Price: $1.99 |
| 25 |
530024902 |
Throttle Wire Price: $3.33 |
| 26 |
530019105 |
Seal - Carburetor Case Price: Call Us |
| 27 |
530025472 |
Type 1, 2 & 3 Price: $1.99 |
| 27 |
530026981 |
Type 4 Price: $1.99 |
| 28 |
530026237 |
Model XR-50 Type 2, 3 & 4 Price: $3.33 |
| 29 |
530024558 |
Choke Shutter Price: $2.99 |
| 30 |
530015254 |
Washer - Wave Price: $1.99 |
| 31 |
530015404 |
Screw - 10 - 24x2-1/8" - Fil. Hd. - Carb. Shoulder Price: $2.99 |
| 32 |
530015241 |
Screw - 6 - 19x5/16" -Pan Hd. - I. - Reed Valve Price: $1.99 |
| 33 |
530023367 |
Washer - Reed Valve Screw Price: Call Us |
| 34 |
530024438 |
Reed Valve Price: Call Us |
| 35 |
530019108 |
Gasket - Carburetor to Crankcase Price: $2.99 |
| 36 |
530024409 |
Carburetor Housing Price: $9.99 |
| 37 |
530019115 |
Gasket - Carburetor Price: $3.33 |
| 38 |
530069238 |
Line Kit Price: $3.33 |
| 39 |
530035183 |
Carburetor - (See Ser. Ref. 2, for Models XR-50,XR-70 Type 1 only) Price: $65.89 |
| 40 |
530015379 |
Screw - 10 - 24x1-7/8" - Fil. Hd. - Carburetor Price: $2.99 |
| 41 |
530015239 |
Screw - 1/4 - 20x3/4" - Hex Socket Hd. Cylinder Price: $1.99 |
| 42 |
530012070 |
Cylinder Price: $3.33 |
| 44 |
530036409 |
Muffler Spring This part replaces 530024903. Price: $1.99 |
| 45 |
530022198 |
Type 1, 2 & 3 Price: $3.33 |
| 45 |
530069240 |
Type 4 Price: Call Us |
| 46 |
530032057 |
Type 1, 2 & 3 Price: $3.28 |
| 46 |
530032092 |
Type 4 Price: $6.99 |
| 47 |
530010844 |
Type 4 Price: $3.33 |
| 47 |
530010858 |
Type 3 Price: $99.99 |
| 47 |
530026675 |
Type 1 & 2 Price: $99.99 |
| 51 |
530024932 |
Spring - Muffler Guard Price: $3.33 |
| 52 |
530024855 |
Guard - Muffler Price: $5.99 |
