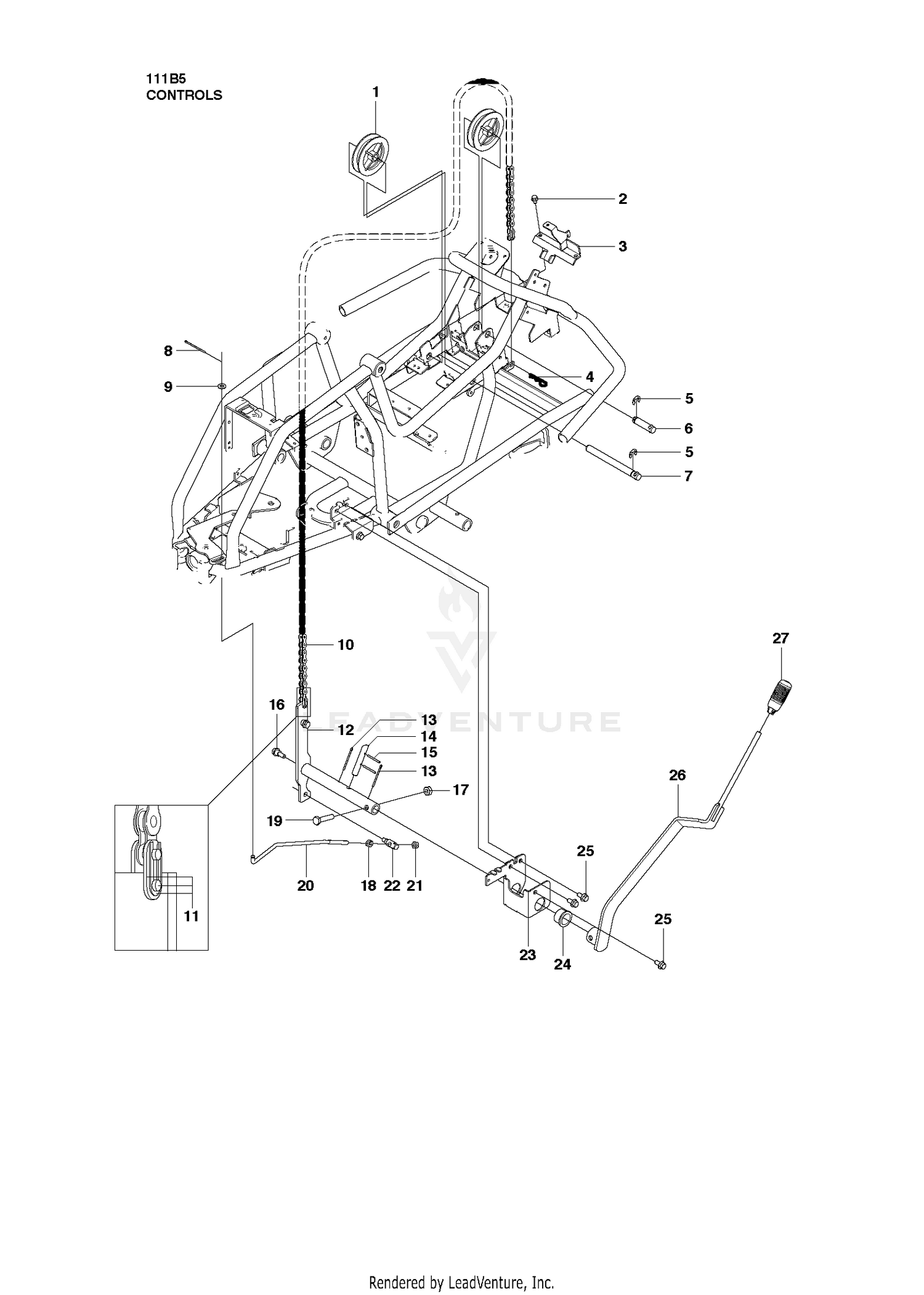

CONTROLS 2
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 130-8248 | VAVLE STEM KIT Price: $42.89 |
| 1 | 506905601 | PULLEY Price: $14.99 |
| 2 | 127-1194 | BALL-VALVE, 3WAY Price: $67.79 |
| 2 | 725236461 | SCREW Price: $2.99 |
| 3 | 130-7317 | ENDCAP KIT Price: $34.45 |
| 3 | 574315801 | BRACKET Price: $7.99 |
| 4 | 127-1196 | WASHER-STEM, VALVE Price: $2.99 |
| 4 | 721680251 | R-CLIP Price: $4.99 |
| 5 | 127-1195 | SEAT-STEM, VALVE Price: $2.82 |
| 5 | 735311820 | Lock Ring Price: $1.99 |
| 6 | 127-1190 | FORK-STEM, VALVE Price: $2.66 |
| 6 | 525404501 | SHAFT Price: $4.99 |
| 7 | 525404401 | SHAFT Price: $8.99 |
| 8 | 721618301 | Split Pin Price: $1.99 |
| 9 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 10 | 506554611 | CHAIN Price: $24.99 |
| 11 | 506554701 | LINK Price: $4.99 |
| 12 | 522560201 | NEEDS DESCRIPTION Price: Call Us |
| 13 | 721618701 | COTTER PIN Price: $3.99 |
| 14 | 525406601 | PIN This part replaces 506905301. Price: $7.99 |
| 15 | 721125930 | PIN Price: $2.99 |
| 16 | 506597401 | BOLT Price: $5.99 |
| 17 | 732212001 | NUT This part replaces 732212051. Price: $3.99 |
| 18 | 731231801 | NUT Price: $3.99 |
| 19 | 725250071 | SCREW This part replaces 725250051. Price: $2.99 |
| 20 | 522560101 | ROD Price: $8.99 |
| 21 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 22 | 525491301 | JOINT Price: $6.99 |
| 23 | 525404701 | BRACKET ASSY Price: $22.99 |
| 25 | 506570103 | BOLT Price: $3.99 |
| 26 | 522508301 | NEEDS DESCRIPTION Price: Call Us |
| 27 | 588164101 | Handles This part replaces 506542001. Price: $11.99 |
