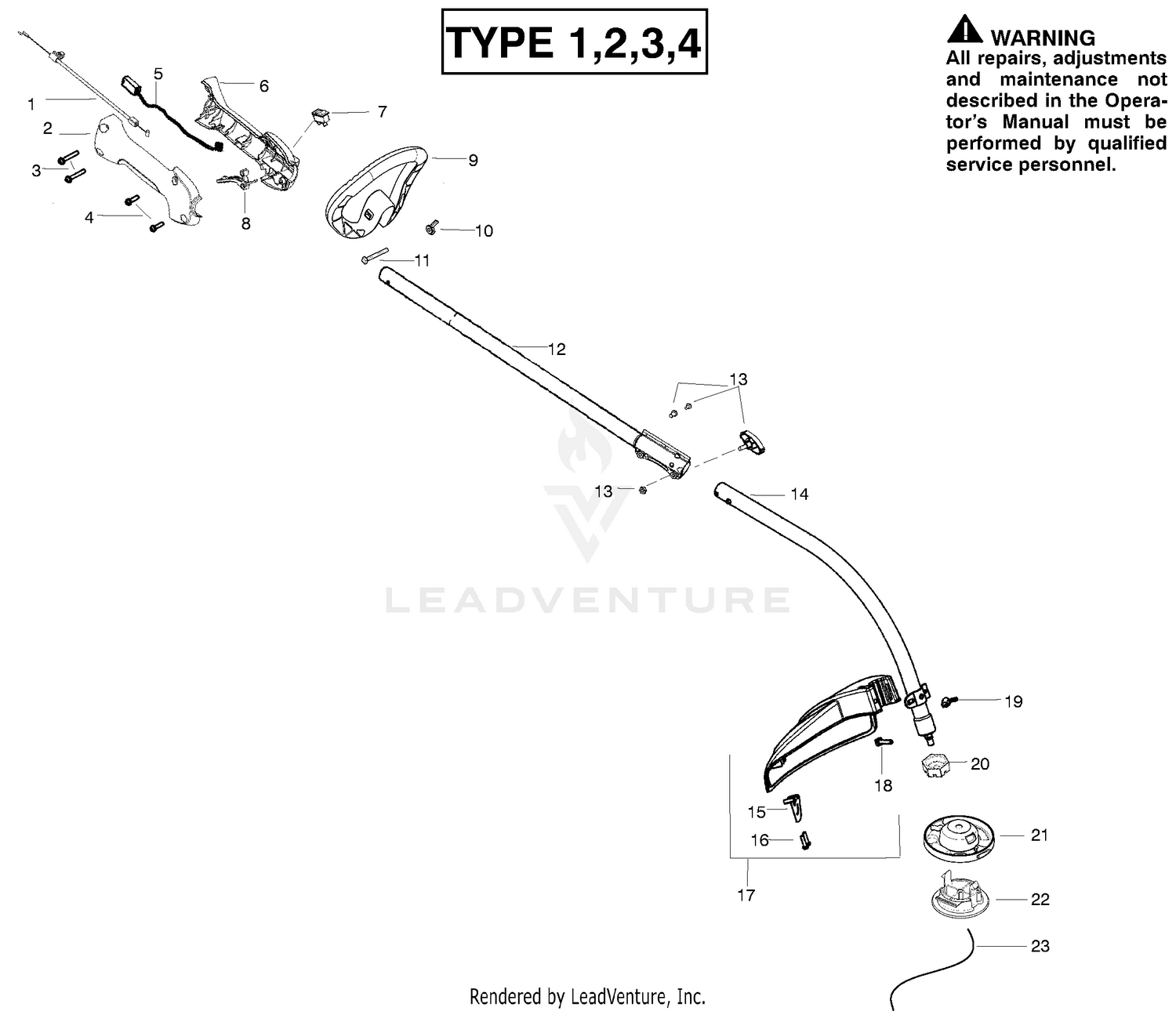

| Ref | Part Number | Description |
|---|
| 1 |
530059759 |
ASSY THROTTLE CABLE Price: $9.99 |
| 1 |
93-7836 |
DECAL-PEDAL, TRACTION This part replaces 27-7320. Price: $14.38 |
| 2 |
21-2660-01 |
PLATE-SIDE This part replaces 21-2660. Price: $299.86 |
| 2 |
530057541 |
HOUSING THROTTLE FAN Price: $7.99 |
| 3 |
530016406 |
SCREW #10 PLASTITE 1.362 Price: $1.99 |
| 3 |
66-6390 |
DECAL-CAUTION This part replaces 27-7270. Price: $27.63 |
| 4 |
28-1580 |
INST PANEL This part replaces 26-6760. Price: $130.00 |
| 4 |
530015814 |
SCREW Price: $1.99 |
| 5 |
119-2865 |
KIT-GM300 BUZZER, LOW OIL PRESSURE This part replaces 22-7820. Price: $135.43 |
| 5 |
530054183 |
WIRE ASSY Price: $4.99 |
| 6 |
22-7810 |
SPACER Price: $16.90 |
| 6 |
530059760 |
HSG THROTTLE LH Price: $6.99 |
| 7 |
32128-17 |
NUT-LOCK, FLANGE Price: $0.25 |
| 7 |
545030601 |
Kit-Switch (momentary) Price: $4.99 |
| 8 |
28-1590 |
THROTTLE CONTROL This part replaces 21-2200. Price: $35.36 |
| 8 |
530049107 |
TRIGGER RED This part replaces 545077601. Price: $1.99 |
| 9 |
21-9970 |
DISCONTINUED X-REF Price: Call Us |
| 9 |
530058583 |
Assy-Handle This part replaces 530057546. Price: $4.99 |
| 10 |
28-1600 |
CHOKE CONTROL This part replaces 21-2210. Price: $42.26 |
| 10 |
530091373 |
Nut This part replaces 530016152. Price: $1.99 |
| 11 |
233-35 |
KNOB Price: $8.06 |
| 11 |
530015786 |
BOLT 1/4-20 X 2 SQUARE Price: $1.99 |
| 12 |
3290-134 |
SCREW Price: $0.27 |
| 13 |
38-4550-03 |
COVER-INSTRUMENTS This part replaces 24-5670. Price: $448.71 |
| 13 |
545213801 |
ASSY COUPLER BLACK This part replaces 575291801. Price: $8.99 |
| 14 |
27-7290 |
DECAL-PTO Price: $17.38 |
| 14 |
576028301 |
KIT LOWER SHAFT CURVED Price: $37.99 |
| 15 |
32103-2 |
NUT-WING Price: $0.68 |
| 15 |
530052286 |
LINE CUTTER Price: $1.54 |
| 16 |
530015814 |
SCREW Price: $1.99 |
| 16 |
92-7802 |
DECAL-INSTR., START This part replaces 27-7280. Price: $22.12 |
| 17 |
92-7800 |
BATTERY COVER ASM This part replaces 24-9740. Price: $65.49 |
| 18 |
120-2244 |
HOURMETER This part replaces 12-9990. Price: $48.06 |
| 18 |
530015820 |
BOLT, TYPE 2 Price: $1.99 |
| 19 |
27-2360 |
SWITCH Price: $46.56 |
| 19 |
530091373 |
Nut This part replaces 530016152. Price: $1.99 |
| 20 |
545017404 |
DUST CUP Price: $1.99 |
| 20 |
62-7770 |
KEY-IGNITION This part replaces 218-412. Price: $4.39 |
| 21 |
38-1670 |
MTNG BRKT W/38-1660 This part replaces 26-4390. Price: $16.06 |
| 21 |
545202402 |
HEAD CUTTING FIX LINE Price: $7.99 |
| 22 |
545202501 |
CAP FIXED LINE 6 Price: $3.99 |
| 22 |
83-0820 |
GAUGE - AMMETER This part replaces 18-2190. Price: $76.09 |
| 23 |
3254-9 |
WASHER-LOCK, INTERNAL Price: $0.25 |
| 23 |
581681001 |
ACCY WE.095 X 16.5" LINE 12PCS Price: $4.79 |
| 24 |
3217-29 |
NUT-HEX Price: $0.25 |
| 25 |
70-2030 |
INST PANEL DECAL This part replaces 26-6730. Price: $18.52 |
| 26 |
26-6740 |
TEMP RESET RELAY Price: $165.84 |
| 27 |
3253-17 |
WASHER-LOCK Price: $0.25 |
| 28 |
3219-14 |
NUT-HEX Price: $0.25 |
| 29 |
322-3 |
SCREW-HH Price: $0.79 |
| 30 |
21-2370 |
DISCONTINUED Price: Call Us |
| 31 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 32 |
106-5190 |
BATTERY This part replaces 13-6480. Price: $170.85 |
| 33 |
24-6420-03 |
HOLDDOWN-BATTERY This part replaces 24-6420. Price: $55.90 |
| 34 |
239-19 |
PUSH-ON BATTERY CAP Price: $4.41 |
| 35 |
27-7310 |
DECAL-REFUELING Price: $27.52 |
| 36 |
3217-7 |
NUT-HEX Price: $0.28 |
| 37 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 38 |
2412-4 |
CLAMP-R Price: $4.22 |
| 39 |
323-6 |
SCREW-HH Price: $0.66 |
| 40 |
67-1710 |
DECAL-WARNING This part replaces 28-3290. Price: $7.83 |
| 41 |
18-7040 |
DISCONTINUED Price: Call Us |
| 42 |
3229-10 |
SCREW-CARR Price: $0.22 |
| 43 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 44 |
3217-5 |
NUT-HEX Price: $0.25 |
| 45 |
28-0730 |
DISCONTINUED Price: Call Us |
| 46 |
93-3183 |
TOOL BOX ASM This part replaces 28-1610. Price: $240.67 |
| 47 |
2412-61 |
TINNERMAN CLIP Price: $4.93 |
| 48 |
3217-6 |
NUT-HEX Price: $1.19 |
| 49 |
24-6390 |
STUD-HOLDDOWN, BATTERY Price: $19.83 |
| 50 |
26-6750 |
ENG TEMP SWITCH GAGE Price: $332.79 |
| 51 |
3290-360 |
SCREW-HH Price: $4.34 |
| 52 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 53 |
21-2770 |
PAD-FLOOR PLATE, RH Price: $96.81 |
| 54 |
21-2760 |
PAD-PLATE FLOOR, LH Price: $96.42 |
| 115499727 |
Price: |
Call Us 115499727 |
| 545209101 |
Decal-Shaft |
Warning (lower) Price: $2.99 545209101 |
