Home / OPE / Briggs & Stratton - Power Products / United States / Walk-Behind Snowthrowers / 30" Auger Path / C950-52948-0 - 1695737, Craftsman Dual Stage 30" Snow Thrower (2009) / Wheels and Tires Group

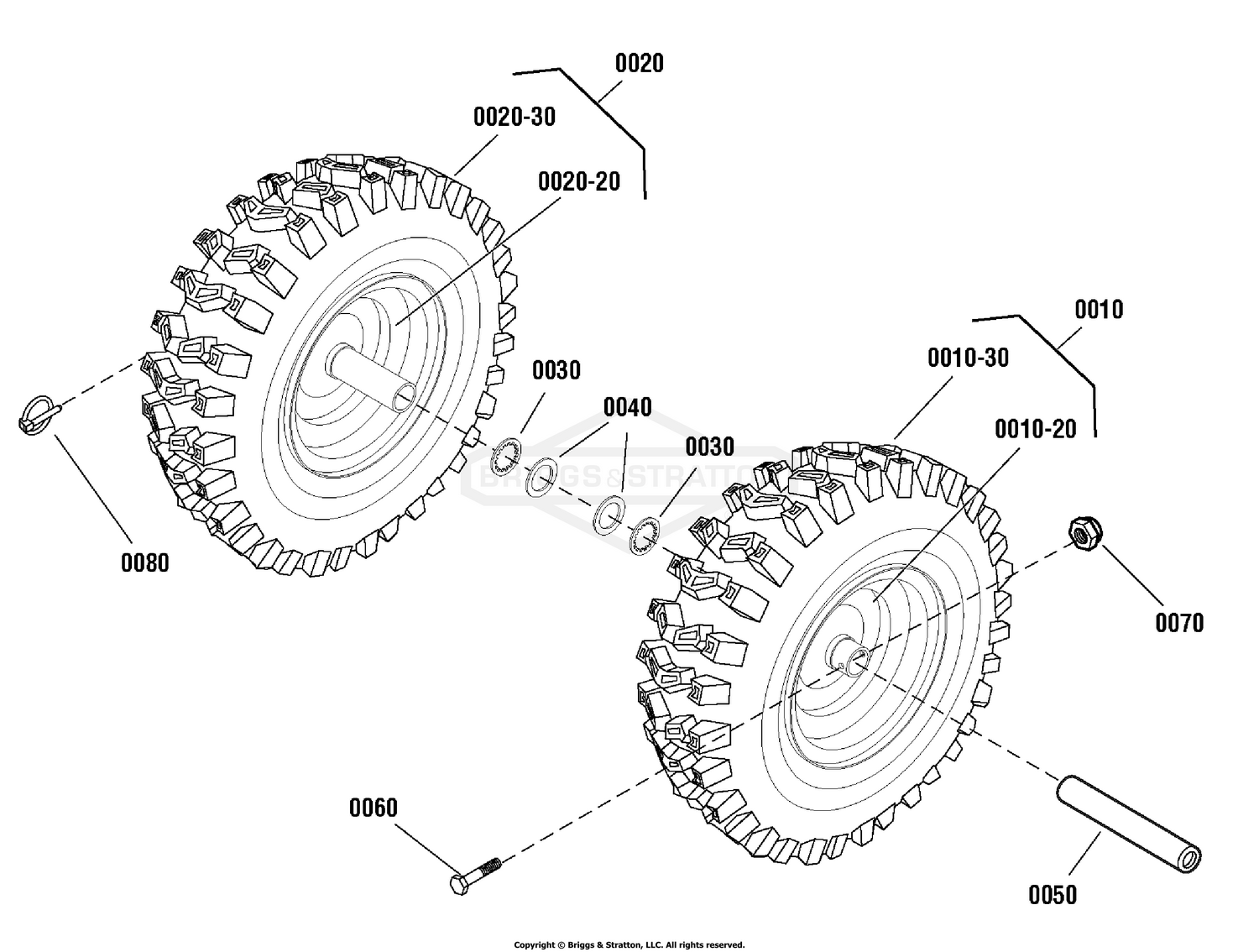

Wheels and Tires Group

Wheels and Tires Group

Parts (4)

RefPart NumberDescription
0030 1657528SM RING, Retaining Price: $3.73
0040 712120MA WASHER Price: $4.64
0050 1501138MA BUSHING, Wheel, 5-1/2, 16 Tire Price: Call Us
0070 703232 NUT, 1/4-20, NYLOCK This part replaces 15X145MA. Price: $3.94
