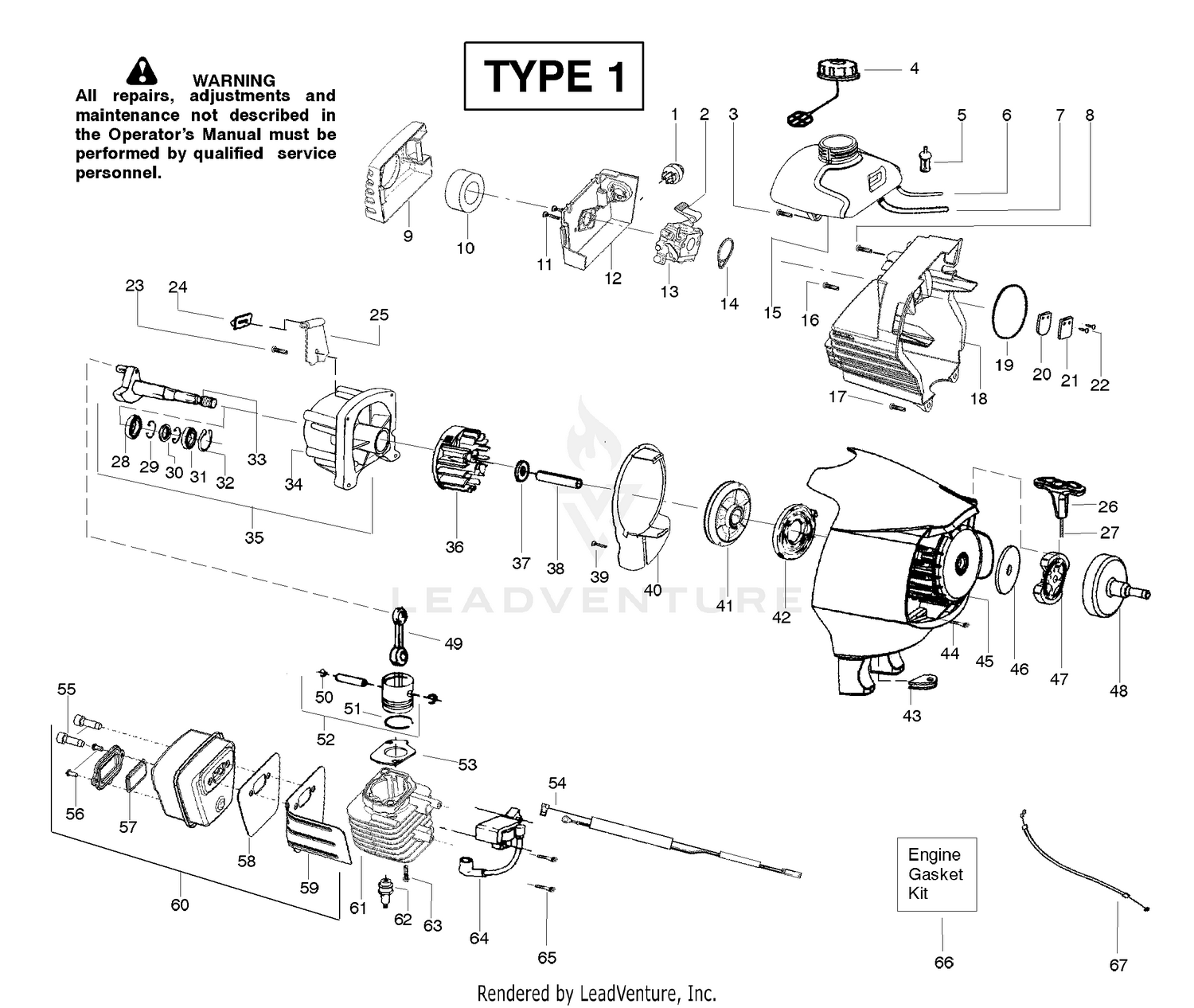

Engine Assembly Type 1

Engine Assembly Type 1

Parts (85)

RefPart NumberDescription
1 24-6900 DISCONTINUED Price: Call Us
1 530047721 Bulb-Purge Price: $3.99
2 32121-34 PIN-ROLL Price: $1.31
2 530071717 Kit-Choke Lever Price: $7.99
3 3218-5 NUT-JAM Price: $0.27
3 530015843 Screw-tank Price: $1.99
4 32102-14 DISCONTINUED Price: Call Us
4 530057973 Assy - Fuel Cap w/retainer This part replaces 530049386. Price: $7.99
5 26-2320 DISCONTINUED Price: Call Us
5 530095646 Assy-Fuel pickup Price: $2.99
6 256-126 BUSHING Price: $9.36
6 530069247 Kit-Fuel Line This part replaces 530071404. Price: $3.99
7 32146-13 NUT-HEX Price: $3.49
7 530069216 Kit-Fuel/Purge line Price: $3.99
8 12-0360 BALL PIVOT *R Price: $534.56
8 530015775 Screw Price: $1.99
9 325-7 SCREW-HH Price: $1.53
9 545000501 Cover-Air box Price: $3.99
10 302-33 FITTING-GREASE Price: $2.31
10 545082301 Filter-Air Price: $2.99
11 3253-8 WASHER-LOCK Price: $0.47
11 530015849 Screw-Carb. Price: $1.99
12 327-4 SCREW-HH Price: $2.20
12 545000601 Box-Air Price: $4.99
13 3219-6 NUT-HEX Price: $2.78
14 3-2968 DISCONTINUED Price: $2.39
15 3-3825 BALL SOCKET SHIM Price: $18.09
15 545075305 Assy-Fuel Tank This part replaces 545075304. Price: $11.99
16 3-2967 DISCONTINUED Price: $2.44
16 530015771 Screw-Crankcase Price: $1.99
17 3214-13 DISCONTINUED Price: Call Us
17 530015952 Screw-Shroud Price: $1.99
18 23-5300 DISCONTINUED Price: Call Us
18 545000701 Assy-Rear Shroud Price: $17.99
19 32136-3 NUT-SHH Price: $1.22
20 3272-7 PIN-COTTER Price: $0.25
20 530027593 Valve-Reed Price: $1.99
21 5-2966 DISCONTINUED Price: Call Us
21 530029781 Stop-Reed Price: $1.99
22 110-6142-03 LH TIE ROD END ASM This part replaces 2116-3. Price: $148.18
22 545227101 SCREW 6-19X.437 This part replaces 530016064. Price: $1.99
23 110-6143-01 TIE ROD ASM This part replaces 3-3710. Price: $513.93
23 530015875 Screw-Retainer Price: $1.99
24 2412-7 CLAMP ASM Price: $23.32
24 530055492 Isolator-Tank Price: $1.99
25 110-6141-03 RH TIE ROD END ASM This part replaces 2116-4. Price: $148.18
25 530054941 Ret.-Tank Price: $1.99
26 20-9900 RH SPINDLE & ARM WA *R Price: $1,459.49
26 530054834 Handle-Starter Price: $1.99
27 1528 BEARING-NEEDLE This part replaces 252-52. Price: $50.99
27 545050409 Kit - Rope This part replaces 545050410. Price: $4.99
28 251-32 DISCONTINUED Price: Call Us
28 545081601 Bearing-Inner Price: $7.99
29 32136-2 NUT-SHH Price: $3.55
29 530015787 Retainer Price: $1.99
30 3272-17 PIN-COTTER Price: $1.79
30 530019158 Seal Price: $2.99
31 530032102 Bearing-Outer Price: $8.99
32 530015789 Ret.-Crankshaft Price: $2.99
33 530028807 Assy-Crankshaft Price: $19.99
36 530055524 Assy-Flywheel Price: $22.99
37 530016030 Washer Price: $1.99
38 530055620 Spacer Price: $4.99
39 530015775 Screw-Baffle Price: $1.99
40 545115201 Plate-Baffle This part replaces 530054939. Price: $2.99
41 545050408 Kit-Pulley Price: $14.99
42 545008014 KIT STARTER SPRING This part replaces 545054901. Price: $3.99
43 530019182 Grommet Price: $1.99
44 530016386 SCREW This part replaces 530015810. Price: $5.99
45 530059254 Assy-Fan Housing Price: $17.99
46 530094189 Washer-Clutch Price: $2.99
47 530055122 Assy-Clutch Price: $8.99
48 530150247 Assy-Drum/Adapter Price: $17.99
49 530010960 Assy-Conn. Rod Price: $14.99
50 530015162 Ret.-Piston pin Price: $1.99
51 530012594 Ring-Piston Price: $3.99
54 530058846 Assy-Leadwire Price: $4.99
55 530016387 Bolt-Muffler 1/4"-20 Price: $1.99
56 530015241 Screw Price: $1.99
57 545030502 Kit-Spark Arrestor Price: $5.99
59 545033201 Shield Price: $3.99
61 530012586 Cylinder Price: $17.99
63 530001624 Bolt-Cyl. 1/4"-20 Price: $1.99
64 545081826 Kit - Ignition Module This part replaces 530039234. Price: $32.99
65 530016357 Screw-Module Price: $1.99
