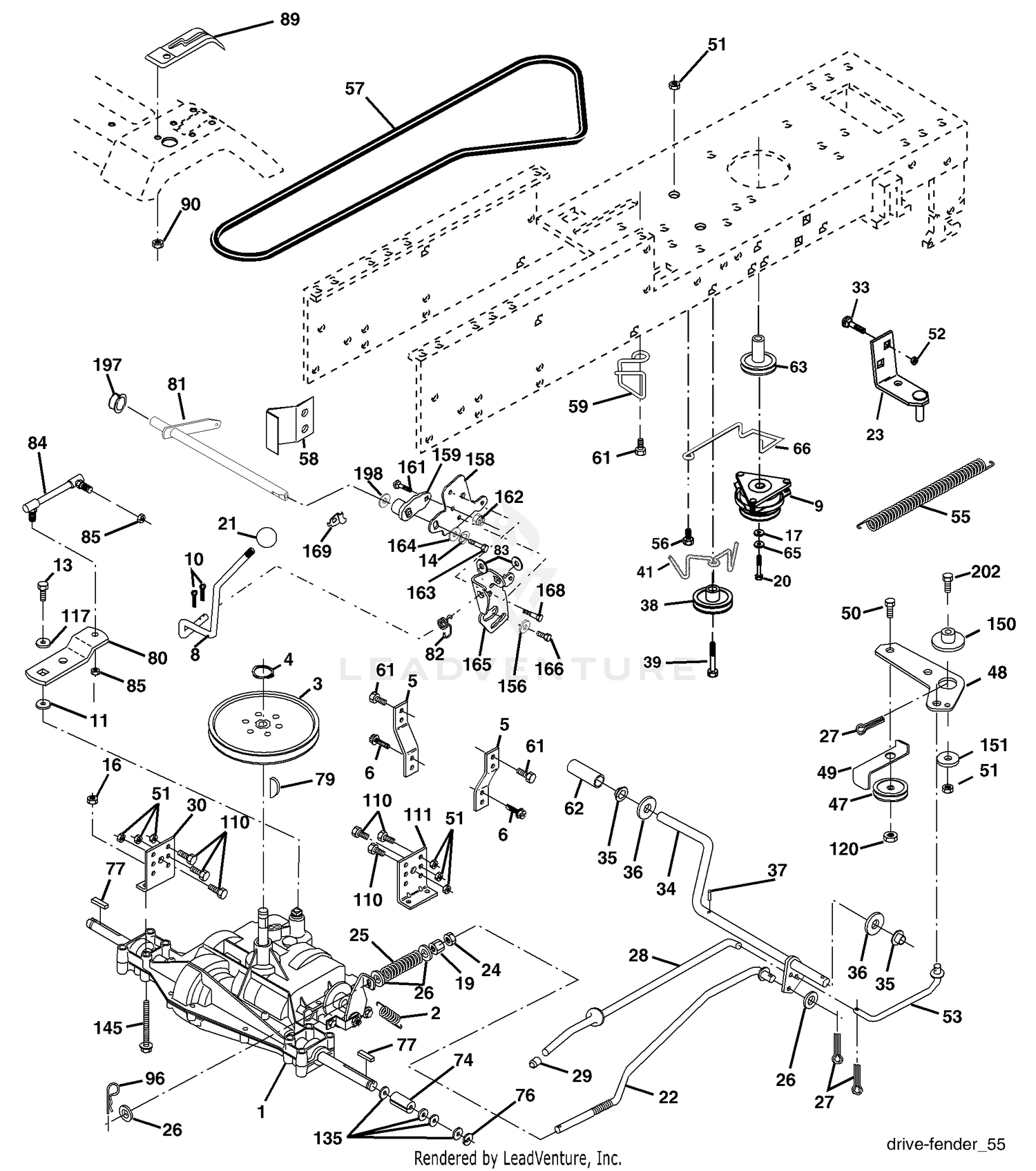

| Ref | Part Number | Description |
|---|
| 1 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 2 |
146682 |
Spring Brake Return Price: Call Us |
| 2 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 3 |
121327X |
Pulley Transaxle Price: Call Us |
| 3 |
353-781 |
FITTING-HYD, 90 Price: $24.44 |
| 4 |
12000004 |
Ring Retainer Price: Call Us |
| 4 |
32128-20 |
NUT-HF Price: $0.99 |
| 5 |
123787X |
Strap Torque Price: Call Us |
| 5 |
321-4 |
SCREW-HH Price: $0.99 |
| 6 |
17060512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 6 |
98-7612 |
FILTER-FUEL Price: $10.48 |
| 7 |
32128-33 |
NUT-HF Price: $0.25 |
| 8 |
166020 |
Rod Shift Fender Adjust Yt Price: Call Us |
| 8 |
353-783 |
FITTING-STR Price: $29.05 |
| 9 |
179334 |
Clutch Ogura Price: Call Us |
| 9 |
98-9305 |
WATER / FUEL FILTER ASM Price: $116.51 |
| 10 |
76020416 |
Pin, Cotter 1/8 x 1 Price: Call Us |
| 11 |
104-5215 |
PUMP-FUEL, ELECTRIC Price: $264.12 |
| 11 |
105701X |
Washer Plate Price: Call Us |
| 12 |
66-8800 |
RELAY Price: $87.56 |
| 13 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 13 |
74550412 |
Bolt 1/4-28 Price: Call Us |
| 14 |
10040400 |
Washer Lock Hvy Helical Price: Call Us |
| 14 |
110-3259 |
HOSE-FUEL This part replaces 99-9681. Price: $33.03 |
| 15 |
109-0274 |
HOSE-FUEL This part replaces 63-9640. Price: $12.99 |
| 16 |
115-0608-03 |
BRACKET-PUMP, FUEL This part replaces 105-2561-03. Price: $57.99 |
| 16 |
73800500 |
Nut Lock Hx w/Ins. 5/16-18 Unc Price: Call Us |
| 17 |
126197X |
Washer 1-1/2 x 15/32 x .250 Price: Call Us |
| 18 |
2412-147 |
CLAMP-R Price: $2.51 |
| 19 |
73800600 |
Nut, Lock Hex w/Ins. 3/8-16 Unc Price: Call Us |
| 20 |
173937 |
Bolt 7/16-20 x 4 Gr. 5-1.5 Price: Call Us |
| 21 |
140845 |
Knob Price: Call Us |
| 22 |
145340 |
Rod, Brake Price: Call Us |
| 23 |
178289 |
Bracket Anti Rotation Price: Call Us |
| 24 |
73350600 |
Nut, Hex Jam 3/8-16 Price: Call Us |
| 25 |
126909X |
Spring, Rod, Brake Price: Call Us |
| 26 |
19131016 |
Washer 13/32 x 5/8 x 16 Ga. Price: Call Us |
| 27 |
76020412 |
Pin, Cotter 1/8 x 3/4 Price: Call Us |
| 28 |
175765 |
Rod, Brake, Park Price: Call Us |
| 29 |
71673 |
Cap, Brake Parking Black Price: Call Us |
| 30 |
123780X |
Bracket, Transaxle, L.H. Price: Call Us |
| 33 |
72140608 |
Bolt 3/8-16 x 1 Price: Call Us |
| 34 |
175578 |
Shaft, Foot Pedal Price: Call Us |
| 35 |
120183X |
Bearing Nylon Price: Call Us |
| 36 |
19211616 |
Washer 21/32 x 1 x 16 Gauge Price: Call Us |
| 37 |
1572H |
Pin,Roll 3/16 x 1 Price: Call Us |
| 38 |
179114 |
Pulley Idler Composite Price: Call Us |
| 39 |
74760648 |
Bolt Rdhd 3/8-16 Unc x 3 Price: Call Us |
| 41 |
175556 |
Keeper, Idler Price: Call Us |
| 47 |
127783 |
Pulley, Idler Price: Call Us |
| 48 |
154407 |
Bellcrank Clutch Grnd Drv Stl Price: Call Us |
| 49 |
123205X |
Retainer, Belt Price: Call Us |
| 50 |
72110612 |
Bolt 3/8-16 x 1-1/2 Price: Call Us |
| 51 |
73680600 |
Nut, Crownlock 3/8-16 Price: Call Us |
| 52 |
145212 |
Nut Price: Call Us |
| 53 |
105710X |
Link, Clutch Price: Call Us |
| 55 |
105709X |
Spring, Return, Clutch Price: Call Us |
| 56 |
17060620 |
Screw 3/8-16 x 1-1/4 Price: Call Us |
| 57 |
163817 |
V-Belt, Drive Price: Call Us |
| 58 |
123792X |
Keeper, Belt, Transaxle, R.H. Price: Call Us |
| 59 |
169691 |
Keeper Belt Centerspan Price: Call Us |
| 61 |
17120614 |
Screw 3/8-16 x .875 Price: Call Us |
| 62 |
8883R |
Cover, Foot Pedal Price: Call Us |
| 63 |
174607 |
Pulley, Engine Price: Call Us |
| 65 |
10040700 |
Washer, Lock Hvy Hlcl Spr 7/16 Price: Call Us |
| 66 |
154778 |
Keeper Belt Engine F-proof Price: Call Us |
| 74 |
108097X |
Spacer Split 1.032 x .750 Price: Call Us |
| 76 |
12000053 |
E-Ring Price: Call Us |
| 77 |
9396E |
Key Square 1/4 x 2 Price: Call Us |
| 79 |
2228M |
Key Woodruff #9 3/16 x 3/4 Price: Call Us |
| 80 |
123794X |
Arm Shift Price: Call Us |
| 81 |
165598 |
Shaft Asm Cross Tapered Price: Call Us |
| 82 |
165711 |
Spring, Torsion Price: Call Us |
| 83 |
19171216 |
Washer 17/32 x 3/4 x 16 Gauge Price: Call Us |
| 84 |
166230 |
Link Transaxle Price: Call Us |
| 85 |
150360 |
Nut Lock Center 1/4-28 Price: Call Us |
| 89 |
185929X428 |
Console Price: Call Us |
| 90 |
142432 |
Screw Hex Wsh Hi-Lo 1/4-1/2 Unc Price: Call Us |
| 96 |
4497H |
Retainer Spring 1" Zinc/cad. Price: Call Us |
| 110 |
74780612 |
Bolt Hex 3/8-16 x 3/4 Gr. 5 Price: Call Us |
| 111 |
123776X |
Bracket, Transaxle, R.H. Price: Call Us |
| 117 |
19091216 |
Washer 9/32 x 3/4 x 16 Price: Call Us |
| 120 |
73900600 |
Nut Lock Flg. 3/8-16 Unc Price: Call Us |
| 145 |
74490540 |
Bolt Hex Flghd 5/16-18 Gr. 5 Price: Call Us |
| 150 |
175456 |
Spacer Price: Call Us |
| 151 |
19133210 |
Washer 13/32 x 2 x 10 Ga. Price: Call Us |
| 156 |
166002 |
Washer Srrted 5/16ID x 1.125 Price: Call Us |
| 158 |
165589 |
Bracket Shift Mount Price: Call Us |
| 159 |
183900 |
Hub Shift Price: Call Us |
| 161 |
72140406 |
Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr 5 Price: Call Us |
| 162 |
73680400 |
Nut Crownlock 1/4-20 Unc Price: Call Us |
| 163 |
74780416 |
Bolt Hex Fin 1/4-20 Unc x 1 Gr 5 Price: Call Us |
| 164 |
19091010 |
Washer 5/8 x .281 x 10 Ga Price: Call Us |
| 165 |
165623 |
Bracket Pivot Lever Price: Call Us |
| 166 |
166880 |
Screw 5/16-18 x 5/8 Price: Call Us |
| 168 |
165492 |
Bolt Shoulder 5/16-18 x .561 Price: Call Us |
| 169 |
165580 |
Plate Fastening Lt Price: Call Us |
| 197 |
169613 |
Nyliner Snap-In 5/8" Id Price: Call Us |
