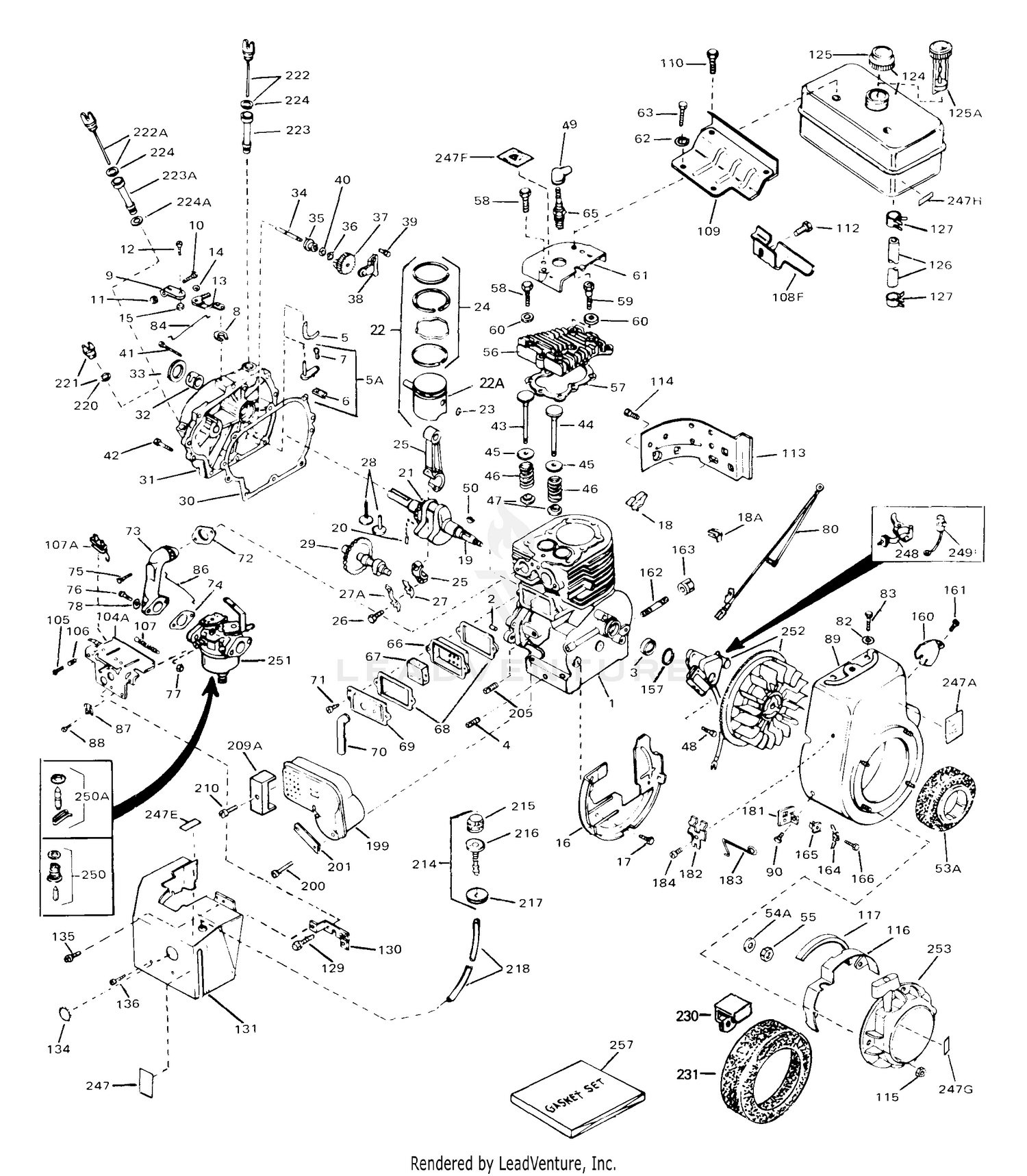

| Ref | Part Number | Description |
|---|
| 1 |
33867A |
CYLINDER Price: Call Us |
| 2 |
27652 |
PIN Price: $1.58 |
| 3 |
32630 |
OIL SEAL Price: $6.00 |
| 4 |
27642 |
PIPE PLUG Price: $1.26 |
| 5 |
30699C |
GOVERNOR ROD This part replaces 30699B. Price: $12.16 |
| 5A |
30699C |
GOVERNOR ROD Price: $12.16 |
| 6 |
30700 |
GOV YOKE Price: $1.22 |
| 7 |
650494 |
SCREW Price: $1.20 |
| 8 |
29642 |
RET RING Price: $1.26 |
| 9 |
29916 |
CLAMP Price: $1.26 |
| 10 |
29826 |
SCREW Price: $1.26 |
| 11 |
29216 |
NUT Price: $1.22 |
| 12 |
651018 |
SCREW This part replaces 650548. Price: $1.18 |
| 13 |
33454A |
GOV LEVER This part replaces 33454. Price: $7.41 |
| 14 |
29918 |
WASHER Price: $1.26 |
| 15 |
30322 |
NUT Price: $1.22 |
| 16 |
37861 |
BAFFLE This part replaces 29536. Price: $8.03 |
| 17 |
650561 |
SCREW Price: $1.25 |
| 18 |
27275 |
CLIP Price: $1.26 |
| 18A |
29443 |
CLIP Price: $1.26 |
| 19 |
33453A |
CRANKSHAFT Price: Call Us |
| 20 |
29783 |
GROOVE PIN Price: $1.26 |
| 21 |
33245 |
GEAR Price: $8.94 |
| 22 |
34540 |
PISTON ASSY STD Price: Call Us |
| 22 |
34541 |
PISTON ASSY 010 Price: Call Us |
| 22 |
34542 |
PISTON ASSY Price: Call Us |
| 22A |
33869B |
PISTON & PIN ST Price: Call Us |
| 22A |
33870B |
PISTON & PIN 10 Price: Call Us |
| 22A |
33871B |
PISTON & PIN Price: Call Us |
| 23 |
27888 |
RET RING Price: $1.26 |
| 24 |
33873 |
RING SET STD Price: $21.03 |
| 24 |
33874 |
RING SET 010 Price: $27.59 |
| 24 |
33875 |
RING SET Price: Call Us |
| 25 |
32591C |
CONN ROD--Discontinued Price: Call Us |
| 26 |
650662C |
SCREW This part replaces 650662B. Price: $2.60 |
| 27 |
34242 |
OIL DIPPER Price: Call Us |
| 27A |
32590 |
LOCK PLATE Price: Call Us |
| 28 |
34034A |
VALVE LIFTER This part replaces 34034. Price: $7.41 |
| 29 |
33366 |
CAMSHAFT Price: Call Us |
| 30 |
37342 |
GASKET This part replaces 33253. Price: $8.45 |
| 31 |
33367B |
CYL COVER This part replaces 33367A. Price: Call Us |
| 32 |
33368 |
BUSHING Price: $27.31 |
| 33 |
31950 |
OIL SEAL Price: $14.00 |
| 34 |
37587 |
GOV SHAFT This part replaces 31845. Price: $1.26 |
| 35 |
32324 |
GOV SPOOL Price: $20.53 |
| 36 |
29193 |
RET RING Price: $1.26 |
| 37 |
31947 |
GEAR Price: Call Us |
| 38 |
33369 |
BRACKET Price: $6.00 |
| 39 |
650965 |
SCREW This part replaces 650836. Price: $1.22 |
| 41 |
650488 |
SCREW Price: $1.25 |
| 42 |
650493 |
SCREW Price: $2.80 |
| 43 |
33242 |
INTAKE VALVE Price: Call Us |
| 43 |
33243 |
INTAKE VALVE Price: Call Us |
| 44 |
27878A |
EXH VALVE STD Price: $16.51 |
| 44 |
27880A |
EXH VALVE OS Price: $34.25 |
| 45 |
27882 |
VALVE CAP Price: $1.26 |
| 46 |
27881 |
VALVE SPRING Price: $2.62 |
| 47 |
32581 |
VALVE CAP Price: $4.49 |
| 48 |
650489 |
SCREW Price: Call Us |
| 49 |
610118 |
PLUG COVER This part replaces 27276. Price: $4.45 |
| 50 |
32589 |
KEY Price: $1.05 |
| 53A |
33662 |
CUP & SCREEN Price: $18.20 |
| 54A |
650815 |
WASHER Price: $1.25 |
| 55 |
8116 |
NUT Price: $1.23 |
| 56 |
34030B |
CYL HEAD This part replaces 34030. Price: Call Us |
| 57 |
34923A |
GASKET This part replaces 33270. Price: $5.63 |
| 58 |
6021A |
SCREW Price: $1.26 |
| 58 |
650692 |
SCREW--NLA Price: Call Us |
| 58 |
650711 |
SCREW Price: $1.25 |
| 58 |
650737 |
SCREW Price: $1.25 |
| 59 |
650727 |
SCREW Price: $2.60 |
| 60 |
650691 |
WASHER Price: $1.25 |
| 61 |
33272D |
COVER This part replaces 33272. Price: $5.21 |
| 62 |
26073 |
WASHER Price: Call Us |
| 62 |
650570 |
WASHER Price: $0.55 |
| 63 |
650273 |
SCREW This part replaces 650713. Price: $1.25 |
| 63 |
792028 |
Screw, Hex hd. Sems, 5/16-18 x 7/8 Price: Call Us |
| 65 |
33636 |
SPARK PLUG This part replaces 34251. Price: $5.05 |
| 66 |
28423 |
BREATHER Price: $9.29 |
| 67 |
28424 |
ELEMENT Price: $2.62 |
| 68 |
27896A |
GASKET This part replaces 27896. Price: $1.00 |
| 69 |
28425 |
VALVE COVER Price: $5.21 |
| 70 |
35350 |
TUBE This part replaces 27627. Price: $4.57 |
| 71 |
650128 |
SCREW Price: $3.60 |
| 72 |
27915A |
GASKET This part replaces 27915. Price: $3.95 |
| 73 |
33877 |
INTAKE PIPE Price: $34.95 |
| 74 |
33263 |
GASKET This part replaces 33861. Price: $1.00 |
| 75 |
650378 |
SCREW Price: $1.25 |
| 76 |
30088A |
SCREW Price: $1.26 |
| 77 |
29752 |
NUT Price: $1.26 |
| 80 |
30831 |
GROUND WIRE Price: $3.89 |
| 82 |
26073 |
WASHER Price: Call Us |
| 82 |
650570 |
WASHER Price: $0.55 |
| 83 |
650273 |
SCREW Price: $1.25 |
| 83 |
650788 |
SCREW Price: $1.25 |
| 83 |
792028 |
Screw, Hex hd., 5/16-18 x 7/8 Price: Call Us |
| 86 |
33878 |
GOV LINK Price: $4.95 |
| 89 |
33375E |
BLOWER HSG This part replaces 33375B. Price: $74.17 |
| 90 |
29747C |
SCREW/LOCKWASHER ASSEMBLY This part replaces 29747A. Price: $1.26 |
| 112 |
650561 |
SCREW Price: $1.25 |
| 113 |
33273A |
EXTENSION This part replaces 33273. Price: $5.21 |
| 114 |
650128 |
SCREW Price: $3.60 |
| 115 |
29752 |
NUT Price: $1.26 |
| 124 |
31301 |
FUEL TANK Price: Call Us |
| 125 |
33032 |
FUEL CAP This part replaces 410144B. Price: $5.31 |
| 125 |
34210 |
FUEL CAP Price: $5.77 |
| 126 |
29774 |
FUEL LINE Price: $2.78 |
| 126 |
30705 |
FUEL LINE Price: $11.47 |
| 126 |
30962 |
FUEL LINE Price: $22.04 |
| 127 |
26460 |
CLAMP Price: $1.19 |
| 157 |
33876 |
GASKET Price: $3.59 |
| 160 |
33013 |
COVER Price: $2.62 |
| 161 |
650760 |
SCREW Price: $1.17 |
| 164 |
33356 |
TERMINAL Price: $1.26 |
| 165 |
28545 |
GROMMET Price: $1.26 |
| 166 |
650760 |
SCREW This part replaces 650643. Price: $1.17 |
| 222A |
35941 |
DIPSTICK This part replaces 33463. Price: $3.89 |
| 224 |
29673 |
GASKET Price: $1.26 |
| 247 |
36261 |
DECAL This part replaces 34346. Price: Call Us |
| 247A |
550223 |
DECAL--Discontinued This part replaces 34316. Price: Call Us |
| 248 |
30547A |
BREAKER SET Price: $12.55 |
| 249 |
30548B |
CONDENSER Price: $8.40 |
| 250A |
631021B |
INLET NEEDLE KIT This part replaces 631021. Price: $4.82 |
| 251 |
631660A |
CARBURETOR KIT This part replaces 631783. Price: $106.70 |
| 252 |
610842 |
MAGNETO Price: Call Us |
| 253 |
590685B |
STARTER This part replaces 590479. Price: $48.62 |
