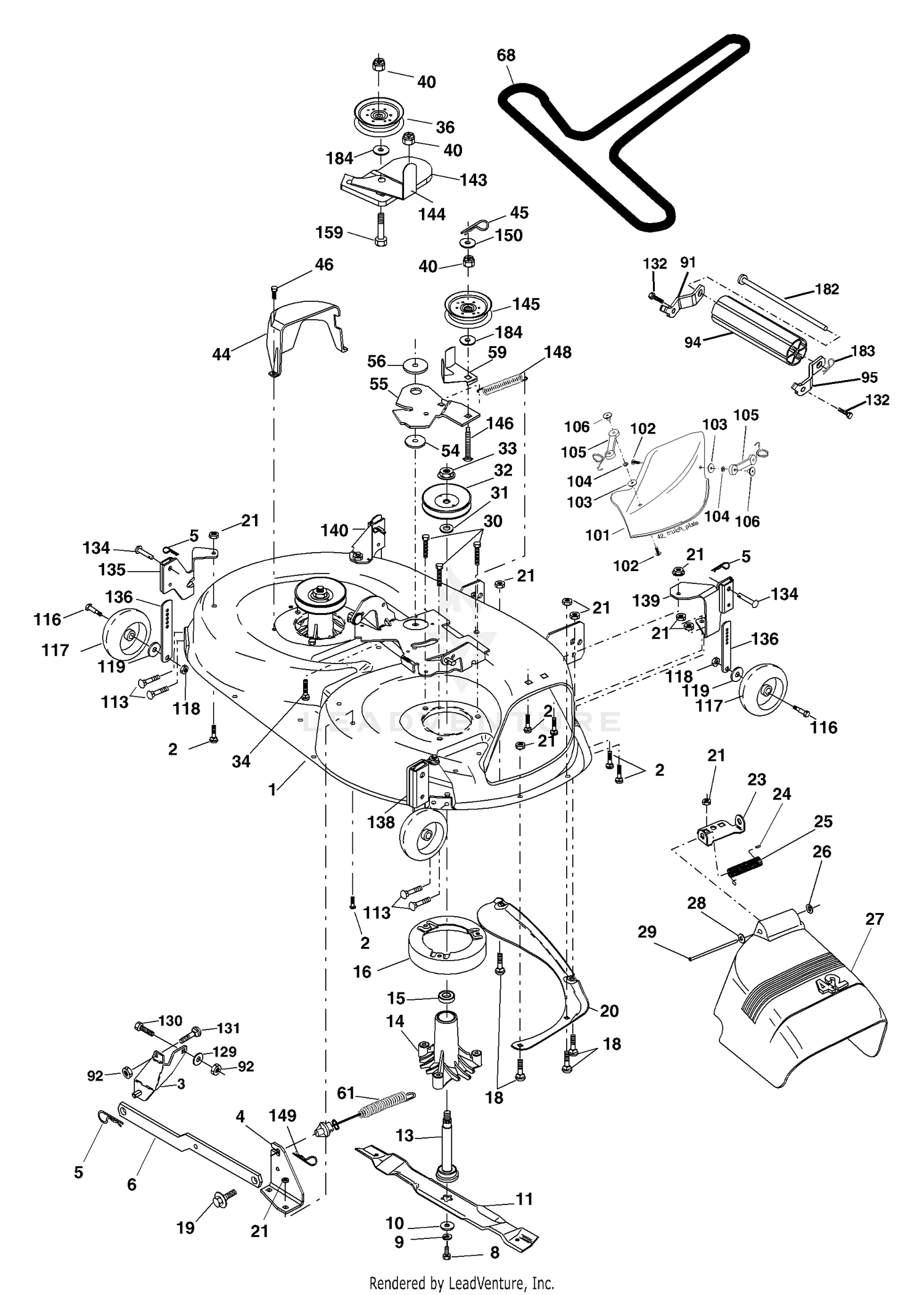

| Ref | Part Number | Description |
|---|
| 1 |
182032 |
Mower Housing Price: Call Us |
| 2 |
72140506 |
Bolt Price: Call Us |
| 3 |
138017 |
Bracket Assembly,Sway Bar, Fr. Price: Call Us |
| 4 |
165460 |
Bracket Sway Bar 38/42" Price: Call Us |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 6 |
178024 |
Bar Sway Deck Price: Call Us |
| 8 |
850857 |
Bolt, Hex 3/8-24 x 1.25 Gr. 8 Price: Call Us |
| 9 |
10030600 |
Washer, Lock Price: Call Us |
| 10 |
108-1402 |
GEAR CASE ASM Price: $859.88 |
| 10 |
140296 |
Washer, Hardened Price: Call Us |
| 14 |
128774 |
Housing, Mandrel, Vented Price: Call Us |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 16 |
174493 |
Stripper, Mower Deck Price: Call Us |
| 18 |
72140505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 19 |
132827 |
Bolt, Shoulder Price: Call Us |
| 20 |
127-0425 |
PLUG This part replaces 98-9598. Price: $4.34 |
| 20 |
159770 |
Baffle, Vortex Price: Call Us |
| 21 |
73680500 |
Nut, Crownlock 5/16-18 unc Price: Call Us |
| 23 |
177563 |
Bracket, Deflector Price: Call Us |
| 24 |
105304X |
Cap, Sleeve Price: Call Us |
| 25 |
123713X |
Spring, Torsion, Deflector Price: Call Us |
| 26 |
110452X |
Nut, Push Price: Call Us |
| 27 |
130968X428 |
Shield, Deflector Price: Call Us |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: Call Us |
| 29 |
131491 |
Rod, Hinge Price: Call Us |
| 30 |
173984 |
Screw Thdrol Rolling Wsh Hd Price: Call Us |
| 30 |
98-7487 |
PLUG Price: $3.18 |
| 31 |
187690 |
Washer, Spacer Price: Call Us |
| 32 |
173436 |
Pulley, Mandrel Price: Call Us |
| 33 |
178342 |
Nut, Toplock, Flanged Price: Call Us |
| 34 |
72110612 |
Bolt Carr Sh. 3/8-16 x 1-1/2 Gr. 5 Price: Call Us |
| 36 |
173438 |
Pulley, Idler, Flat Price: Call Us |
| 40 |
73900600 |
Nut, Lock Flg. 3/8-16 unc Price: Call Us |
| 44 |
140088 |
Guard, Mandrel, L.H. Price: Call Us |
| 45 |
4497H |
Retainer Price: Call Us |
| 46 |
137729 |
Screw, Thd. Roll 1/4-20 x 5/8 Price: Call Us |
| 50 |
98-9544 |
SPRING Price: $0.94 |
| 54 |
178515 |
Washer, Hardened Price: Call Us |
| 55 |
155046 |
Arm, Idler Price: Call Us |
| 56 |
122052X |
Spacer, Retainer Price: Call Us |
| 59 |
173442 |
Guard, Tuv Idler Price: Call Us |
| 60 |
98-9543 |
SEAT-VALVE Price: $26.61 |
| 61 |
174882 |
Spring Ext Elect Clutch Price: Call Us |
| 70 |
98-9380 |
BALL Price: $0.84 |
| 80 |
98-9540 |
OIL PUMP ROTOR ASM Price: $271.67 |
| 85 |
107-9069 |
COVER-PUMP, OIL Price: $27.77 |
| 90 |
107-9072 |
PIN-STRAIGHT Price: $0.28 |
| 91 |
180532 |
Bracket Roller Nose LH Price: Call Us |
| 92 |
73800600 |
Locknut, Hex W/Wsh 3/8-16 unc Price: Call Us |
| 94 |
132264 |
Roller Nose Price: Call Us |
| 95 |
180533 |
Bracket Roller Nose RH Price: Call Us |
| 100 |
107-9071 |
SCREW Price: $0.36 |
| 101 |
136420 |
Cover Mulching 42" Black Price: Call Us |
| 102 |
71081010 |
Screw Truss Hd Phil 10-24 x 5/8 Price: Call Us |
| 103 |
19061216 |
Washer #10 Price: Call Us |
| 104 |
10071000 |
Washer Lock Price: Call Us |
| 105 |
160793 |
Latch Asm Bagger Price: Call Us |
| 106 |
2029J |
Nut Weld Price: Call Us |
| 110 |
98-9633 |
GASKET-CASE, GEAR Price: $30.19 |
| 113 |
17060512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 116 |
4898H |
Bolt, Shoulder Price: Call Us |
| 117 |
165746 |
Wheel, Gauge Price: Call Us |
| 118 |
73930600 |
Nut, Crownlock 3/8-1 Price: Call Us |
| 119 |
19121414 |
Washer 13/32 x 7/8 x 14 Ga. Price: Call Us |
| 120 |
100-1765 |
BOLT This part replaces 98-7496. Price: $1.59 |
| 129 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 130 |
105-3797 |
BOLT Price: $1.40 |
| 130 |
74780616 |
Bolt, Fin Hex 3/8-16 unc x 1Gr. 5 Price: Call Us |
| 131 |
72140608 |
Bolt Rdhd Sqnk 3/8-16 unc x 1 Price: Call Us |
| 132 |
17000612 |
Screw Hexwsh Th Price: Call Us |
| 134 |
156941 |
Pin Head Rivet Price: Call Us |
| 135 |
159765 |
Bracket Asm. Wheel Gauge Rear LH Price: Call Us |
| 136 |
155986 |
Bar Adj. Gauge Wheel Price: Call Us |
| 138 |
159763 |
Bracket Asm. Wheel Gauge Rear RH Price: Call Us |
| 139 |
159767 |
Bracket Asm. Wheel Gauge Front RH Price: Call Us |
| 140 |
159768 |
Bracket Asm. Wheel Gauge Front LH Price: Call Us |
| 140 |
98-9356 |
BOLT Price: $2.06 |
| 143 |
157109 |
Bracket Arm Idler 42" Price: Call Us |
| 144 |
173441 |
Keeper Belt 42" Clutch Cable Price: Call Us |
| 145 |
173437 |
Pulley Idler Flat Price: Call Us |
| 146 |
173443 |
Bolt Carriage Idler Price: Call Us |
| 148 |
169022 |
Spring Return Idler Price: Call Us |
| 149 |
165898 |
Retainer Spring Yellow Zinc Price: Call Us |
| 150 |
107-9074 |
BOLT Price: $1.43 |
| 150 |
19091210 |
Washer 9/32 x 3/4 x 10 Ga. Price: Call Us |
| 159 |
72140614 |
Bolt Rdhd Sqn 3/8-16 unc x 1-3/4 Price: Call Us |
| 160 |
99-3510 |
BOLT This part replaces 98-9586. Price: $0.80 |
| 170 |
105-3709 |
STUD Price: $1.13 |
| 180 |
98-7572 |
NUT Price: $0.32 |
| 182 |
179126 |
Rod Roller Nose Price: Call Us |
| 183 |
163552 |
Retainer Spring Price: Call Us |
| 184 |
19131410 |
Washer 3/8 Price: Call Us |
| 190 |
98-7699 |
WASHER-SPRING Price: $0.44 |
| 200 |
119-8038 |
SEAL-OIL This part replaces 98-9482. Price: $40.16 |
| 230 |
105-3710 |
STUD Price: $1.16 |
| 240 |
99-3515 |
PLUG-GEARCASE This part replaces 98-9641. Price: $9.00 |
| 310 |
108-3841 |
FILTER-OIL Price: $10.81 |
| 320 |
104-5159 |
HOLDER ASM Price: $120.58 |
| 330 |
98-9727 |
COLLAR Price: $9.86 |
| 340 |
104-5155 |
SOLENOID-STOP Price: $244.96 |
| 350 |
105-3799 |
BOLT-HSH Price: $0.84 |
