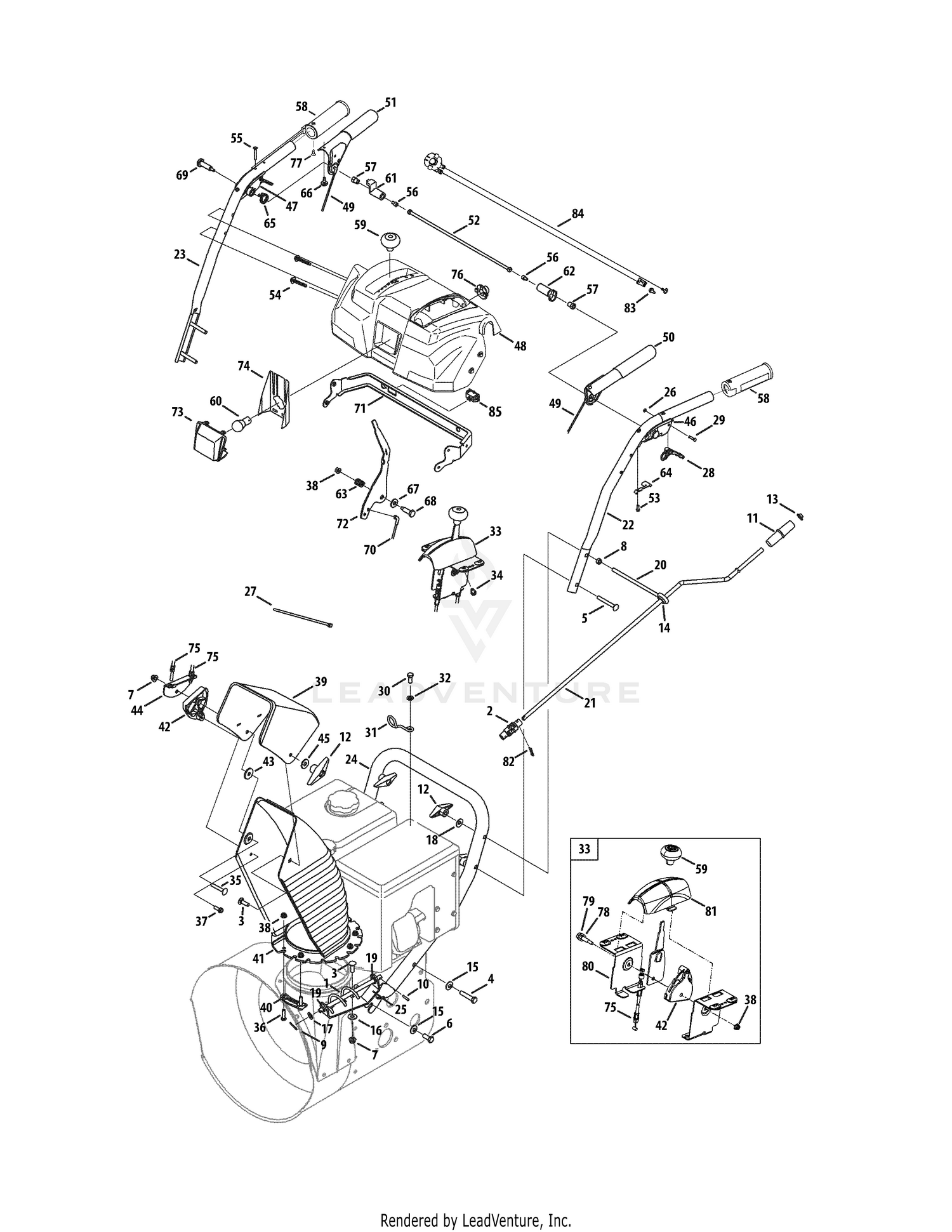

| Ref | Part Number | Description |
|---|
| 1 |
684-04308A |
Chute Crank Assembly Not Available Price: |
| 2 |
684-04350 |
Joint Block Assembly Price: $25.48 |
| 3 |
710-0276 |
Screw, Carriage, 5/16-18 x 1.0 Price: $3.68 |
| 4 |
710-04682 |
SCREW 3/8-16 x 2.00 GR5 Not Available Price: |
| 5 |
710-0572 |
Screw, Carriage, 5/16-18 x 2.5 Price: $3.75 |
| 6 |
710-3118 |
Screw, Hex, 3/8-16 x 1.0 Lock, Gr5 Price: $4.77 |
| 7 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 8 |
712-3010 |
HEX NUT 5/16-18 This part replaces 912-3010. Price: $3.89 |
| 9 |
714-04040 |
Pin, Bow-tie Cotter Price: $1.28 |
| 10 |
715-04095 |
Spring Pin Price: $4.39 |
| 11 |
720-0201A |
Knob, Crank Price: $9.62 |
| 12 |
720-0284 |
Knob This part replaces 920-0284. Price: $4.08 |
| 13 |
726-0100 |
Push Cap This part replaces 926-0100. Price: $3.75 |
| 14 |
735-0234 |
Grommet, Rubber Price: $4.51 |
| 15 |
736-0105 |
Washer, Bel, .375 x .87 x .063 Price: $3.96 |
| 16 |
736-0159 |
Washer This part replaces 936-0159. Price: $3.71 |
| 17 |
736-0185 |
Flat Washer, .375 x .738 x .063 This part replaces 936-0185. Price: $3.43 |
| 18 |
736-0242 |
Washer, Belleville, .34 x .872 x .06 Price: $3.75 |
| 19 |
941-0475 |
Plastic Bushing, .380 I.D. Price: $3.74 |
| 20 |
747-04747 |
Eye Bolt Price: $11.28 |
| 21 |
747-04925A-0637 |
Chute Rod Price: $33.99 |
| 22 |
749-04675-0637 |
Handle, Upper, LH This part replaces 749-04675-0638. Price: $45.04 |
| 23 |
749-04674-0637 |
Handle, Upper, RH This part replaces 749-04674-0638. Price: $45.04 |
| 24 |
749-0991-0638 |
LOWER HANDLE (MTD RED) Not Available Price: |
| 25 |
790-00329-0637 |
Chute Crank Bracket Not Available Price: |
| 26 |
716-04036 |
Ring, Retainer Price: $5.34 |
| 27 |
725-0157 |
Cable Tie Price: $3.46 |
| 28 |
731-06113 |
Trigger Price: $4.24 |
| 29 |
738-04126 |
Pin, 3/16 Price: $3.43 |
| 30 |
710-1681 |
Hex Head Screw, MB 1.25 Price: $5.22 |
| 31 |
732-04677 |
Cable Guide Price: $7.87 |
| 32 |
736-0264 |
Flat Washer.330 ID x.630 OD This part replaces 936-0264. Price: $5.99 |
| 34 |
710-04187A |
Hi-Lo Screw, 1/4-15 x 0.5 Price: $5.99 |
| 35 |
710-0458 |
CARRIAGE BOLT 5/16-18 x 1.75 Price: $3.72 |
| 36 |
710-0597 |
SCREW 1/4-20 X1.00 GR5 Price: $3.66 |
| 37 |
710-0895 |
Hi-Lo Screw, 1/4-15 x .75 Price: $5.82 |
| 38 |
712-04064 |
Flange Lock Nut, 1/4-20 Price: $3.64 |
| 39 |
731-0846C |
Upper Chute Price: $45.74 |
| 40 |
731-0851A |
Chute, Flange Keeper Price: $3.90 |
| 41 |
731-0903E |
Lower Chute Price: $37.79 |
| 42 |
731-1313C |
Chute Tilt Cable Guide Price: $10.46 |
| 43 |
736-0231 |
Flat Washer, .344 x 1.125 x.12 This part replaces 936-0231. Price: $4.02 |
| 44 |
784-5594-0637 |
Cable Bracket Price: $10.15 |
| 45 |
736-0159 |
Washer This part replaces 936-0159. Price: $3.71 |
| 46 |
631-04133A |
Handle Clutch Lock - LH Price: $13.42 |
| 47 |
631-04134B |
Handle Clutch Lock - RH Price: $13.42 |
| 48 |
931-04181A |
Handle Panel Price: $51.97 |
| 49 |
646-0012 |
Cable Assembly, Auger/Drive Price: $32.48 |
| 50 |
684-04105D |
HANDLE ASSEMBLY (LH) This part replaces 684-04105C. Price: $20.10 |
| 51 |
684-04106D |
HANDLE ASSEMBLY (RH) This part replaces 684-04106C. Price: $19.00 |
| 52 |
684-04250 |
Rod Ass’y, Clutch Lock Pivot Price: $11.00 |
| 53 |
710-04326 |
Screw, #8-16 x 0.50 Price: $3.37 |
| 54 |
710-04586 |
Screw, 1/4-20 x 1.625 Price: $6.07 |
| 55 |
710-1233 |
Screw, #10-24 x 0.375 Price: $3.95 |
| 56 |
710-3069 |
Screw, 1/4-20 x.375 Price: $4.08 |
| 57 |
712-04081A |
Shoulder Nut, 1/4-20 Price: $6.49 |
| 58 |
725P12285 |
HEATED GRIP This part replaces 925-06107. Price: $51.76 |
| 59 |
720-04039 |
Shift Knob Price: $9.09 |
| 60 |
925-1629 |
Lamp Price: $9.70 |
| 61 |
731-04894D |
Lock Plate Price: $4.61 |
| 62 |
731-04896C |
CLUTCH LOCK CAM This part replaces 731-04896B. Price: $3.56 |
| 63 |
732-0193 |
Compression Spring Price: $4.11 |
| 64 |
732-04219C |
Clutch Lock Spring Price: $3.70 |
| 65 |
732-04238B |
Torsion Spring Price: $4.66 |
| 66 |
735-0199A |
Rubber Bumper This part replaces 935-0199A. Price: $6.89 |
| 67 |
936-0267 |
Flat Washer, .385 x .87 x .06 Price: $3.90 |
| 68 |
738-04125 |
Shoulder Screw Price: $4.08 |
| 69 |
738-04348 |
Shoulder Screw, 1/4-20 x 1.345 Price: $3.14 |
| 70 |
746-04341 |
Speed Selector Cable Price: $22.82 |
| 71 |
790-00248E-0637 |
HANDLE SUPPORT BRACKET This part replaces 790-00248C. Price: $21.49 |
| 72 |
790-00281B-0637 |
Shift Lever This part replaces 790-00281B. Price: $16.11 |
| 73 |
731-05319 |
Lens Panel Price: $12.25 |
| 74 |
777X41805 |
Reflector Label Price: $8.16 |
| 75 |
946-04338 |
Chute Cable This part replaces 746-04338. Price: $49.99 |
| 76 |
925-1649A |
HEADLIGHT SOCKET (1/4 TURN) This part replaces 925-1649. Price: $10.30 |
| 77 |
710-0837 |
Screw, #10-16 x .625 Price: $3.85 |
| 78 |
736-0413 |
Washer, Spring, .39 x .625 x .012 Price: $6.01 |
| 79 |
738-04185 |
Screw, Shoulder, .31 x .995:1/4-20 Price: $7.45 |
| 80 |
790-00200A-0637 |
Bracket, Mounting Price: $16.61 |
| 81 |
731-05307 |
Cover, Tilt Cover Price: $9.69 |
| 82 |
714-0101 |
Int. Cotter Pin This part replaces 914-0101. Price: $4.13 |
| 84 |
725-05148 |
Wire Harness Price: $61.03 |
