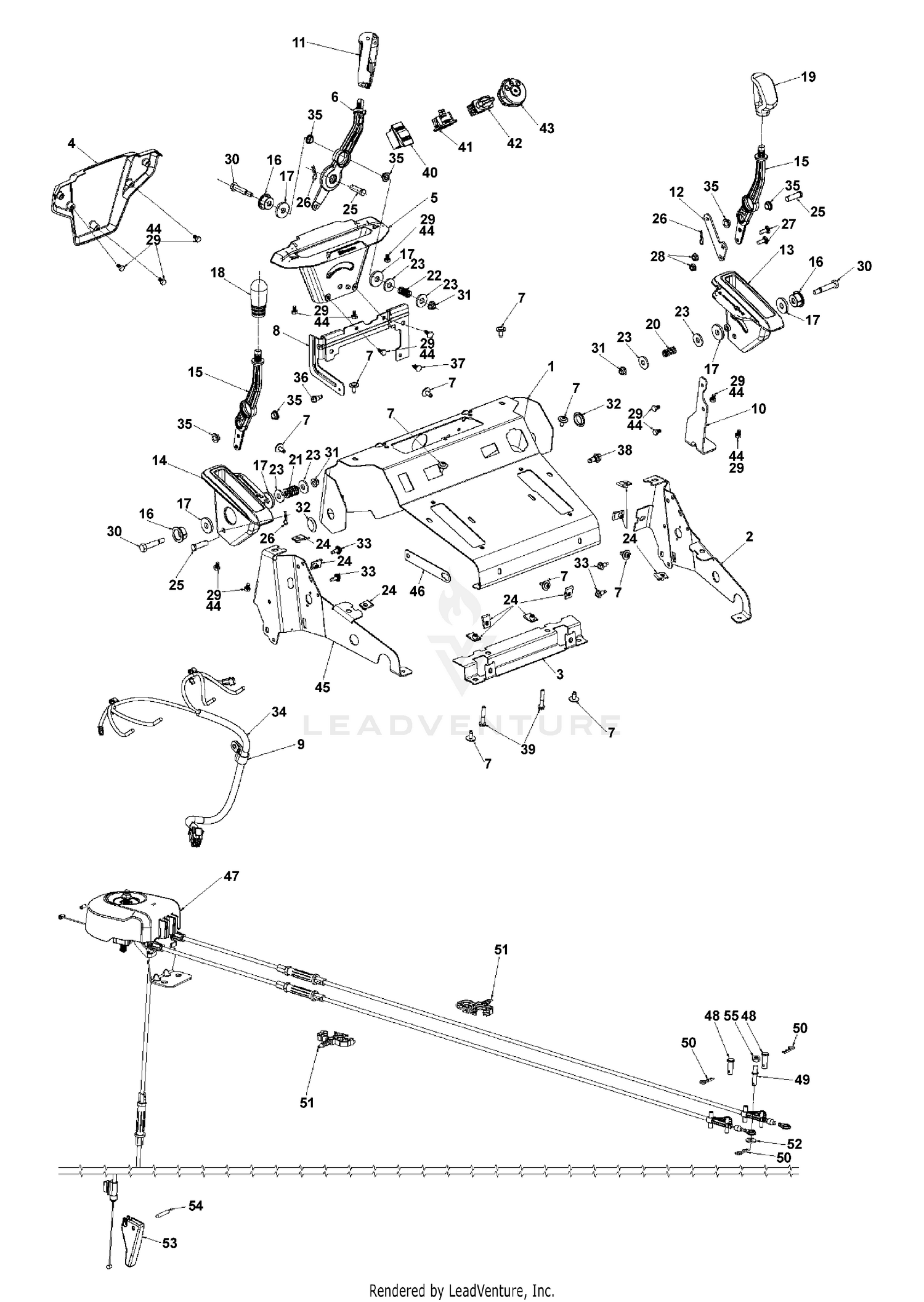

CONTROL PANEL & DISCHARGE CHUTE 2
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 589626402 | Consoles Price: $119.99 |
| 2 | 589626804 | Consoles Price: $27.99 |
| 3 | 589626902 | Brackets Price: $22.99 |
| 4 | 589754201 | Brackets Price: $27.99 |
| 5 | 589754301 | Brackets Price: $22.99 |
| 6 | 596924101 | LEVER CHUTE ROTATOR 400S CHUTE Price: $8.99 |
| 7 | 589772201 | Screws Price: $6.99 |
| 9 | 532197991 | CLIP.CABLE.BLK Price: $3.99 |
| 10 | 589796501 | Brackets Price: $7.99 |
| 11 | 589801101 | Knobs Price: $7.99 |
| 12 | 590774701 | Levers Price: $1.99 |
| 13 | 589754101 | Brackets Price: $19.99 |
| 14 | 589754001 | Brackets Price: $22.99 |
| 15 | 589754401 | Levers Price: $7.99 |
| 16 | 589796101 | Buttons Price: $1.99 |
| 17 | 589796201 | Pads Price: $1.99 |
| 18 | 589796301 | Knobs Price: $5.99 |
| 19 | 589796401 | Knobs Price: $7.99 |
| 21 | 596918401 | Springs Price: $6.99 |
| 22 | 593075101 | Springs Price: $1.99 |
| 23 | 597367401 | Washers Price: $1.99 |
| 24 | 532417693 | NUT.U-CHNL.1/4-20.550DP.350PNL Price: $3.99 |
| 25 | 590791701 | Pins Price: $1.99 |
| 26 | 583404901 | HAIRPIN.SOFT.ZINC.059X1.125 This part replaces 532423303. Price: $2.99 |
| 27 | 596238401 | BOLT CUP HEAD SQUARE NECK BOLT Price: $2.99 |
| 28 | 532191730 | NUT.HEX.FLANGE.1/4 Price: $3.99 |
| 29 | 597425501 | Nuts Price: $2.99 |
| 30 | 593092001 | Bolts Price: $3.99 |
| 31 | 594944401 | NUT HEXAGON FLANGE 5/16-18 ST Price: $5.99 |
| 32 | 593084201 | PLUG 7/8 Price: $2.99 |
| 35 | 590790601 | Bushings Price: $3.99 |
| 36 | 581726101 | BOLT SHOULDER_1/4-20_TRILOB Price: $2.99 |
| 37 | 532428124 | FASTENER.PUSH.O.250X0.783 Price: $1.99 |
| 38 | 532170165 | SHOULDER BOLT 5/16-18TT Price: $3.99 |
| 39 | 501406601 | SCREW.HEXCAP.1/4X-20X1.500 Price: $4.99 |
| 40 | 585805001 | SWITCH HEATED GRIP BLK Price: $14.99 |
| 41 | 596515501 | HOUR METER SNAPIN, RECTANGULAR Price: $37.99 |
| 42 | 591066501 | SWITCH 3 POSITION ROTARY Price: $27.99 |
| 43 | 594721801 | SWITCH IGNITION 3 POSITION 6-W Price: $19.99 |
| 44 | 597425701 | Washers Price: $1.99 |
| 45 | 589626803 | Consoles Price: $27.99 |
| 48 | 581329401 | PIN CLEVIS 5/16X.875 Price: $2.99 |
| 49 | 596717201 | Clevis Pins Price: $1.99 |
| 50 | 583404901 | HAIRPIN.SOFT.ZINC.059X1.125 This part replaces 532423303. Price: $2.99 |
| 51 | 584652201 | CLIP.CONDUIT.DOUBLE LOOP Price: $2.99 |
| 52 | 586682101 | WASHER FLAT_.250 X .625 X .06 Price: $2.99 |
| 53 | 589796001 | Levers Price: $3.99 |
| 54 | 532001572 | PIN.ROLL.3/16 X 1" This part replaces 532184205. Price: $3.99 |
| 55 | 582478602 | NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 595086601. Price: $1.99 |
