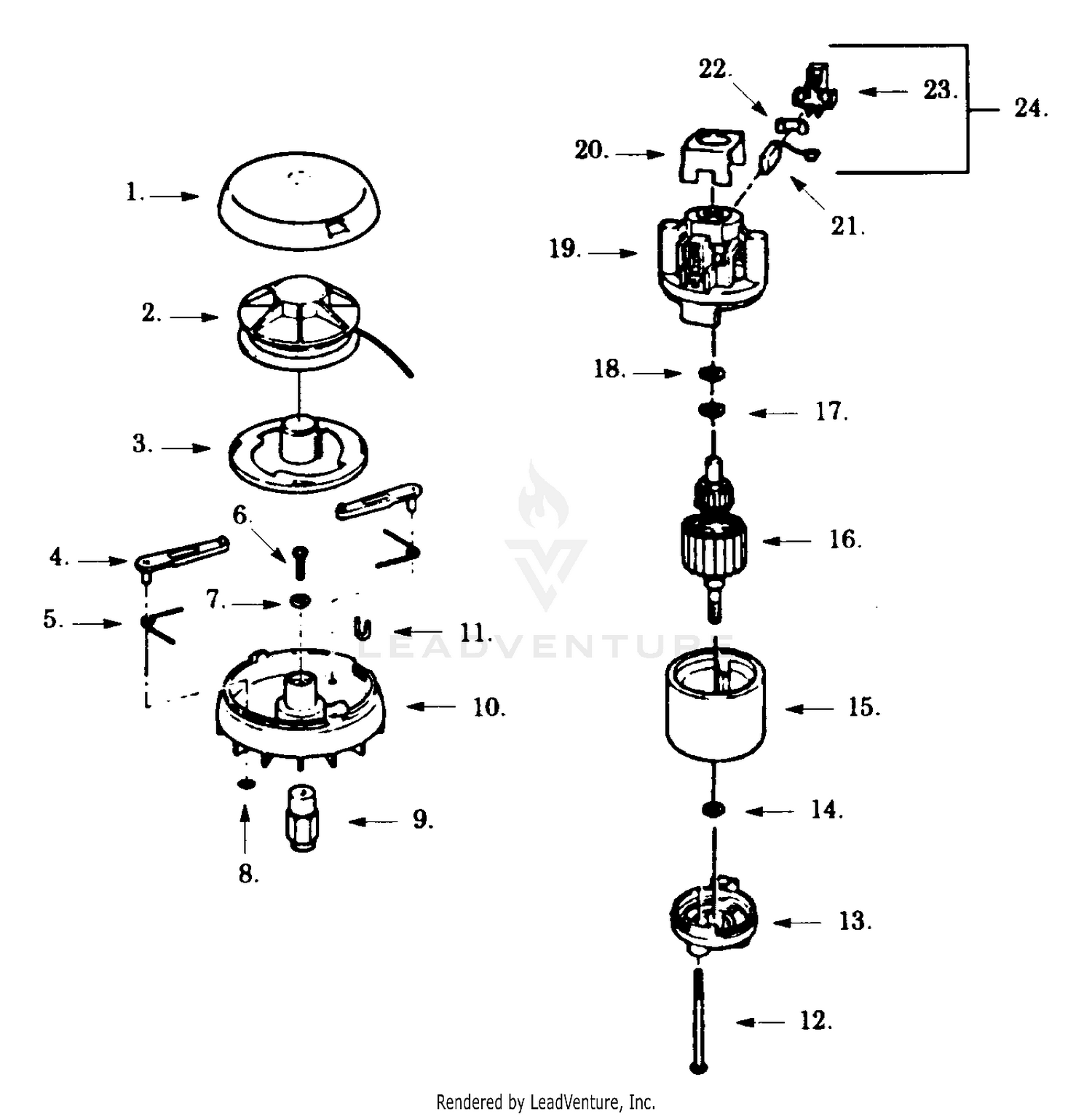

CUTTING HEAD ASSEMBLY
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 119-4162 | SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 1 | 534899400 | Cover Price: $3.33 |
| 2 | 534907901 | Spool & Line Price: $3.33 |
| 2 | 98-8779-01 | HITCH-TRAILER Price: $59.59 |
| 3 | 534839100 | Cam Price: $3.33 |
| 4 | 32128-21 | NUT-HF Price: $0.39 |
| 4 | 534899200 | Arm Price: $3.33 |
| 5 | 534908500 | Spring Price: $5.99 |
| 5 | 99-4543-01 | TONGUE-TRAILER Price: $215.46 |
| 6 | 534136401 | Screw Price: $1.99 |
| 7 | 534908700 | Washer Price: $1.99 |
| 8 | 534400700 | Push Nut Price: $1.99 |
| 9 | 534900301 | Drive Adapter Price: $6.99 |
| 10 | 534980301 | Housing Head Price: $3.33 |
| 11 | 534900200 | Line Shield Price: $3.33 |
| 12 | 534228703 | Screw Price: $3.33 |
| 13 | 534207101 | Endbell Ass'y. (Drive) Price: $3.33 |
| 14 | 534228800 | Washer Price: $1.99 |
| 15 | 534227004 | Field Ass'y. Price: $22.99 |
| 16 | 534767701 | Armature Ass'y. Price: $34.99 |
| 17 | 534228802 | Washer Price: $0.99 |
| 18 | 534238903 | Washer Price: $1.99 |
| 19 | 534227501 | Endbell Ass'y. (Brush) Price: $3.33 |
| 20 | 534226000 | Insulator Price: $3.33 |
| 21 | 534227800 | Brush Price: $3.16 |
| 22 | 534228000 | Brush Spring Price: $1.99 |
| 23 | 534227700 | Brush Holder Price: $3.33 |
