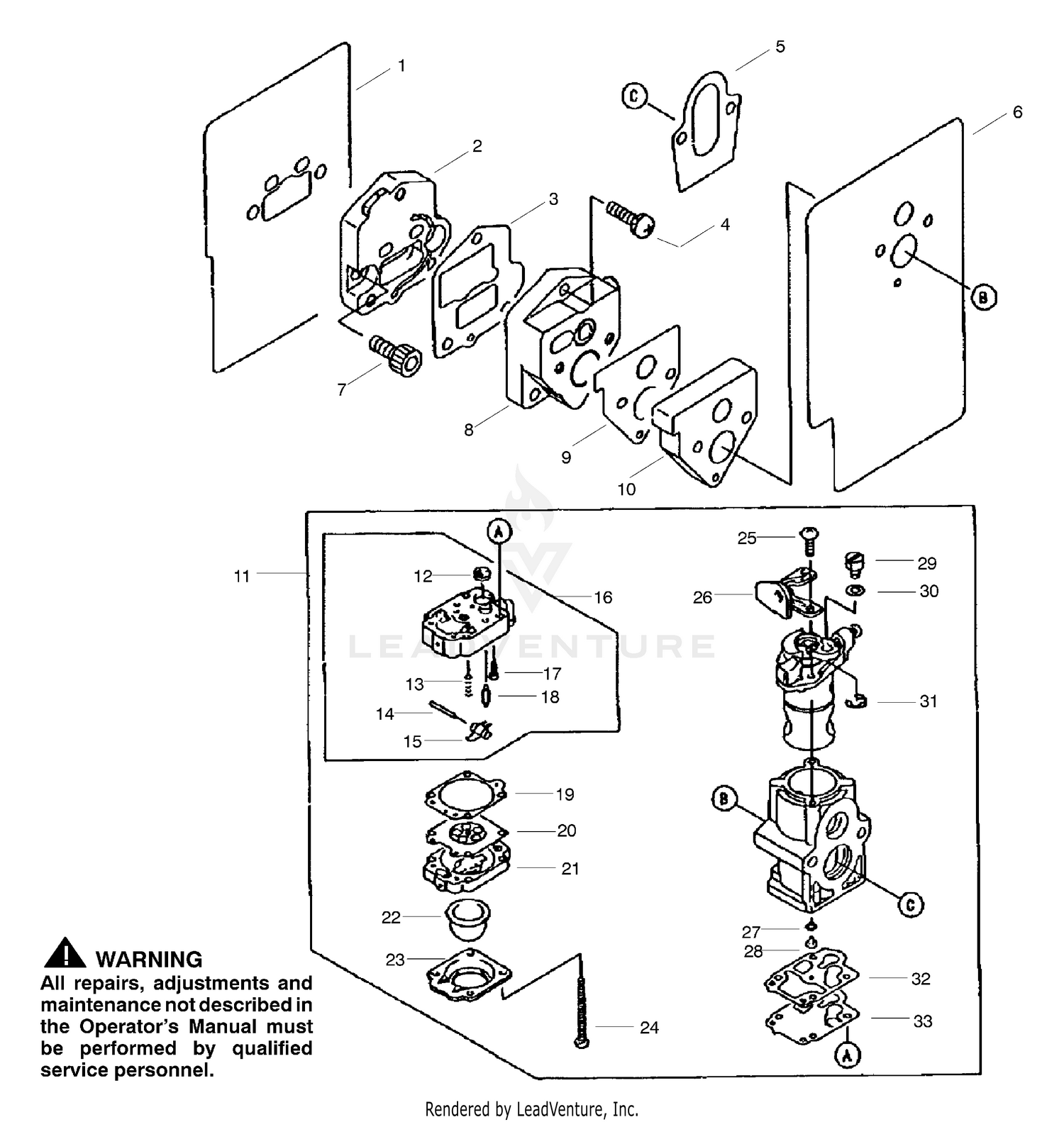

Carburetor Assembly
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 110612059 | Gasket Price: $3.99 |
| 1 | 125-3486 | GROOMER SHAFT ASM Price: $383.56 |
| 2 | 132712120 | Plate Price: $19.99 |
| 2 | 140-5606 | SPACER-SS This part replaces 107-4430. Price: $2.49 |
| 3 | 110602485 | Gasket Price: $3.99 |
| 3 | 140-5580 | BLADE-GR GROOMER, TWIN TIP (0.032") This part replaces 121-9531. Price: $3.65 |
| 4 | 233B0520 | Screw Price: Call Us |
| 5 | 110602492 | Gasket Price: $2.99 |
| 6 | 110612064 | Gasket Price: $4.99 |
| 7 | 120S0616 | Bolt-Socket Price: Call Us |
| 8 | 120212051 | Assy-Reed Valve Price: $54.99 |
| 9 | 110602486 | Gasket Price: $2.99 |
| 10 | 920262349 | Spacer Price: $3.99 |
| 11 | 150032793 | Assy-Carburetor Price: $139.99 |
| 12 | 140432051 | Filter Price: $2.99 |
| 13 | 921442038 | Spring-Recoil This part replaces 530058415. Price: $19.99 |
| 14 | 920432094 | Pin Price: $1.99 |
| 15 | 131682051 | Lever Price: $4.99 |
| 16 | 161602101 | Body Price: $22.99 |
| 17 | 920092336 | Screw Price: $1.99 |
| 18 | 160302078 | Valve-Float Price: $11.99 |
| 19 | 110602111 | Gasket Price: $2.99 |
| 20 | 430282090 | Diaphragm Price: $17.99 |
| 21 | 530058456 | Body Price: $99.99 |
| 22 | 490432067 | PRIMING PUMP This part replaces 530058457. Price: $6.99 |
| 23 | 530058458 | Cover-Primer Pump Price: $11.99 |
| 24 | 530058459 | Screw Price: $3.99 |
| 25 | 920092277 | Screw "A" This part replaces 530058438. Price: $1.99 |
| 26 | 530058437 | Bracket Price: $32.99 |
| 27 | 920552147 | O-ring Price: $3.99 |
| 28 | 920632365 | Jet-Main, #52 Price: $7.99 |
| 29 | 210832073 | Arm This part replaces 530058439. Price: $3.99 |
| 30 | 922002074 | Washer This part replaces 530058440. Price: $1.99 |
| 31 | 530058441 | Ring-Snap Price: $2.99 |
| 32 | 110612054 | Gasket Price: $4.99 |
