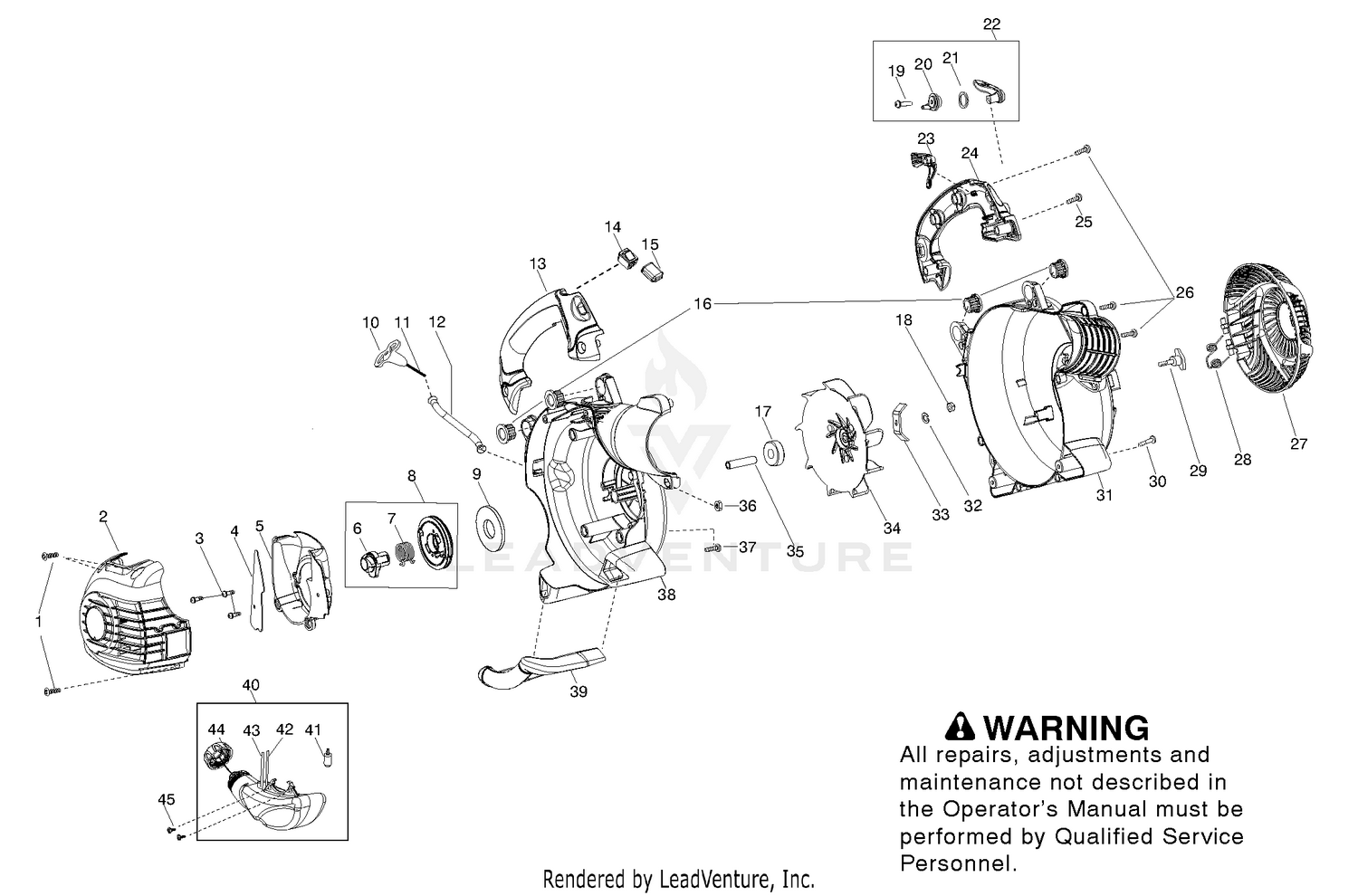

Starter
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530015814 | Screw Price: $1.49 |
| 2 | 545180501 | Assy - Engine Cover Price: $12.99 |
| 3 | 530015880 | Screw Price: $1.99 |
| 4 | 545134001 | Shield - Baffle Price: $3.99 |
| 5 | 545099101 | Baffle Price: $6.99 |
| 6 | 545052401 | Hub Price: $1.99 |
| 7 | 545052501 | Spring - Pulley Price: $8.99 |
| 9 | 545008014 | KIT STARTER SPRING This part replaces 545054901. Price: $3.99 |
| 10 | 530054834 | Handle - starter Price: $1.99 |
| 11 | 545050416 | Kit - Rope Price: $4.99 |
| 12 | 545107101 | Tube - Starter Rope Price: $5.99 |
| 13 | 545147801 | Handle - RH Price: $9.99 |
| 15 | 545128201 | Protector - Switch Price: $1.99 |
| 16 | 545137701 | Grommet Price: $2.99 |
| 17 | 545099001 | Bearing Price: $3.99 |
| 18 | 530626605 | Nut Price: $1.99 |
| 19 | 530015814 | Screw Price: $1.49 |
| 20 | 545111501 | Rachet - Cruise Control Price: $4.99 |
| 21 | 545173101 | Washer - Wave Price: $1.99 |
| 22 | 545081867 | Kit - Cruise Control Price: $6.99 |
| 23 | 545144902 | Trigger - Throttle Price: $2.99 |
| 24 | 545147901 | Handle - LH Price: $4.80 |
| 25 | 530016406 | Screw Price: $1.99 |
| 26 | 530015814 | Screw Price: $1.49 |
| 27 | 545148201 | Door -Vac Price: $11.99 |
| 28 | 545115601 | Spring - Vac Door Price: $2.99 |
| 29 | 545144501 | Knob - Blower Price: $2.99 |
| 30 | 530015940 | Screw - Vac Handle Price: $1.99 |
| 32 | 530092322 | Washer - Lock Price: $1.99 |
| 33 | 545120701 | Blade - Mulch Price: $6.99 |
| 34 | 545113601 | Assy - Impeller Price: $4.99 |
| 35 | 545113701 | Spacer - Flywheel Price: $2.99 |
| 36 | 530015197 | Nut - Blower Knob Price: $1.99 |
| 37 | 530016386 | Screw Price: $5.99 |
| 39 | 545148001 | Handle - Vac Price: $7.99 |
| 41 | 530095646 | Assy - Fuel Pickup Price: $2.69 |
| 42 | 530069247 | Kit - Fuel Line (carb/purge) Price: $3.69 |
| 43 | 530069216 | Kit - Fuel Line (tank/purge) Price: $3.99 |
| 44 | 530057973 | Assy - Fuel Cap w/retainer Price: $7.99 |
| 45 | 530016445 | Screw - Fuel Tank Retainer Price: $1.99 |
