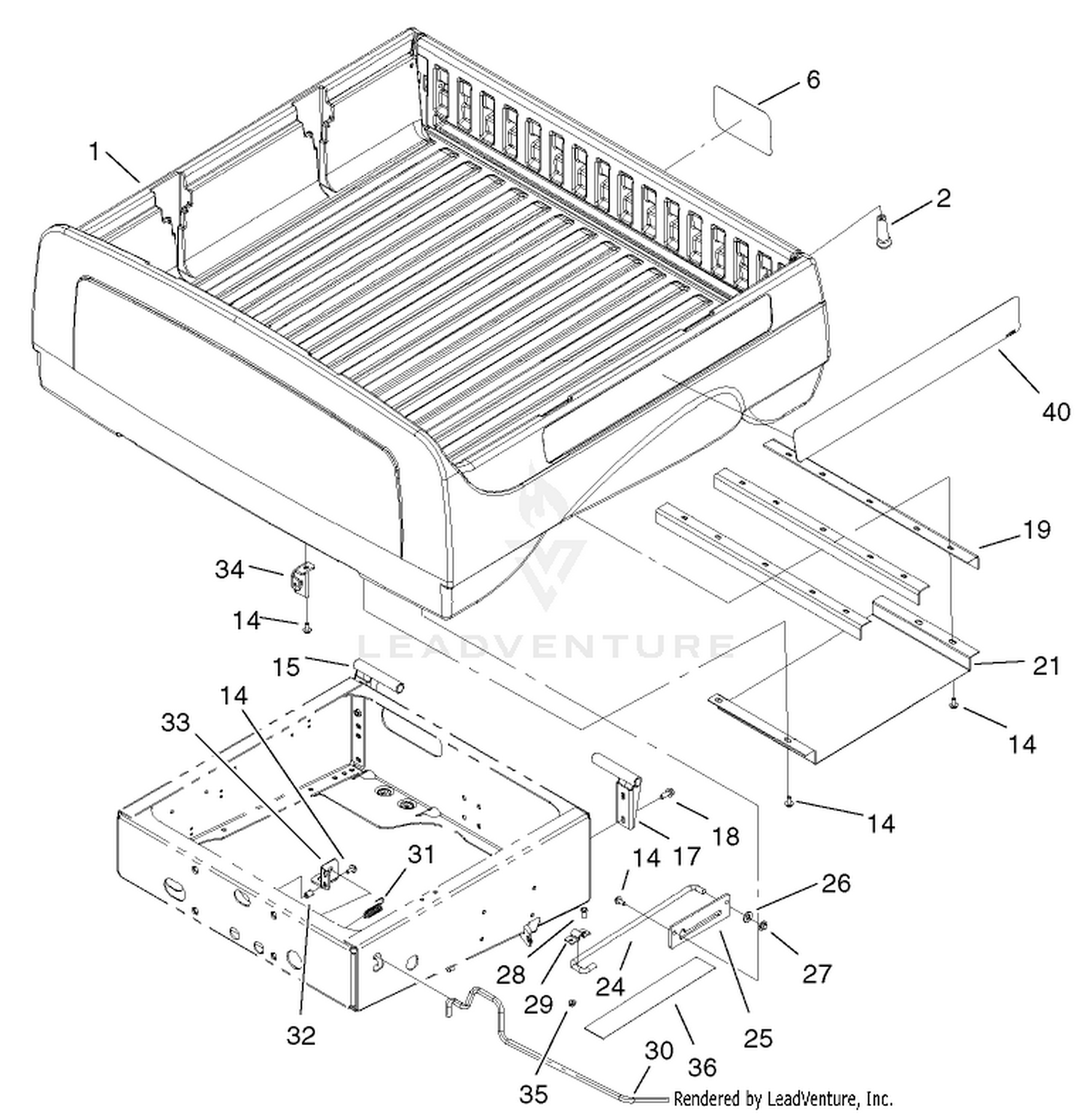

| Ref | Part Number | Description |
|---|
| 2 |
99-7984 |
KNOB-SOFT GRIP, PUSH-ON Price: $11.31 |
| 6 |
104-7213 |
DECAL This part replaces 99-7337. Price: $25.80 |
| 14 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 15 |
99-7309-03 |
RH PIVOT BRACKET ASM Price: $74.22 |
| 17 |
99-7308-03 |
LH PIVOT BRACKET ASM Price: $74.22 |
| 18 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 19 |
99-7864-03 |
BRACE-BOX Price: $30.83 |
| 21 |
99-7870 |
SHIELD-HEAT Price: $62.77 |
| 24 |
99-7895 |
ROD-PROP Price: $44.20 |
| 25 |
99-7894 |
BRACKET-ROD, PROP Price: $30.60 |
| 26 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 27 |
32112-14 |
NUT-PUSH Price: $2.19 |
| 28 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 29 |
99-7896 |
BRACKET-U, PROP ROD Price: $11.45 |
| 30 |
99-7745 |
ROD-LATCH Price: $49.64 |
| 31 |
5-7290 |
SPRING-TENSION Price: $23.15 |
| 32 |
32148-7 |
NUT-CLINCH Price: $0.98 |
| 33 |
99-7744-03 |
BRACKET-LATCH Price: $44.56 |
| 34 |
99-7742-03 |
HOOK-LATCH, RH Price: $33.19 |
| 35 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 36 |
104-6859 |
SHIELD-HEAT Price: $31.28 |
